ESAB FABRICATOR 141i
Manual 0-5448 4-13 OPERATION
4.10 Setup for MIG (GMAW) Welding with Gas Shielded MIG Wire
A. Select MIG mode with the process selection control. (Refer to Section 4.01 for further information)
B. Connect the MIG Gun Polarity Lead to the positive welding terminal (+). If in doubt, consult the electrode wire manufacturer.
Welding current flows from the Power Source via Dinse style connectors. It is essential, however, that the male plug is
inserted and turned securely to achieve a sound electrical connection.
C. Fit the MIG Gun to the Power Source. (Refer to Section 4.02 Attaching the Fusion 140A MIG Gun).
D. Connect the work lead to the negative welding terminal (-). If in doubt, consult the electrode wire manufacturer. Welding
current flows from the Power Source via Dinse style connectors. It is essential, however, that the male plug is inserted
and turned securely to achieve a sound electrical connection.
E. Fit the flowmeter/ regulator to the shielding gas cylinder then connect the shielding gas hose from the rear of the Power
Source to the flowmeter/ regulator outlet.
F. Refer to the Weld Guide located on the inside of the wirefeed compartment door for further information.
G. Switch the LOCAL/REMOTE switch inside the
wire feed compartment to LOCAL to use the
Power Sources Wirespeed and Voltage controls.
H. Switch the MIG GUN/SPOOL GUN switch inside
the wire feed compartment to MIG GUN.
!
WARNING
Before connecting the work clamp to the work piece, make sure you have ceased feeding
wire so premature arcing will not occur.
Secure the shielding gas cylinder in an upright position by chaining it to a suitable stationary
support to prevent falling or tipping.
!
CAUTION
Loose welding terminal connections can cause overheating and result in the male plug being fused in
the terminal.
Art #
A-10362
Shielding Gas Hose Fitted
with 5/8"-18 UNF
connection
Primary Cord
Work Lead
Negative Welding
Terminal (-)
Positive Welding
Terminal (+)
MIG Gun
Polarity Lead
MIG Gun
8 pin Plug
Secure the gas cylinder
in an upright position
by chaining it to a
stationary support to
prevent falling or tipping.

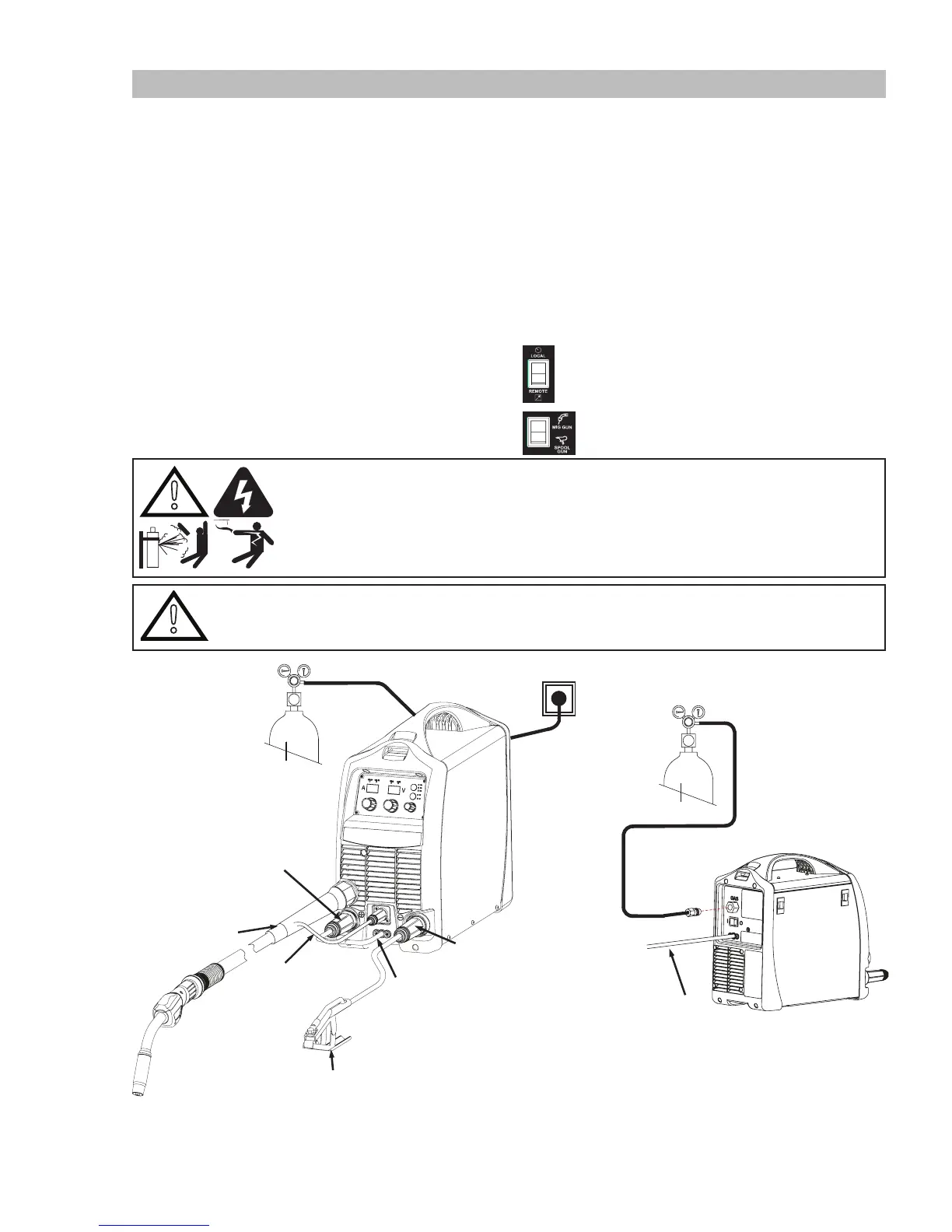

Figure 4-13: Setup for MIG Welding with Gas Shielded MIG Wire
