ESAB FABRICATOR 141i
Manual 0-5448 7-7 DISASSEMBLY PROCEDURE
7.06 ON/ OFF Switch SW1 and Power Cord Removal
!
CAUTION
Read and follow safety information in Section 6.02 before proceeding with disassembly.

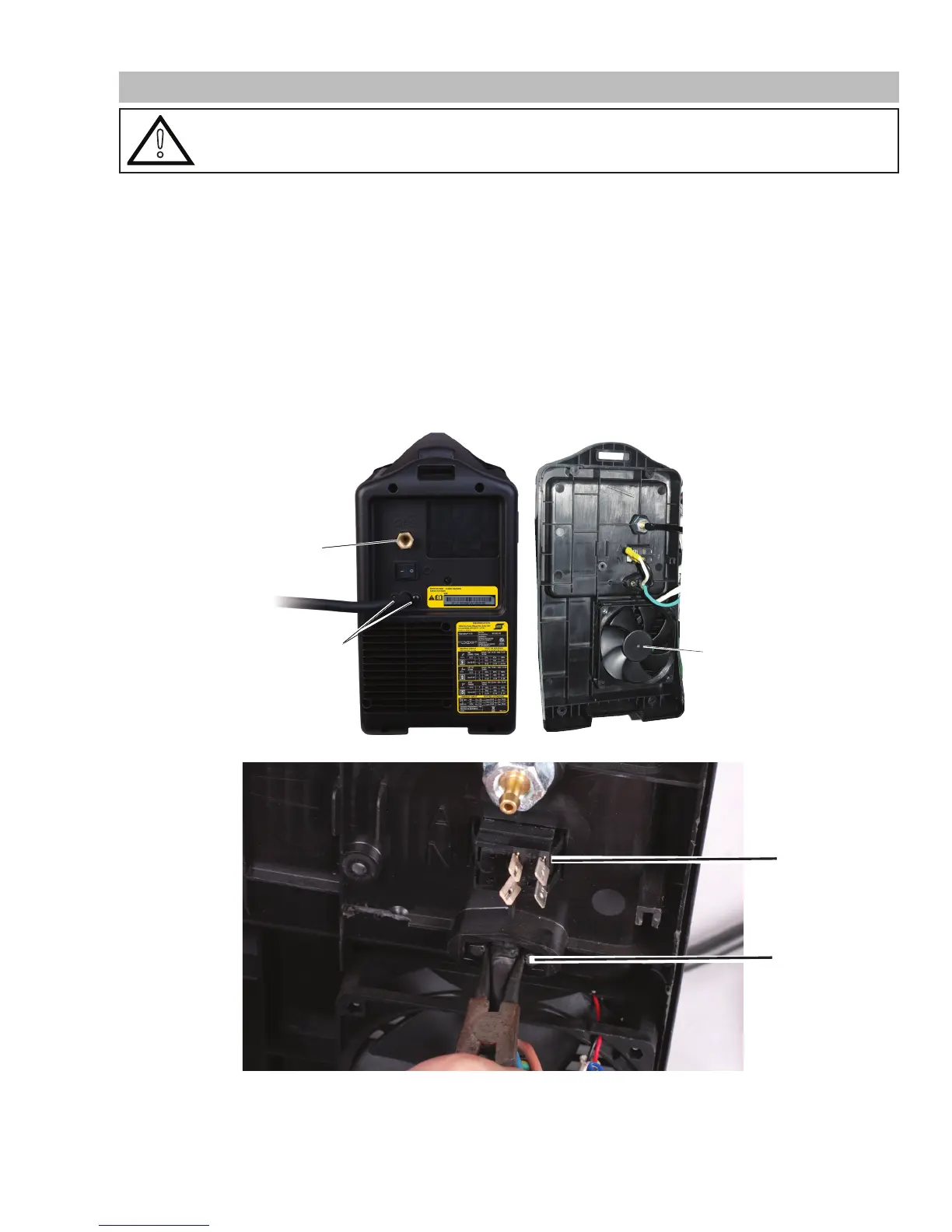

1. Gas inlet. Remove gas inlet from rear panel.
2. SW1 locking tabs
Squeeze the locking tabs and push SW1 out from the rear panel.
3. Strain relief screws
Remove the two screws from the strain relief.
4. Remove Fan.
5. Pull the Input Power Cord out. It may be necessary to use a flat blade screw driver against the strain relief
tabs, prying outward (Internal side if strain relief) to help remove the cord.
Art # A-12223
