ESAB FABRICATOR 141i
ASSEMBLY PROCEDURES 8-4 Manual 0-5448
6
Art # A-12183

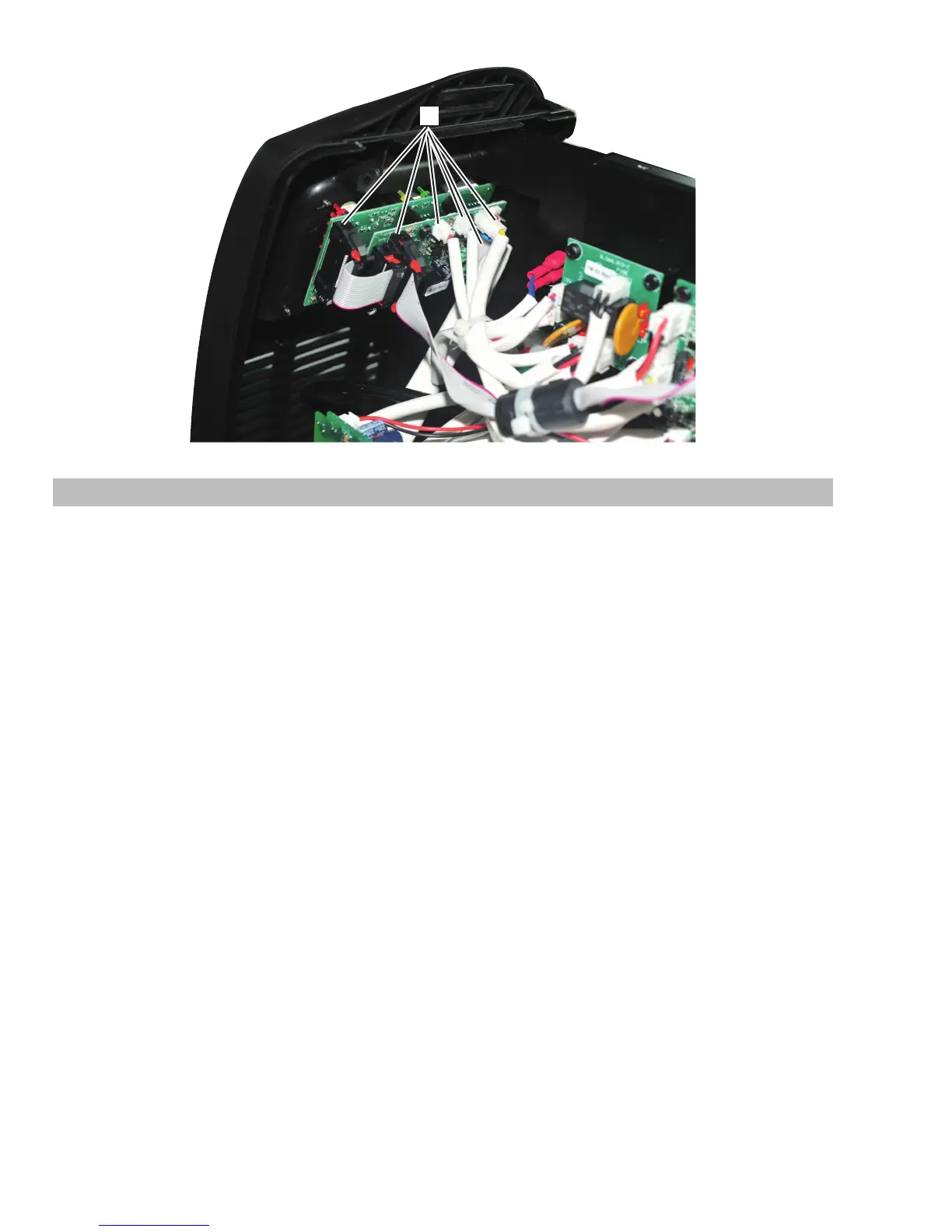

8.04 Installing Control PCB2 and Clear Protective Sheet
1. Install 4 screws.
2 Plug harness into DRIVE connector.
3. Plug harness into SOURCE connector.
4. Plug harness into CR connector.
5. Plug harness into FUNs connector
6. Plug harness into NTCs connector.
7. Plug harness into IGBT OT connector .
8. Plug harness into GUN connector.
9. Plug harness into QF/DY connector.
10. Plug harness into WVIN connector.
11 Plug harness into MB connector.
12. Plug harness into PWM connector.
13. Plug harness into IFB connector.
Verify harness connections with the system schematic to ensure all connections are correct.
14. Install clear protective sheet.
