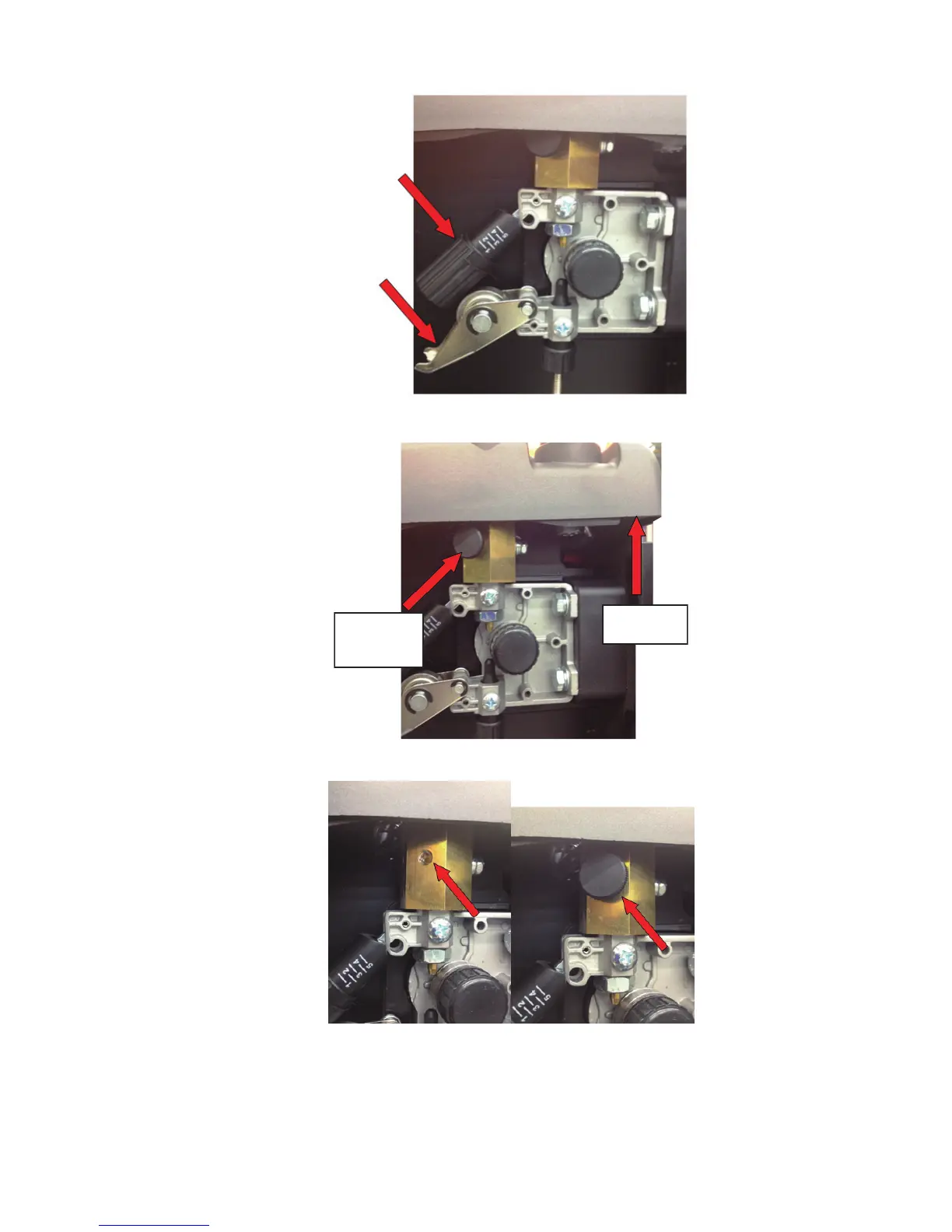

3. Open the wire compartment door and release the tension knob so the pressure arm and tension knob hang downwardly.
Art # A-11484
Pressure Arm
Tension Knob
4. Gently push the bottom of the front panel upward until the thumb screw is fully exposed.
Art # A-11485_AB
Thumb Screw
Fully Exposed
Push Upward
5. Remove damaged thumb screw and replace with new one.
Art # A-11486
6. To reassemble, reverse steps 1 through 4.
