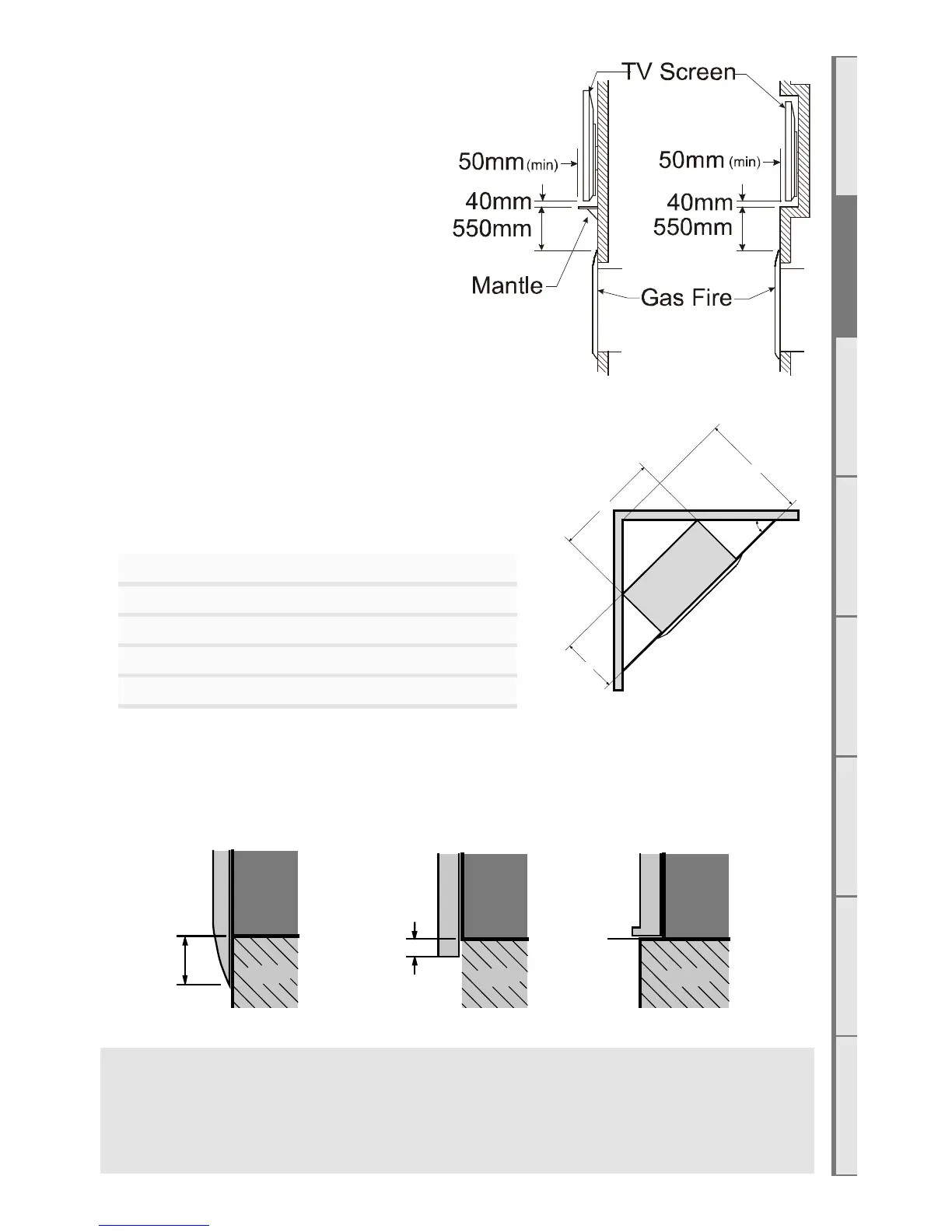

B7 Television Clearances
The following are the recommended minimum
clearances for the location of any electrical
equipment (such as Plasma TV, LCD TV, or
home theatre) above an Escea DL Series gas
fire. Use either a shelf or mantle below your
TV screen or, alternatively, you can construct
a recess to mount your TV screen into.
NOTE: The above television clearance
recommendations are to be treated as a
suggestion of a suitable installation only. It
is the responsibility of the end user to check
the installation instructions of their electrical
appliances to ensure that the location in relation
to the gas fire is suitable. Escea in no way guarantees or takes responsibility that the above installation
suggestion will be suitable for all electrical or home entertainment appliances.
B8 Corner Installations
If a cavity is to be created in a corner, the following drawing
gives the minimum sized interior wall dimensions.
Minimum corner install dimensions (mm):
DL850 DL1100
A 970 1145
B 960 1260
C 510 510
B9 Distance from Fireplace base to Fascia base
The following side-on views show the measurement from the base of the fireplace to the base of
the Fascia.
FIRE
BASE
18mm
BEVELLED
FASCIA
FIRE
BASE
0mm
INSET
FASCIA
FIRE
BASE
5mm
LITE
SQUARRED
45º
C
B
A
END OF SECTION B
By the end of this section, you should have:
□ A framed, but un-lined, cavity sized to suit your fascia and ue conguration
□ Provision for sucient access to the powerue for future servicing
