E10 Log Fuel Bed Installation
NOTE: There are several types of fuel bed for the DL850 and DL1100. Please check which fuel bed
you have been supplied with and follow the installation instructions for that fuel bed carefully.

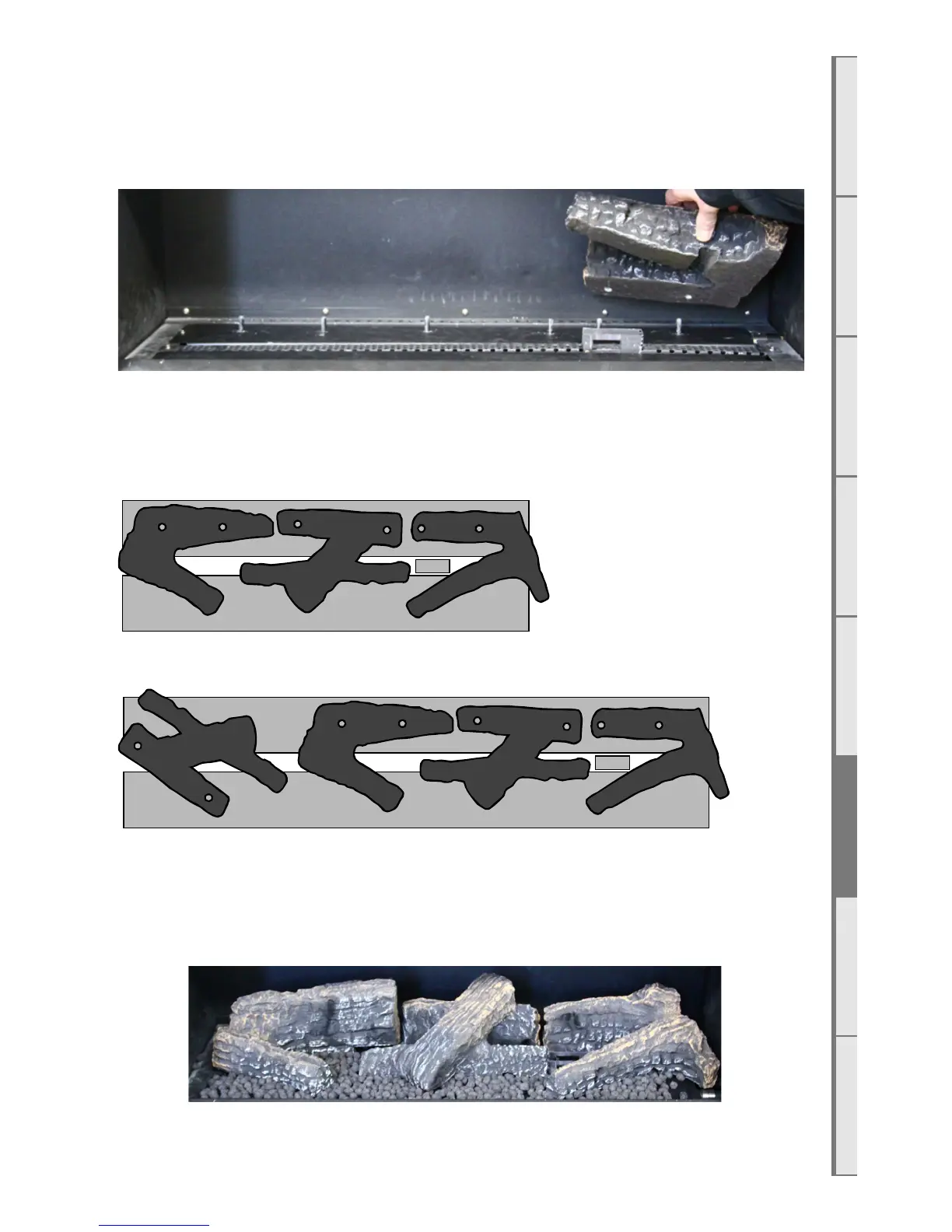

Starting at the right hand side, place the ‘v’ shaped log in place, using the pins on the rear burner
to line up with the holes in the base of the log. Ensure the port pattern follows the log shape:
Place the other logs using the same method as above, using the diagrams below to ensure
correct log placement.
DL1100
Pour the supplied ‘embers’ into all the visible gaps around the logs, being careful to avoid letting
any fall down between the pilot head, spark electrode, and pilot guard. If possible keep the
area where the pilot hood flame is directed at the burner ports clear. Cover the entire exposed
burner top with a single layer of ‘embers’.
Replace the glass and the three glass retainers.
