NOTE: Improper positioning of logs may create carbon build-up and will alter the unit’s performance.
Malfunctioning due to improper log placement is not covered under warranty.

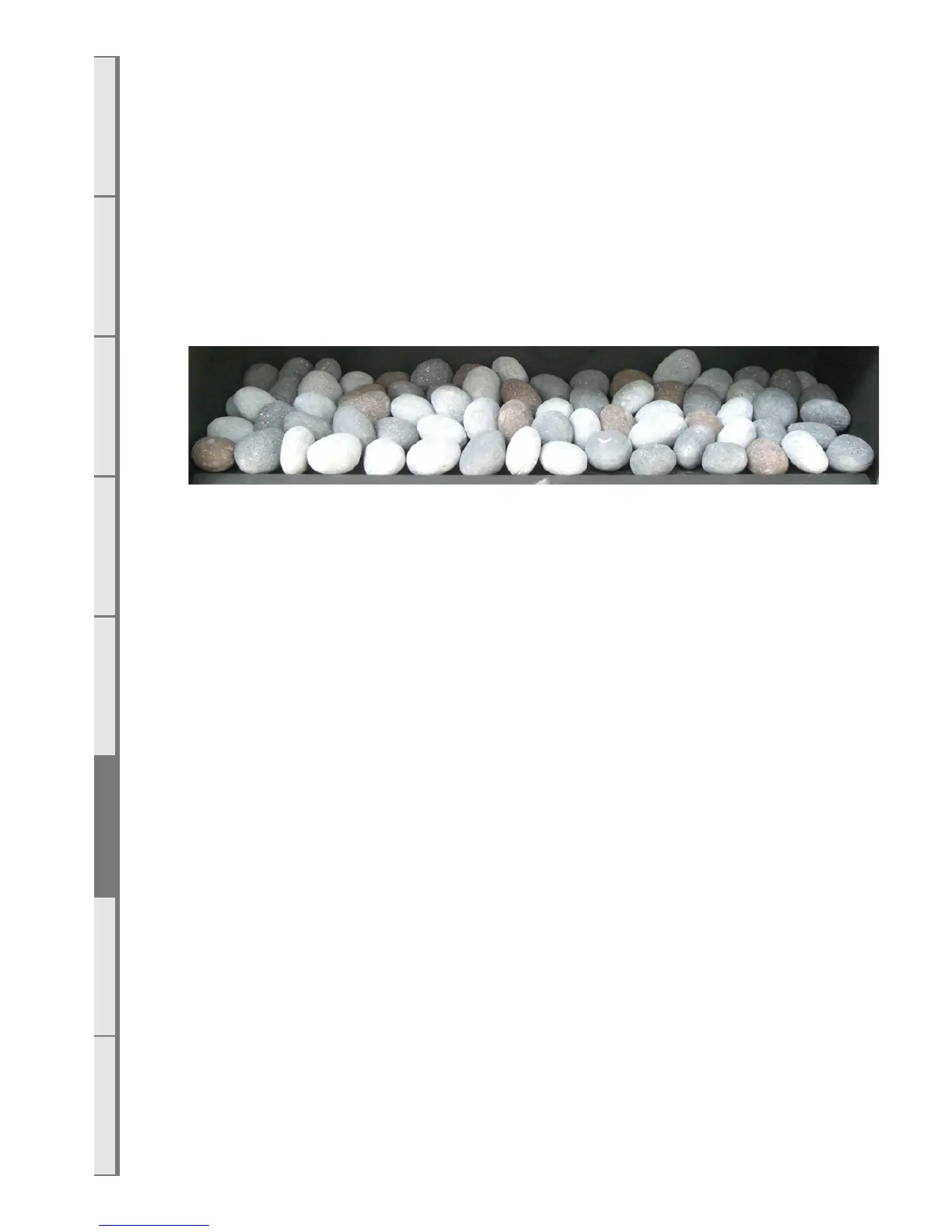

E11 River Stone or Coal (Pebbles) Fuel Bed Installation
NOTE: There are several types of fuel bed for the DL850 and DL1100. Please check which fuel bed
you have been supplied with and follow the installation instructions for that fuel bed carefully.
Place all the River Stones or Coals in a single layer atop the burners, covering the entire area.
Be careful to avoid letting any fall down between the pilot head, spark electrode and pilot guard,
and if possible keep the area where the pilot hood flame is directed at the burner ports clear to
aid reliable ignition.
Replace the glass and the three glass retainers.
NOTE: Improper positioning of Stones/Coals/Pebbles may create carbon build-up and will alter the
unit’s performance. Malfunctioning due to improper Stone/Coal/Pebble placement is not covered
under warranty.
E12 Crystalight Fuel Bed Installation
NOTE: There are several types of fuel bed for the DL850 and DL1100. Please check which fuel bed
you have been supplied with and follow the installation instructions for that fuel bed carefully.
Place all the Crystalight pieces in a SINGLE LAYER atop the burners, covering the entire area.
Be careful to avoid letting any fall down between the pilot head, spark electrode and pilot guard,
and if possible keep the area where the pilot hood flame is directed at the burner ports clear.
Replace the glass and the three glass retainers.
NOTE: Improper positioning of Crystalight may create carbon build-up and will alter the unit’s
performance. Malfunctioning due to improper Crystalight placement is not covered under warranty.
E13 Crystalight and Driftwood Fuel Bed Installation
Install the Cystalight as per E12 on page 30. Once the Crystalight has been evenly spread
across the base of the firebox place the supplied driftwood on top of the Crystalight as shown:
