Escea DL850 - E15 Home Automation Setup

B
A C D E F G SERVICE
32
□ Remove the operating pressure test point screw. Connect manometer tube and measure
pressure with heater running on full (both burners running) and with all the other gas appliances
in the building running.
□ If the appliance has not had a gas type conversion on installation, then the appliance
regulator pressure has been factory set to 1.0kPa. Please check that the operating pressure is
exactly as listed and if not, adjust the screw in the centre of the regulator until the pressure is
correct.
□ Replace operating test point screw and leak test both test points.
Operating Pressures Propane Natural Gas ULPG
DL850
Minimum inlet pressure 2.75kPa 1.13kPa 2.75kPa
Maximum inlet pressure 5.0kPa 5.0kPa 5.0kPa
Operating pressure 2.30kPa 1.0kPa 2.60kPa
DL1100
Minimum inlet pressure 2.75kPa 1.13kPa 2.75kPa
Maximum inlet pressure 5.0kPa 5.0kPa 5.0kPa
Operating pressure 2.30kPa 1.0kPa 2.30kPa
E15 Home Automation Setup

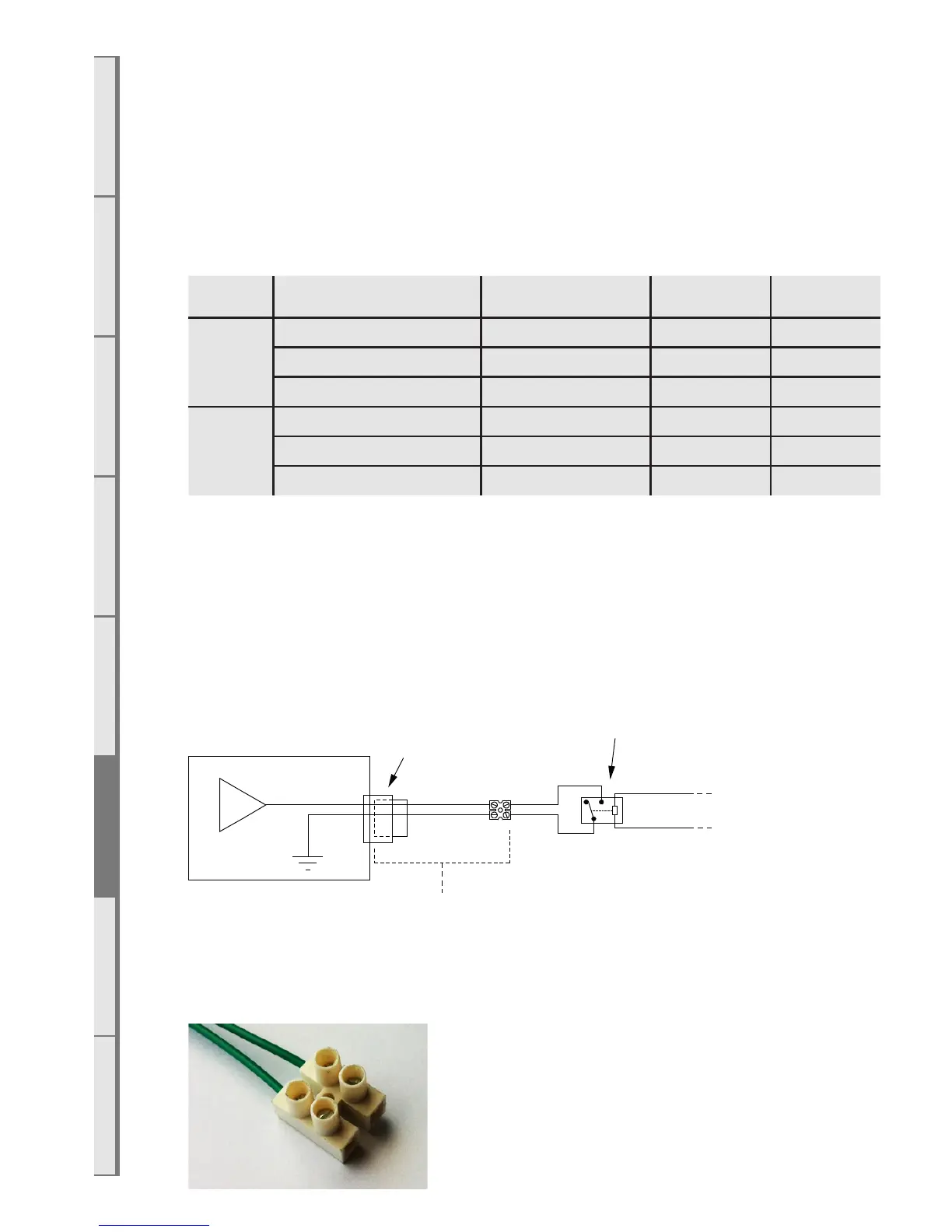

Escea D-Series fireplaces have a simple interface for connection to a home automation system.
This allows the fireplace to be woken up, started, and then shut down. The “Close to Wake”
connection (shown below) is essentially taking one of the 3.3 volt DC pins on the fireplace
microcontroller and shorting it to ground.
In order to isolate the fireplace from the automation system, a relay needs to be used (as
shown). This allows you to keep the fireplace’s 3.3V supply isolated.
µ
Terminal block
Connector
on fireplace
Fireplace
Connector and terminal
block supplied by Escea
+3.3VDC
From Automation system
Required relay
The home automation connection can be found inside the DL850 and DL1100 electronic tray
(for access instructions see section E2). The socket is shown to the right and can be identified
by green wires.
