Escea DL850 - Flue Configuration (If more than 4 m flue length is required)

B
A C D E F G SERVICE
16
D2 Flue Configuration (If more than 4m flue length is required)

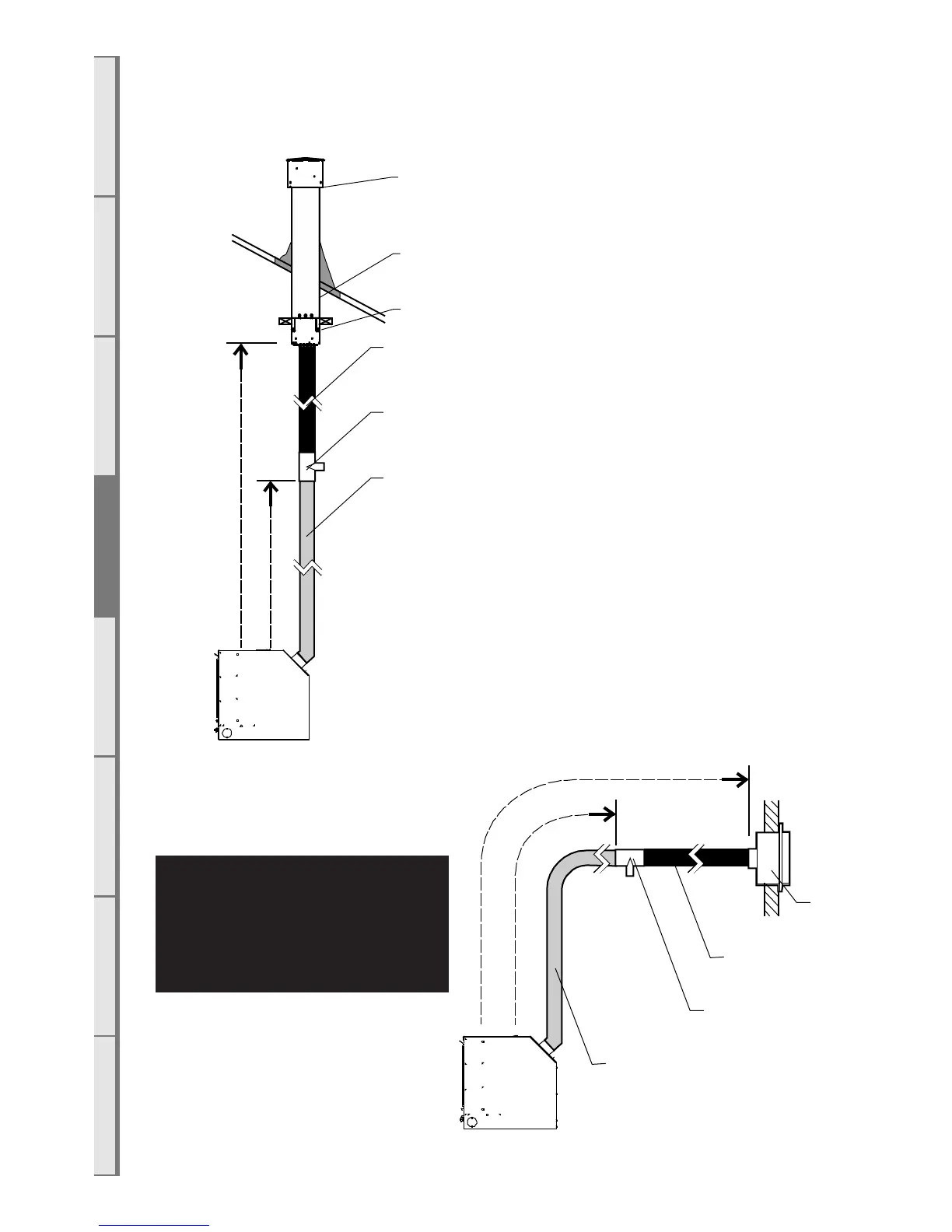

If your flue system is greater than 4m long (as shown in diagrams below), then a flexible flue
with condensate trap and rigid PolyPro tube flue lengths is required.
For further information and
detail on PolyPro (Rigid) flue
and condensate traps, see the
documentation supplied with the
flue components.
4m
ESCEAWALL
TERMINAL
12m MAX
Ø80mm / Ø100mm
PP Tube
Ø100mm
Condensate Trap
Ø80mm / Ø100mm
Flexible Flue
4m
12m MAX
UVP Fan Unit
1.2m F-F Liner
UVP Cowl
Ø80mm / Ø100mm
Flexible Flue
Ø100mm
Condensat
e Tr
ap
Ø80mm / Ø100mm
PPTube
