E14 Checking the Operating Pressure
WARNING: The regulator that is supplied with the fire MUST NOT BE REMOVED. Removal
of the regulator, or replacing it with one not intended for use with an Escea fire, will void the
limited appliance warranty.
Check the operating pressure at the regulator located at the front RH corner of the appliance.
This is best done before the fascia panels have been fitted to avoid fascia damage. A pressure
test point is available for the operating test pressure (as shown below).

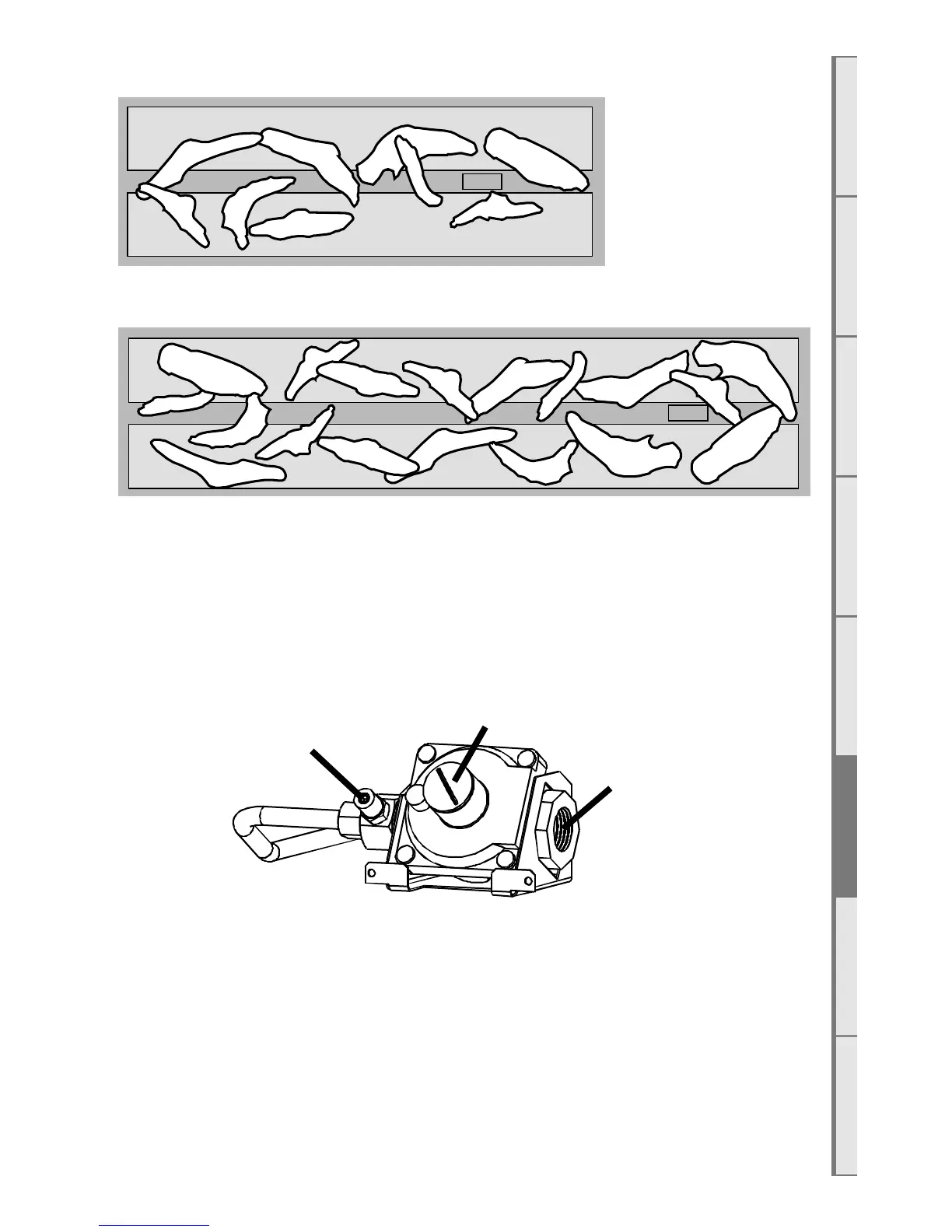

A = Operating Pressure test point
B = Pressure adjustment screw (To access first remove metal cap)
C = Inlet gas connection ( ½” Female BSPT)
□ Check the inlet pressure to the appliance. Attach manometer tube to the first test point
upstream of the appliance (typically at the gas utility meter or auto change device for a propane
bottle station).
□ Run the heater on full (both burners running) and measure inlet pressure with all the other
gas appliances in the building running. If pressure does not fall within the maximum or minimum
pressures listed on the table below then reassess installation pipe size or upstream regulator
settings.
