Installing the Appliance
E1 Installation
NOTE: Ensure the wall has been lined and finished (plastered/painted/covered) before starting the
appliance install. Plug the powerflue electrical cable into the appliance in the back right hand side.
With the appliance electrical cord plugged into the outlet in the cavity, carefully place the
appliance on the cavity base and push it into the cavity. Bring the gas connection through the
outer shell of the appliance and connect it to the regulator on the bottom right hand side of the
appliance. The gas pipe should have already been tested as per section C on page 12.

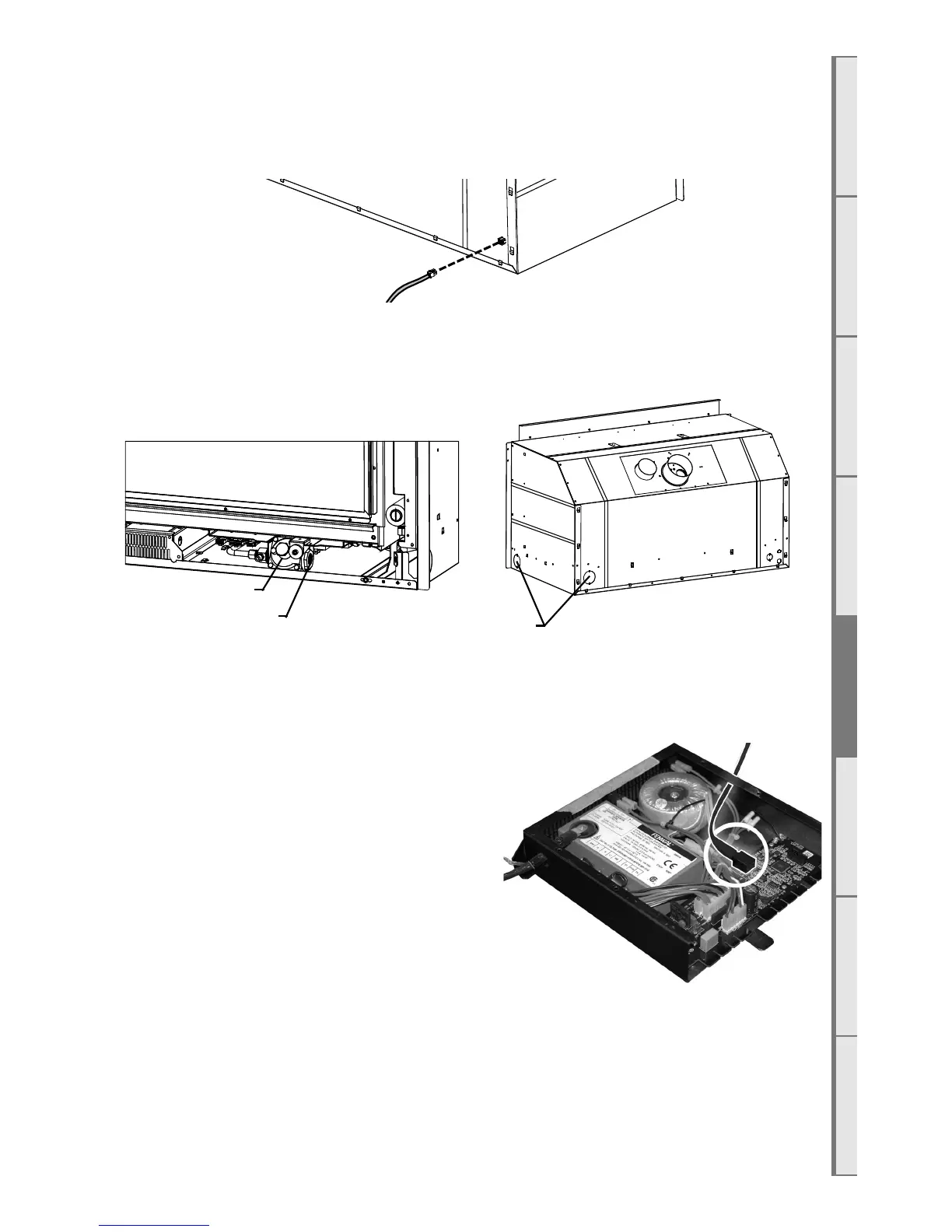

Gas pipe entry positions
Regulator
Inlet gas connection
(Grommet)
(Plug)
Installer to swap plug and
grommet if required
NOTE: If using rear entry for gas pipe (shown above), re-use the plug from the side entry position.
NOTE: The regulator that is supplied with the fire MUST NOT BE REMOVED. Removal of the
regulator, or replacing it with one not intended for use with an Escea fire, will void the limited
appliance warranty.
E2 Connecting the Network Cable
If a network cable is being installed for a wired
connection to an internet router/network (as per
Section C2 on page 12) then bring the cable
through the chassis as described earlier and attach it
to the correct socket inside the electronic tray.
Remove the electronic tray by unscrewing the two
screws at the front and pulling the tray forward and
over the lip in the front of the chassis. Unscrew the
four screws in the top and remove the lid. Bring the
network cable through the side of the tray and plug it into the network socket. Replace the lid
and electronic tray by reversing the steps above. Ensure the network cable does not interfere
with the pressure switch hoses beneath the firebox and does not rest against the firebox bottom
surface.
E3 Connecting the Flue
Remove the lid of the appliance by removing the two screws on either side of the top front of
the appliance.
