D3 Installing the Horizontal Powerflue Wall Terminal Option
The horizontal powerflue wall terminal must be
installed in the correct orientation. This allows
for the correct operation of the flue system and
prevents the ingress of water.
The horizontal powerflue wall terminal must
be weathertight when installation is complete
to prevent damage to the dwelling. It must be
installed by a suitably qualified person.

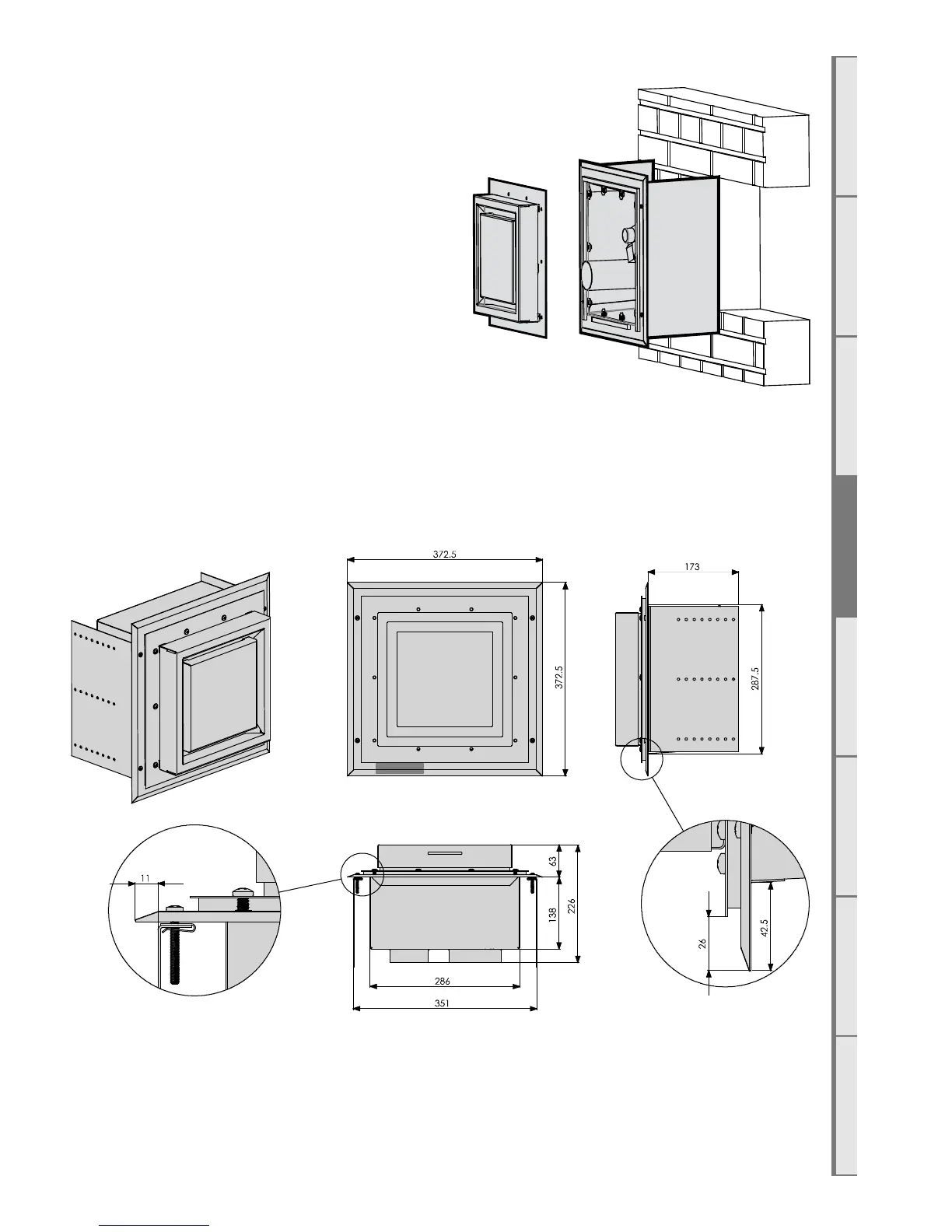

Fit the horizontal powerflue wall terminal
into the hole and fix in place, making sure
the installation is sealed appropriately to
prevent the ingress of water from outside the
wall cladding. Take notice of the label on the
termination which shows the correct orientation
of the terminal.
Note: It is the responsibility of the installer to ensure the horizontal powerflue wall terminal is installed
to all relevant building codes to ensure weather tightness.
