Installing the flue
D1 Flue Configuration (If less than 4 m flue length is required)

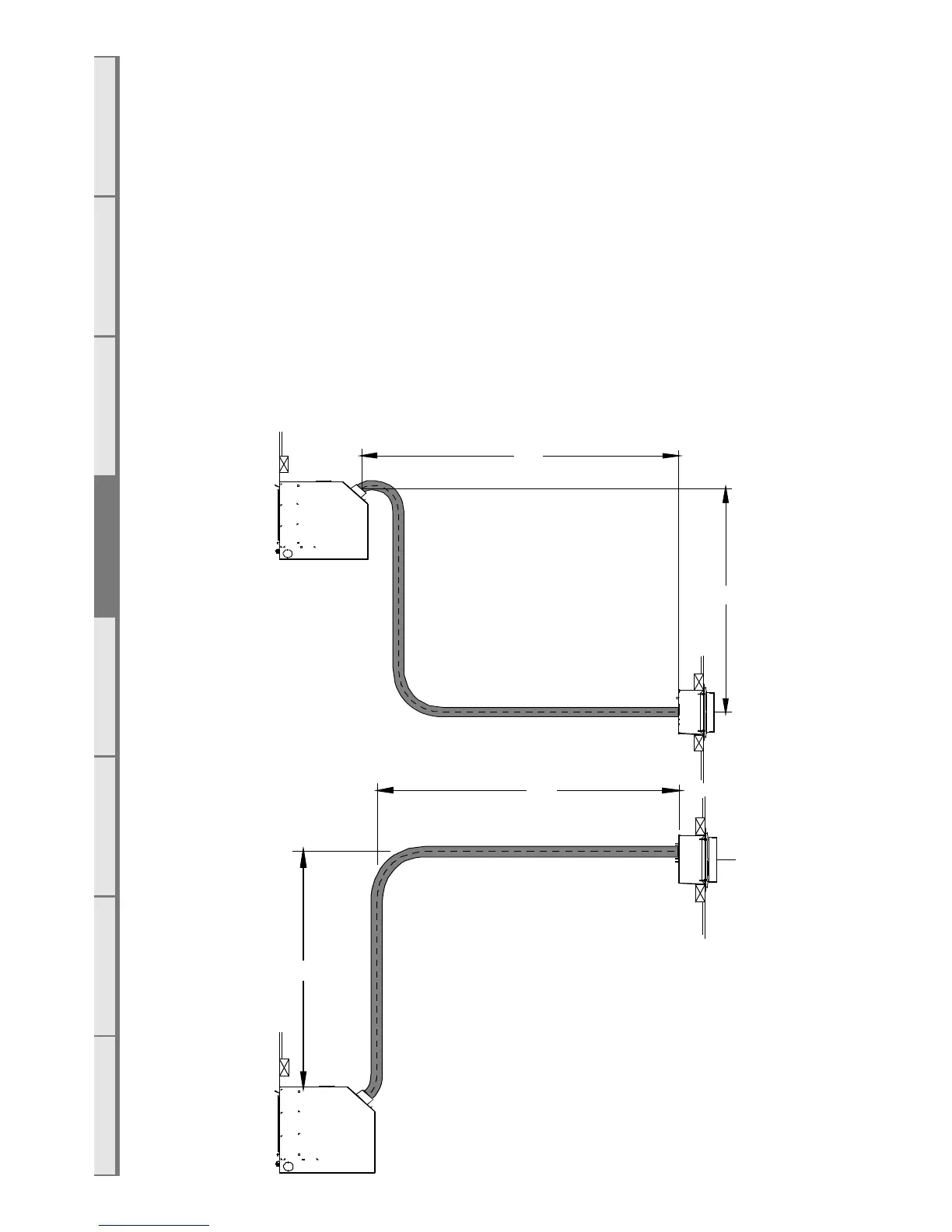

If your flue system is less than 4m long (as shown in diagrams below), then a simple aluminium
flexible flue is required. If you wish to install a longer flue run, up to 12m, see section D2 on page
16.
Horizontally Terminated: Utilises the Escea horizontal power flue enclosure kit.
The horizontal oset of the terminal can be any amount up to the total flue length listed below.
Please consult with Escea’s technical sta if your intended flue configuration steps outside of
the bounds of the flue configurations shown below.
Note: When flueing above the fire, the pipe must slope towards fire - NOT towards the terminal. Also
when flueing below the fire, the pipe must slope towards the terminal - NOT towards the fire.
X
Y
X + Y Maximum = 4m
Y Maximum = 1.5m
Y Minimum = 0m
X Maximum = 4m
X Minimum = 0m
X + Y Minimum = 0.4m
X
Y
X + Y Maximum = 4m
Y Maximum = 4m
Y Minimum = 0m
X Maximum = 4m
X Minimum = 0m
X + Y Minimum = 0.4m
