S6 Removing or Cleaning Fan
As part of regular service procedure, it is recommended that the fan is removed for cleaning.
Dust will build up on the fan rotor and in the cavity where the fan is located. This can be
removed by the service person using a hearth brush and a vacuum cleaner.
ISOLATE THE POWER AND GAS SUPPLY TO THE FIRE BEFORE COMMENCING
THIS PROCEEDURE
Step 1: Remove the inner/outer fascia, front glass, and log set as described in section S4 on page
48.

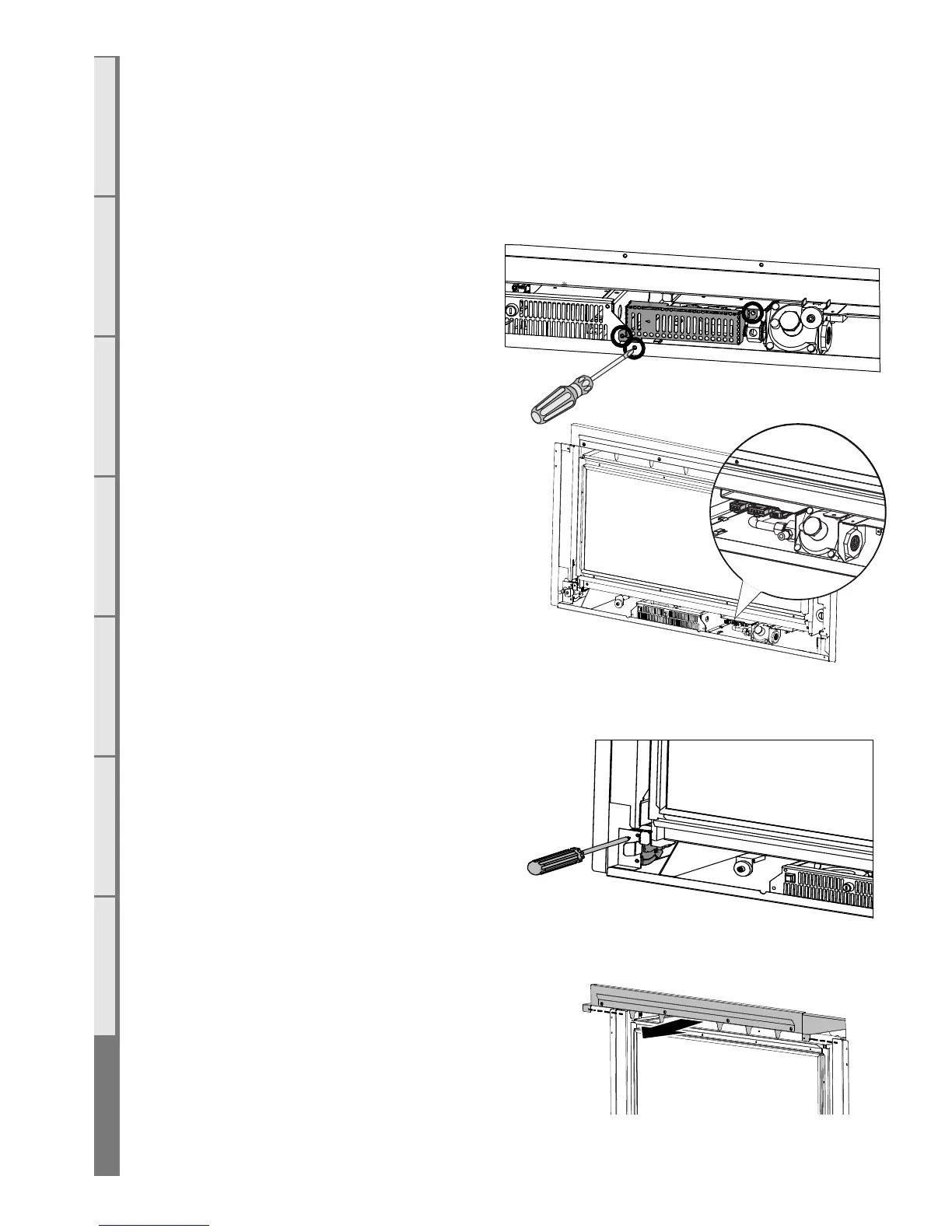

Step 2: Remove the guard covering the
electrical connections and earth lead by
removing the 3 screws.
Step 2: Disconnect the gas supply from
the fire and unplug the three wiring looms
connecting the valve and spark electrode on
the bottom right of the fire box. Unscrew
the earth strap
Step 3: Remove the 2 screws holding the
pressure switch bracket. Carefully pull the
switch out and remove the hoses from the
rear of it.
Step 5: Remove outer shell top by removing the
screws in each corner and sliding out.
To Next Page
