Step 9: Push the supplied magnet brackets into
position. Place the bottom fascia trim onto the
magnets. If this panel does not fit, adjust the
outer fascia side to side or the appliance in/out
until the trim fits well.
F3 Fitting the Squared Lite Fascia Panels
Step 1: Ensure the glass and all glass retainers are securely fitted
NOTE: If the glass gasket requires a replacement, call your nearest Escea agent who will ensure the
part is replaced with the correct type. In the event that the glass is broken by impact, purchase the
replacement from an authorised Escea agent only.

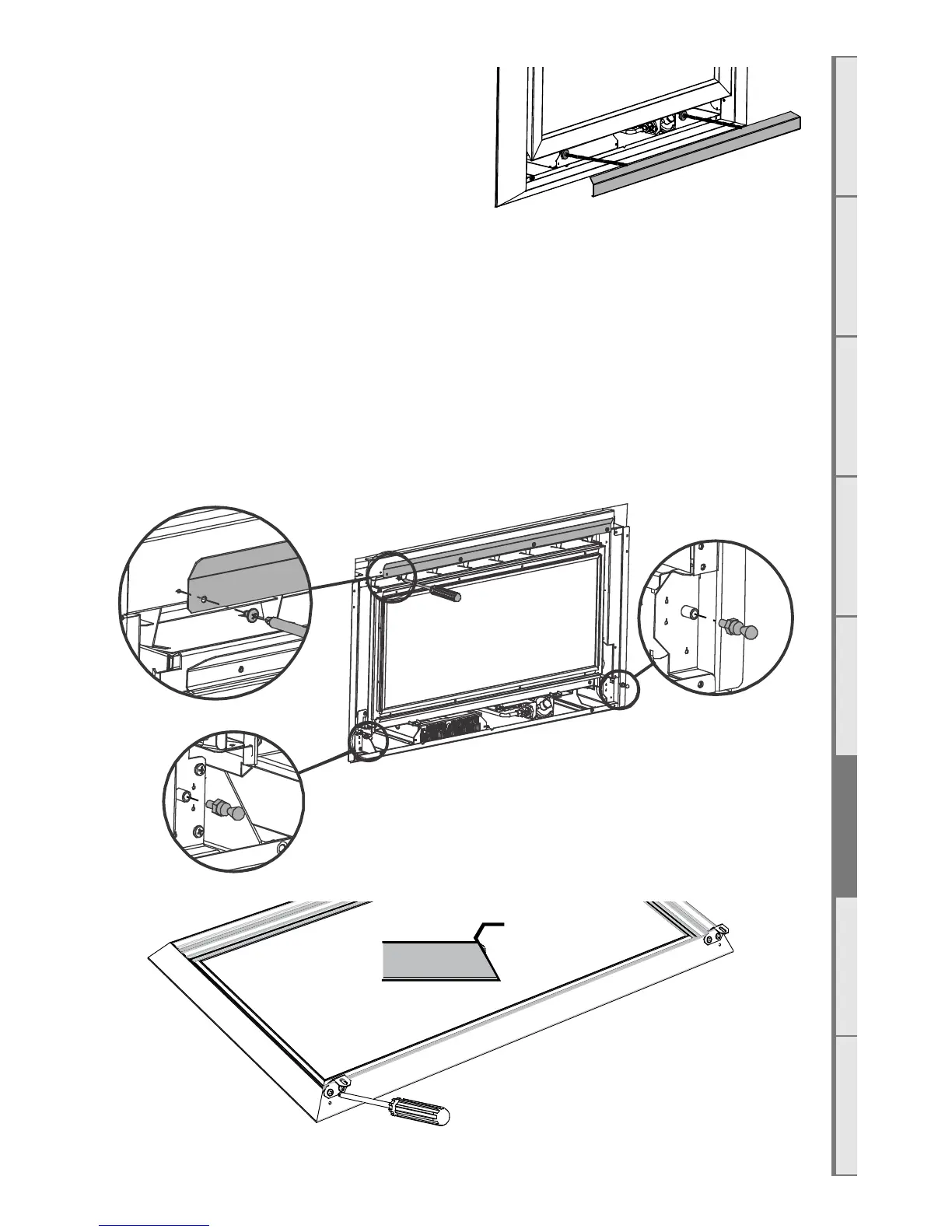

Step 2: Attach the outer fascia bracket to the top lid as shown below.
Step 3: Screw the two Outer Fascia studs into the two brackets at the bottom left and right of
the appliance as shown below.
Step 4: Attach the two inner fascia brackets as shown:
Step 5: Hang the Inner Fascia from the metal bracket on the front of the firebox.
