38

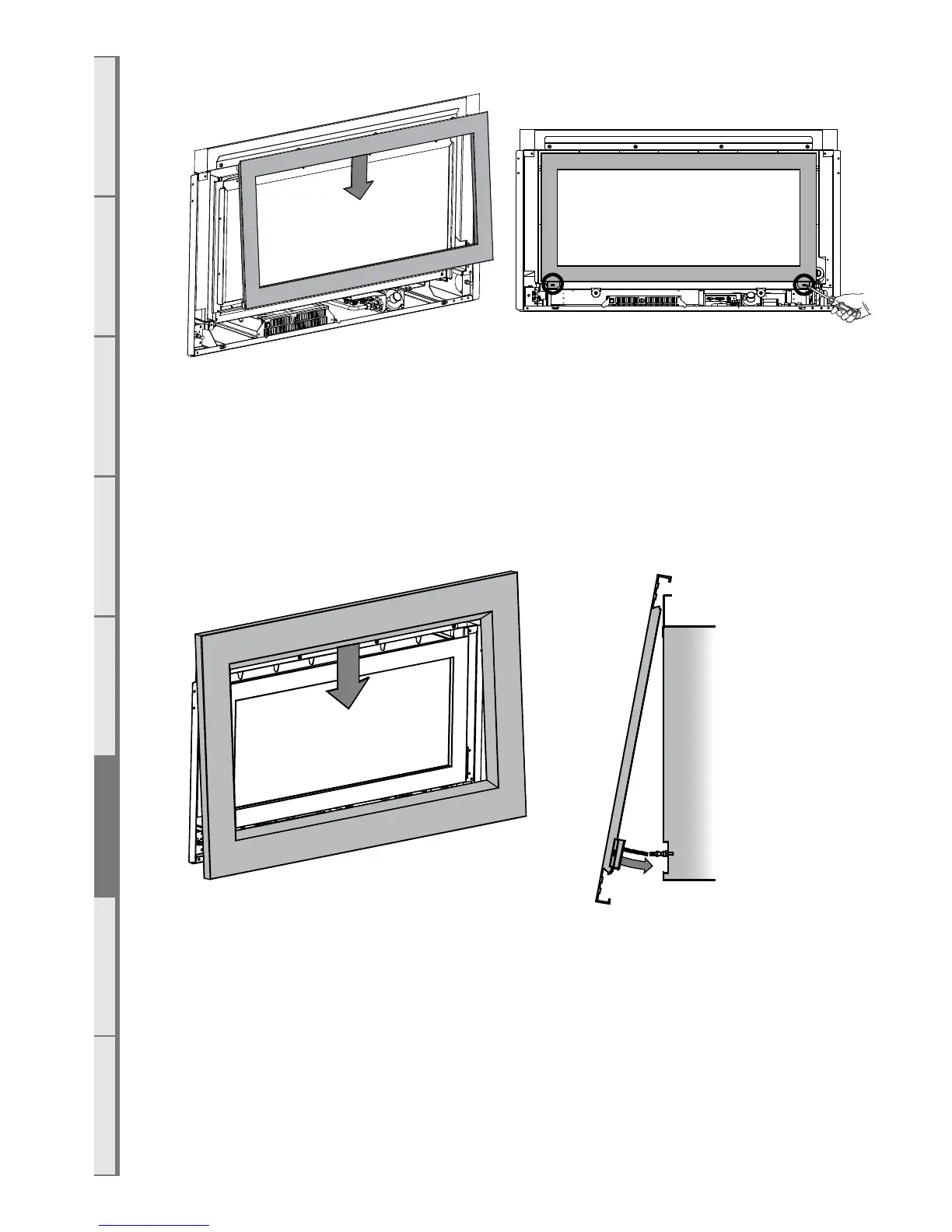

Step 6: Screw the Inner Fascia to the bottom left and right of the firebox as shown below.
Step 7: The Outer Fascia is now fitted over the top of the Inner Fascia. Hang the Outer Fascia
(larger one) from the 30 degree flange at the top of the fireplace, being very careful not to
damage either the Inner or Outer Fascias as there is not a lot of room to fit the Outer over the
Inner. Once the Fascia is hung on this flange and clear of the Inner Fascia it will swing down and
press firmly into place.
TAKE CARE: When securing the outer fascia, ensure it does not hit the inner fascia.
Step 8: Once it has clipped onto the fireplace check that the Fascia is parallel with the wall. The
fascia installation is now complete.
