Esser FACP 8000C - Second Micromodule Slot Configurations

Fire Alarm Computer 8000C
Page 53

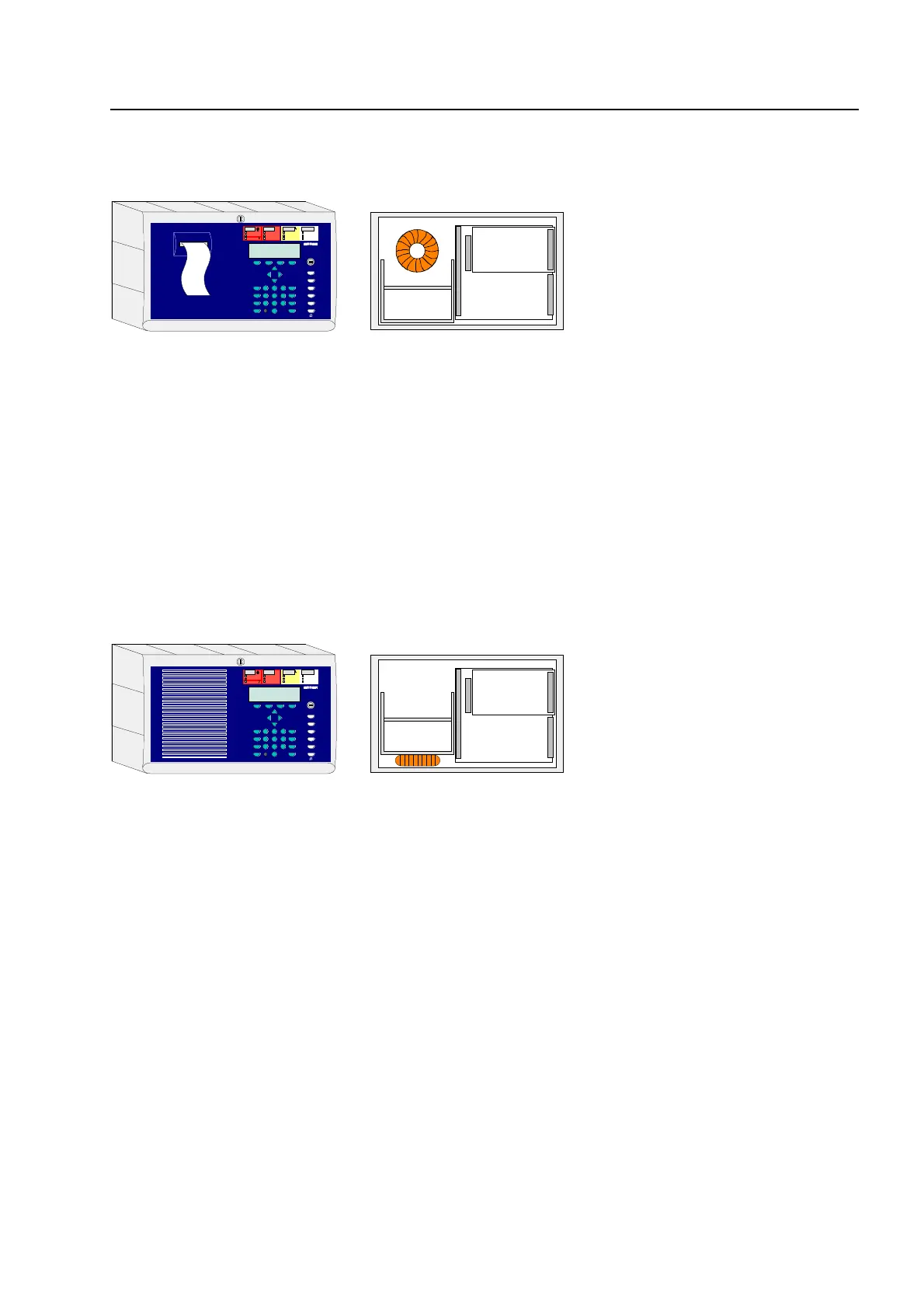

FACP 8000C One ring loop panel with printer, VdS and fire department option
Fig. 4: FACP 8000C Part No. 788103
1 x FACP in housing without front 788001
1 x Operating module front with printer 7862_ _
1 x Field device module 772420
1 x Ring loop module 784382
Position for 1 battery 12 V / 12 Ah
FACP 8000 C with second micromodule position, VdS and fire department option
Fig. 5: FACP 8000C Part No. 788104
1 x FACP in housing without front 788001
1 x Operating module front 7860_ _
1 x Field device module with extension for one micromodule 772418
1 x Ring loop module 784382
Positions for max. 2 batteries 12 V / 12 Ah
Configuration options
123
456
789
0
Basic module +
power supply module +
Ring loop module
Field device
module
battery bag
123
456
789
0
Field device module
with extension for
one micro module
battery bag
Basic module +
power supply module +
Ring loop module
