Fire Alarm Computer 8000C
FACP 8000 C with second micromodule position, single zone indicator unit (64 zones), VdS
and fire department option

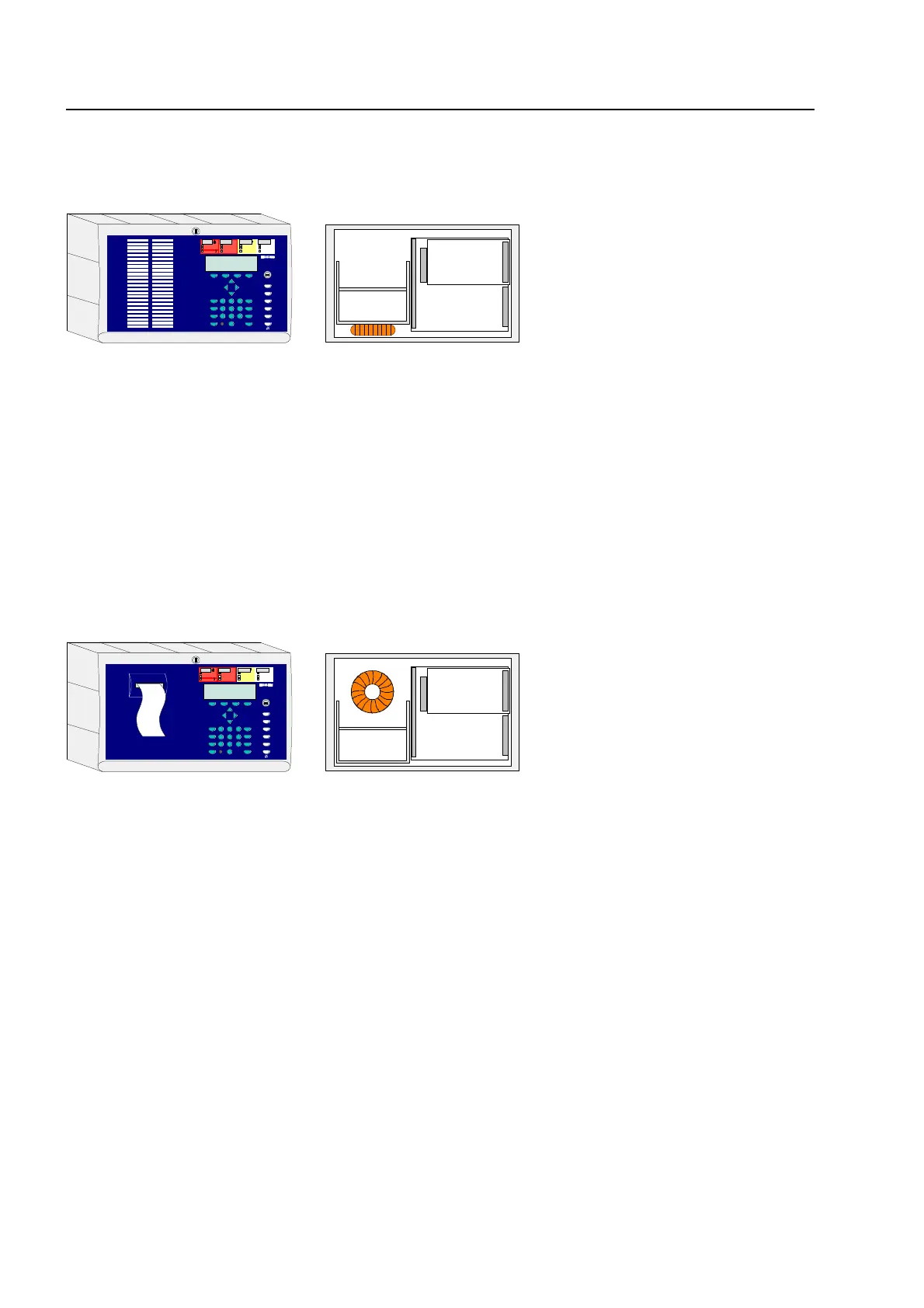

Fig. 6: FACP 8000C Part No. 788105
1 x FACP in housing without front 788001
1 x Operating module front2 with SZI 7861_ _
1 x Field device module with extension for one micromodule 772418
1 x Ring loop module 784382
Positions for max. 2 batteries 12 V / 12 Ah
FACP 8000 C with second micromodule position, printer, VdS and fire department option
Fig. 7: FACP 8000C Part No. 788106
1 x FACP in housing without front 788001
1 x Operating module front with printer 7862_ _
1 x Field device module with extension for one micromodule 772418
1 x Ring loop module 784382
Position for 1 battery 12 V / 12 Ah
Configuration options
123
456
789
0
Field device module
with extension for
one micro module
battery bag
Basic module +
power supply module +
Ring loop module
123
456
789
0
Field device module
with extension for
one micro module
battery bag
Basic module +
power supply module +
Ring loop module
