7. The housing must be mounted on a stable, clean and dry wall surface without mechanical
stress. The function of the snap-type connection for the housing door can be impaired if the
housing is not correctly mounted.
Only flat-head screws and dowels with a diameter of 8 mm should be used to secure the
central unit’s housing.
Here, make sure that the screw head fits into the hole of the wall compensation element and
does not project.
8. To compensate for slight wall unevenness, you can screw the four wall compensation pieces of
the base plate in or out.
The central unit’s additional pack contains a special spanner for the adjusting the wall
compensation elements.

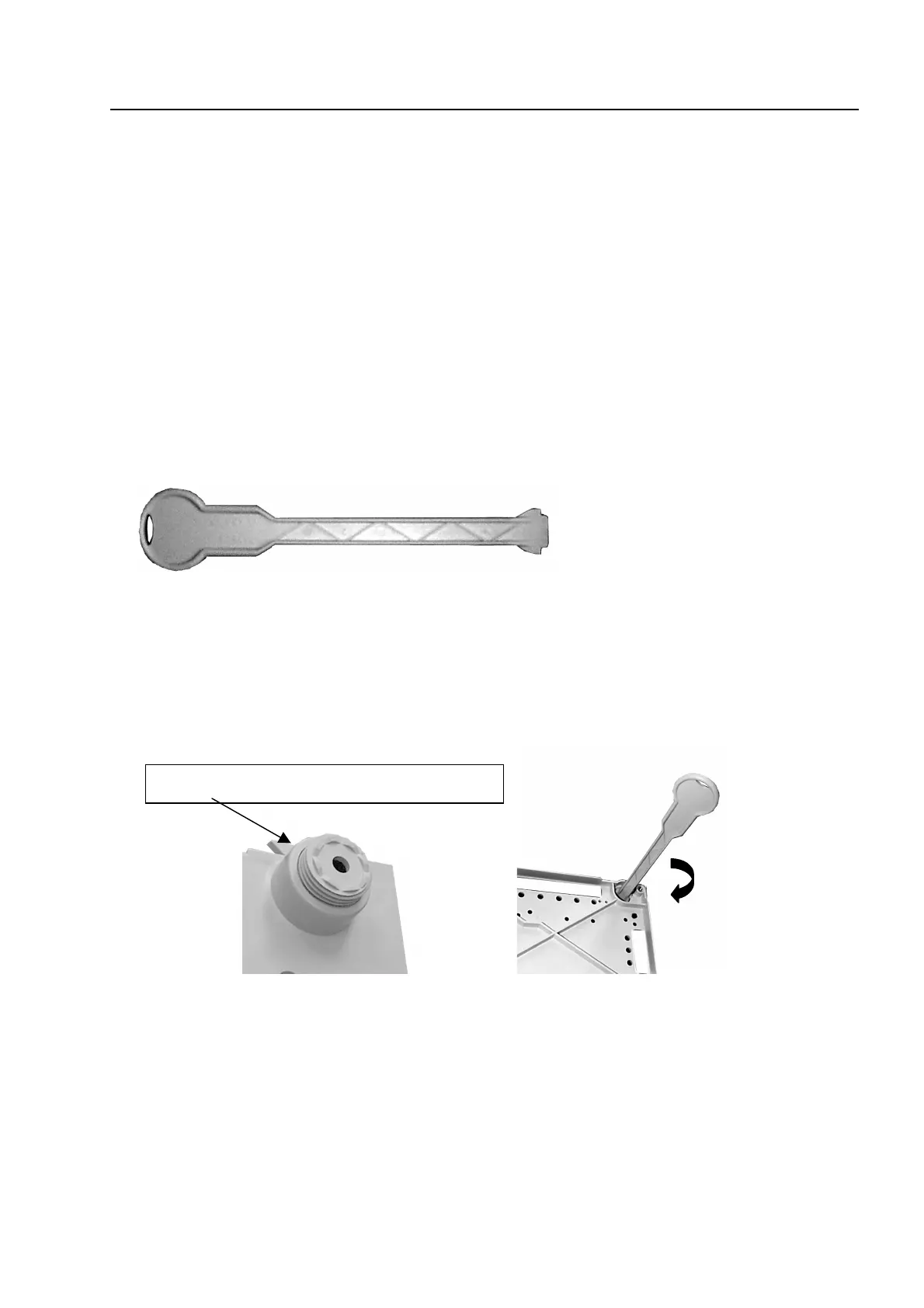

Fig. 21: Spanner for adjusting the wall compensation elements
Fig. 22: Wall compensation element of the base plate (section view)
Assembly
Wall compensation element for adjusting
