Esser FACP 8000C - Master Box Relay K1 Operating Modes; Positiv Switching and Not Monitored Modes

Page 94
Fire Alarm Computer 8000C
Operating mode: positiv switching (+12 V DC
intern
/ max. 1A), not monitored
+12V DC Ub int.
K1
GÖS
RÜCK. GND
K1
BR8 BR7 BR6
1
2
3
1
2
3
1
2
3

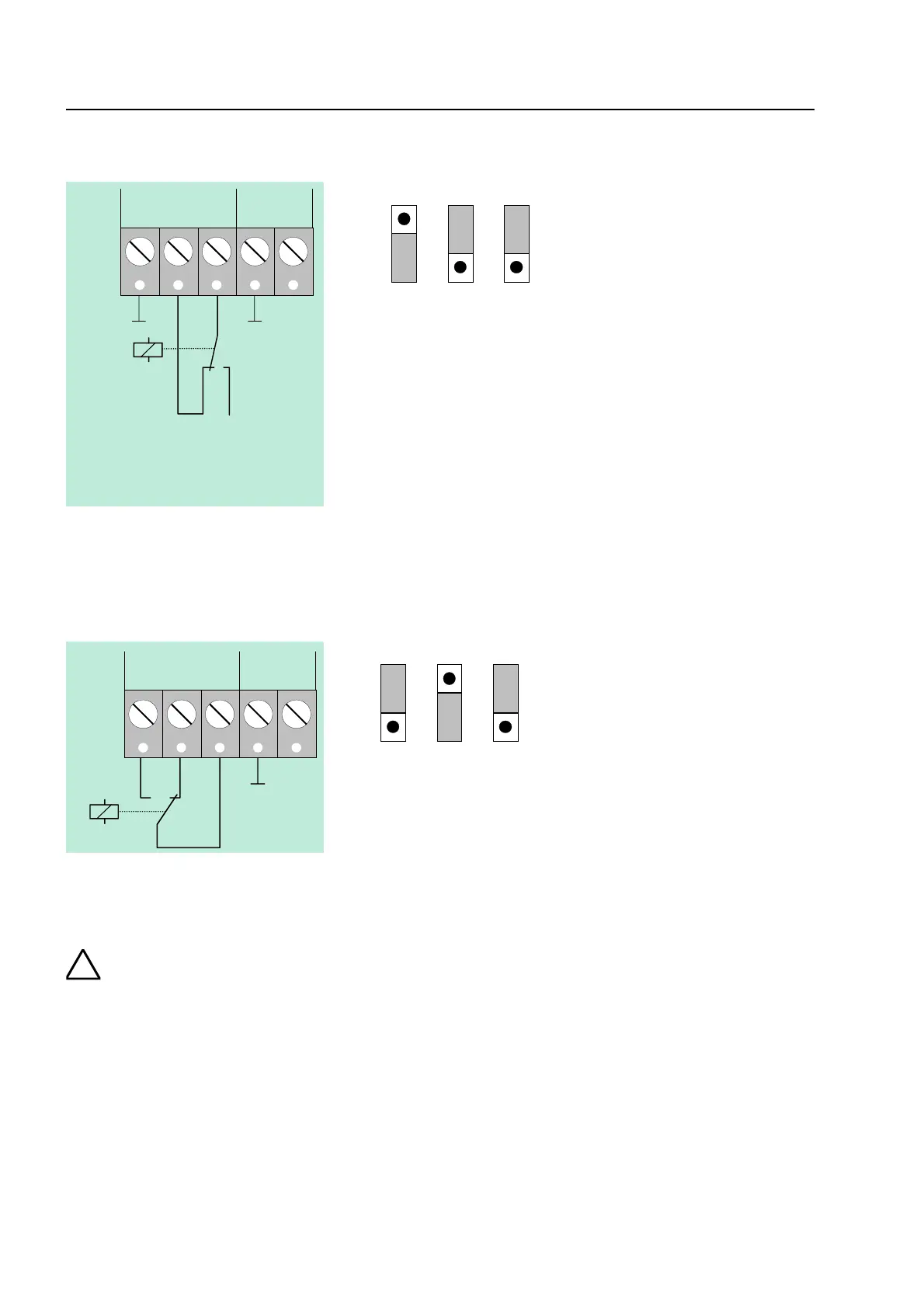

Fig. 50: Terminal of the master box relay K1
Operating mode: not monitored change-over contact
K1
GÖS
RÜCK. GND
K1
BR8 BR7 BR6
1
2
3
1
2
3
1
2
3
Fig. 51: Terminal of the master box relay K1
External voltage: < 30 V DC, max 1 A
!
The 8000C FACP's relays may only be connected to DC voltages. No AC voltage may be
applied, not even when a relay is programmed as a
non-monitored change-over contact.
Field device module
