2. Direct High Speed Modem Connection: A direct modem connection uses a standard network cable
to connect the modem directly to a computer (or in this case a modem to the DVR). This type of
connection only covers single-port modems. For a combination modem/router, use the setup
described below.
3. Router or LAN Connection – A local area network connection requires either a router or a pre-
existing LAN connection. This is the most common type of connection. A router allows multiple
computers and DVR’s to access each other as well as the Internet. It assigns different internal IP
addresses to the computers.
5.7 Simple One to One Connection
Crossover Ethernet Cable Pin outs:

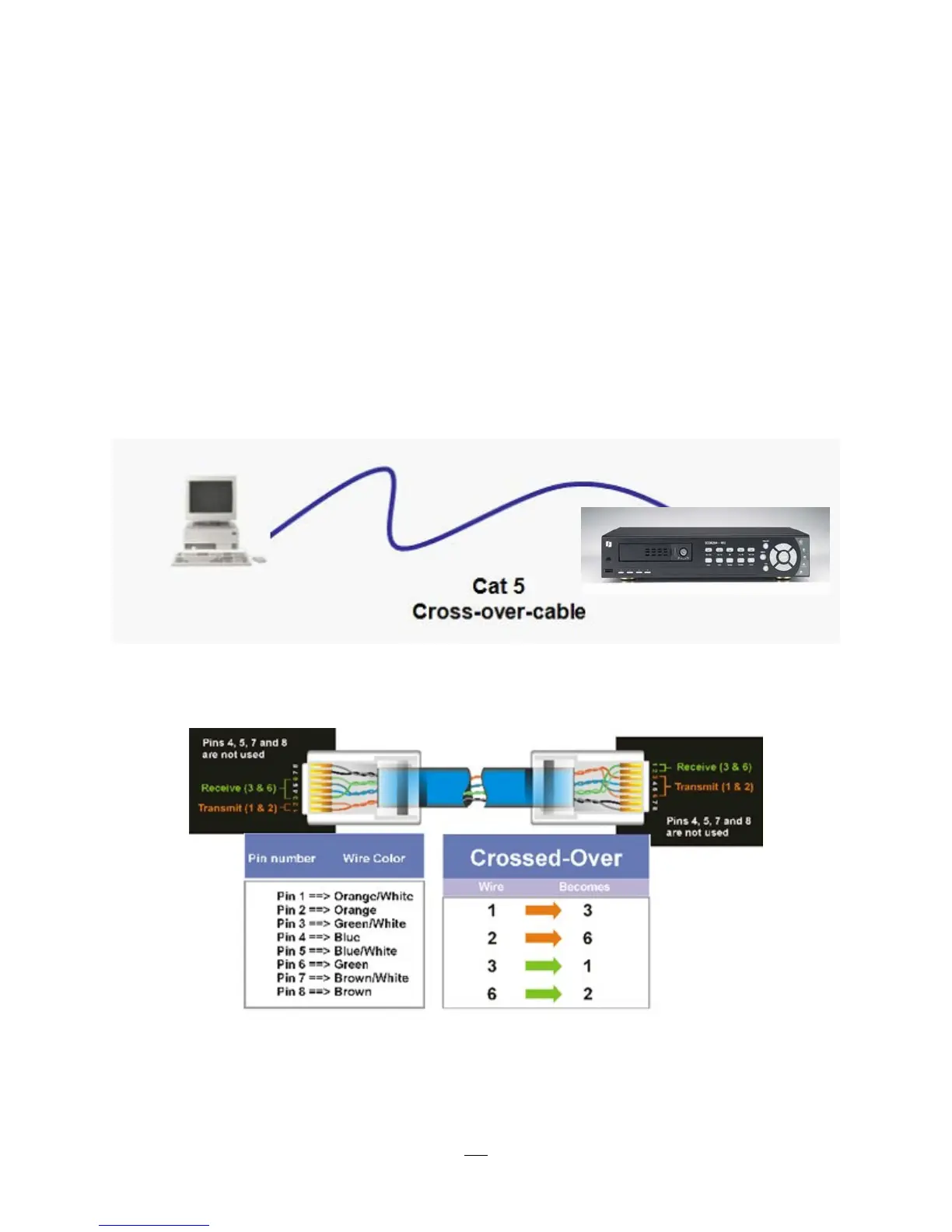

The Figure below shows the pin configurations for a cross-over cable.
