111

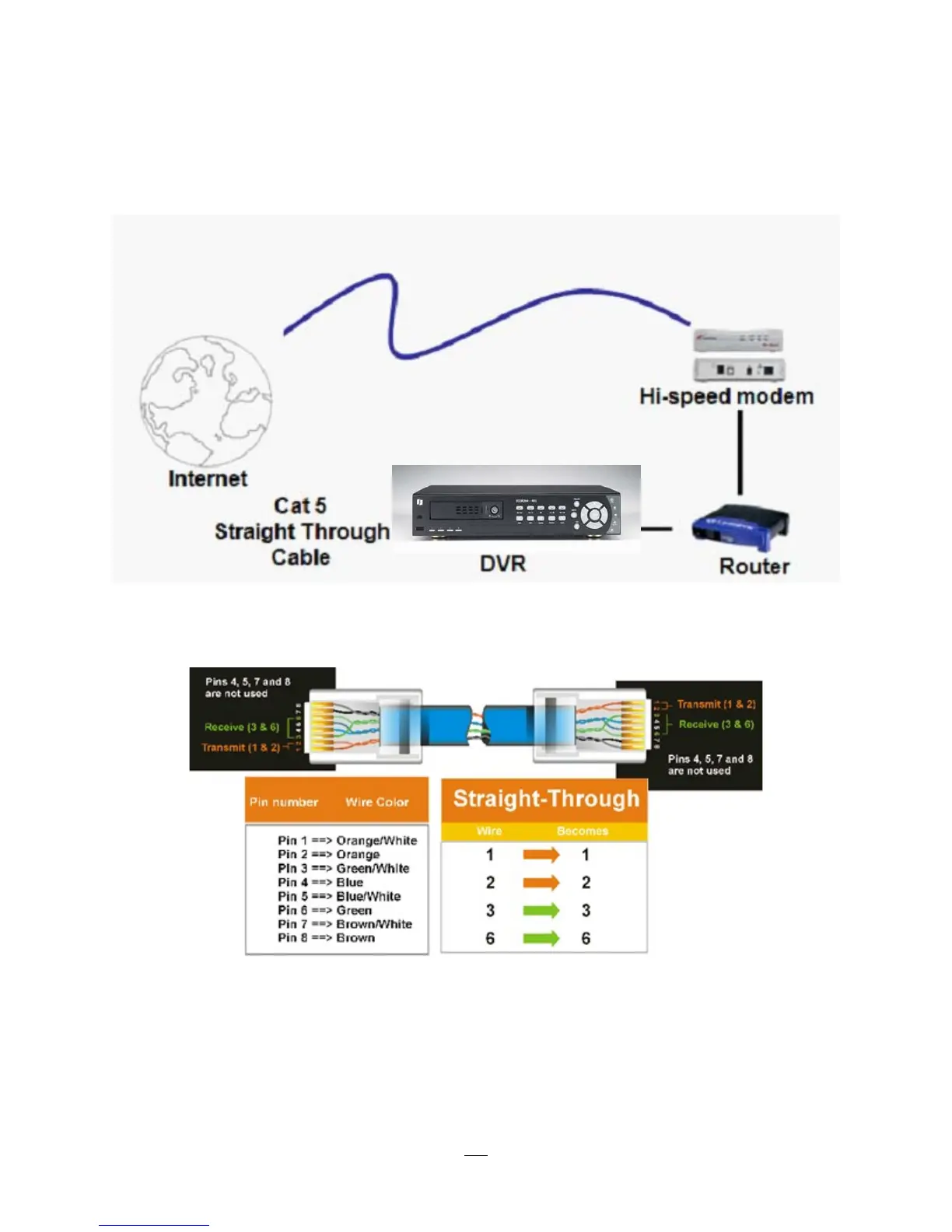

5.9 Router or LAN Connection
Straight Through Ethernet Cable Pin outs:
The Figure below shows the pin configurations for a straight cable.
Connection Procedure:
The First step is to purchase or make a straight through cable. We recommend purchasing one if
you have never made a straight through cable. Please remember you can not use a cross-over
network cable for this application
