evertz 5600MSC - Figure 1-1: Redundant Master Clock;Spg with Auto Changeover System Diagram

Model 5600MSC Master Clock/SPG Manual
Page 1-2
Revision 1.6 OVERVIEW
All versions of the 5600MSC offer an AUX I/O port and a COM port for software upgrades and/or
interconnecting two 5600MSC units (when used with the 5600ACO). An optional redundant power
supply is also available.
AUX I/OGPSCO M
FUSE:
1. 0 A
MO D E L
560 0MSC
ETHERNET
LN AC T 1 0/ 10 0
MODEM
123456
IN LTC O UTOU T
10M Hz
DARS / AE S / ANALOG
ANAL OG TG OUT AES OUT
BAN K 1 S YNC OU T BAN K 2 S YNC OU T
SDI BLACK
21
2121
TG GENLOCK
MIC ROSYSTEMS LTD.
MADE IN CANADA
SDI TG OUT
21
SD
DARS OUT
SD
SDI TG OUT
HD
SDI BLACK
HD
DALR
GENLOCK
10Mhz
6 Timeable
Black Burst
DARS
Test Signals
SDI and
HDSDI
Modem
Computer
NTP
Test Signals
Analog Video
and Audio
Balanced Audio
GPS
LTC 1
Dual
AC
LTC 1
LTC 2
GPI out for ACO
GPI in/out for MSC
Test Signals
SDI and
HDSDI
Modem
NTP
Test Signals
Analog Video
and Audio
Balanced Audio
GPS
LTC 1
Dual
AC
Dual
AC
5600MSC
5600MSC
5600ACO
AUX I/O
GPSCO M
FUSE:
1.0 A
MODEL
5600MSC
ETHERNET
LN AC T 1 0/ 10 0
MODEM
123456
IN LTC OU TOU T
10MHz
DARS / AES / ANALOG
ANAL OG TG OUT AES OUT
BANK 1 S YNC OU T BANK 2 S YNC OU T
SDI BLACK
21
2121
TG GENLOCK
MIC ROSYSTEMS LTD.
M ADE IN CANADA
SDI TG OUT
21
SD
DARS OUT
SD
SD I T G OU T
HD
SDI BL ACK
HD
DALR
GENLOCK

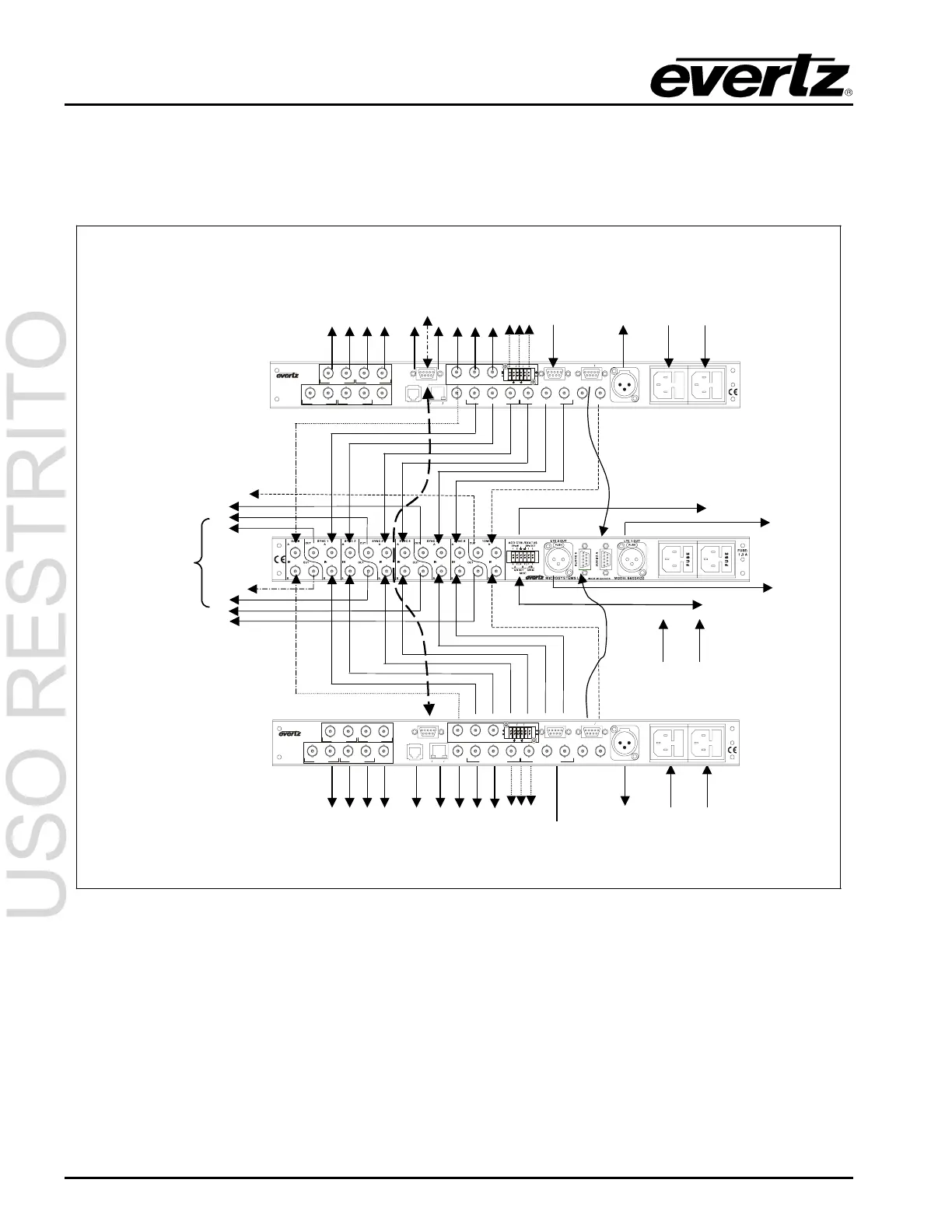

Figure 1-1: Redundant Master Clock/SPG with Auto Changeover System Diagram
Two 5600MSC units in combination with an Automatic Change Over (model 5600ACO) provide an
extra degree off reliability where dual redundant installations are required. The ACO provides relay
changeover for the two LTC outputs, the six Sync pulse outputs, the 10 MHz reference output, the
DARS output and the GPI/O interface. The 5600ACO can be run in an automatic mode providing
intelligent monitoring and arbitration of the two sets of 5600MSC outputs, automatically switching to the
backup 5600MSC when any of the primary 5600MSC signals fails. The 5600ACO can also be
operated in manual mode, allowing switching to either unit on demand from a GPI input or front panel
switch. Two banks of LEDs provide status monitoring of the outputs from each of the 5600MSC units.
A serial cable interconnecting the COM ports of the two 5600MSC units guarantees that the
