evertz 5600MSC - Figure 3-5: Sync Generation - 10 Mhz Reference - NTSC Outputs; Figure 3-6: Sync Generation - 10 Mhz Reference - PAL Outputs; Figure 3-7: Sync Generation - no Reference - NTSC Outputs

Model 5600MSC Master Clock/SPG Manual
TECHNICAL DESCRIPTIONOPERATION
Revision 1.6 Page 3-11
X Y
Master
Frequency
Generator
59.94 Hz
Sync
Generation
50 Hz
Sync
Generation
Frequency
Locking
X Y X Y X Y X Y X Y
160.16 sec (4800 NTSC frames)
160.16 sec (4004 PAL frames)
X YX Y
DARS
Generation
DARS Phase Locking
INPUT
FREQUENCY REF
10 MHz freq ref
OUTPUT
AES/DARS OUT
AES Lock type
AES lock NTSC
Menu Settings
10 MHz
Field 1 of NTSC 10 field
sequence (see SMPTE 318M)
May be X or Z
Preamble
May be X or Z
Preamble

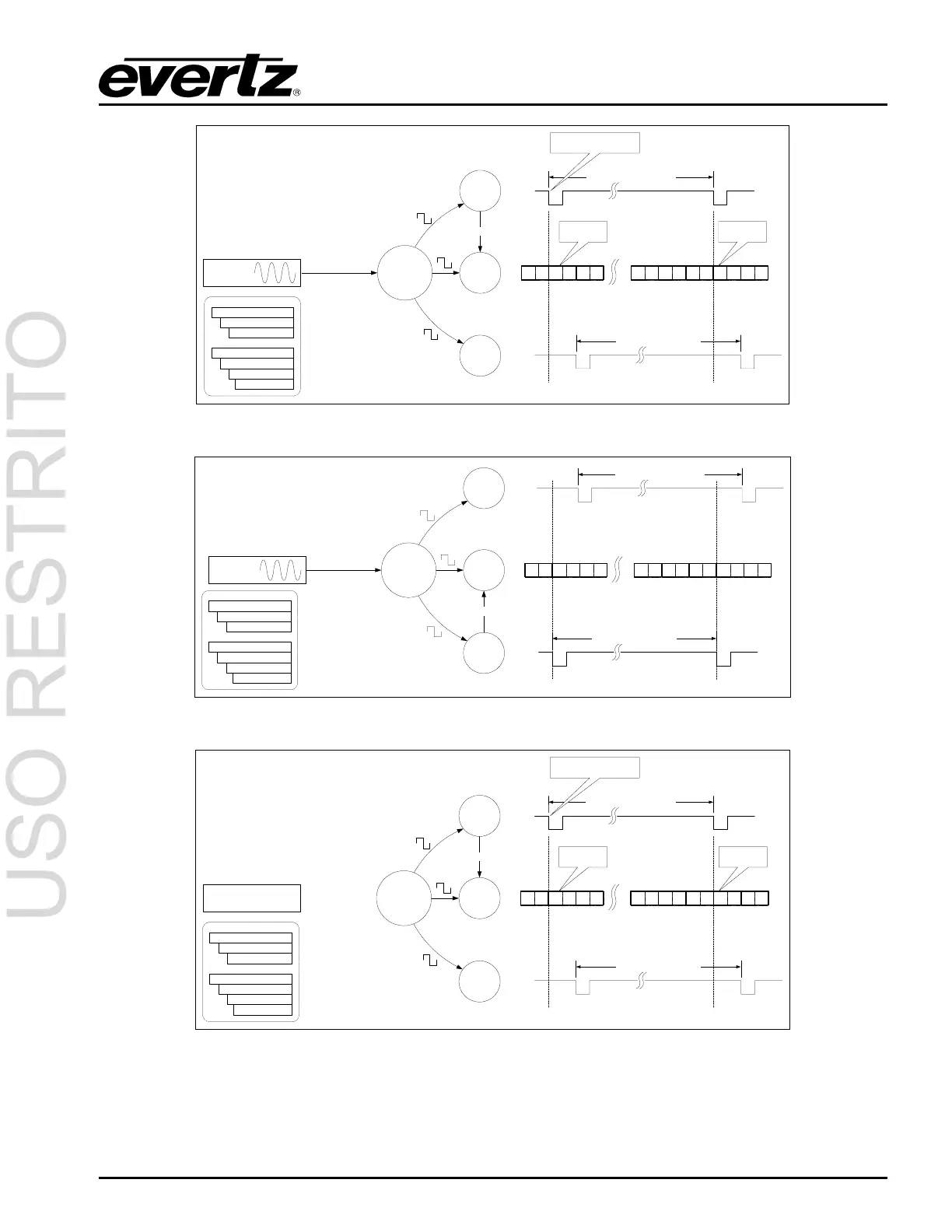

Figure 3-5: Sync Generation – 10 MHz Reference – NTSC outputs
X Y
Master
Frequency
Generator
59.94 Hz
Sync
Generation
50 Hz
Sync
Generation
Frequency
Locking
Z Y X Y X Y Z Y X YX YX Y
DARS
Generation
DARS Phase Locking
INPUT
FREQUENCY REF
Video freq ref
OUTPUT
AES/DARS OUT
AES Lock type
AES lock PAL
Menu Settings
160.16 sec (4004 PAL frames)
160.16 sec (4800 NTSC frames)
10 MHz
Figure 3-6: Sync Generation – 10 MHz Reference – PAL outputs
X Y
Master
Frequency
Generator
59.94 Hz
Sync
Generation
50 Hz
Sync
Generation
X Y X Y X Y X Y X Y
160.16 sec (4800 NTSC frames)
160.16 sec (4004 PAL frames)
X YX Y
DARS
Generation
DARS Phase Locking
INPUT
FREQUENCY REF
Internal freq ref
OUTPUT
AES/DARS OUT
AES Lock type
AES lock NTSC
Menu Settings
Field 1 of NTSC 10 field
sequence (see SMPTE 318M)
May be X or Z
Preamble
May be X or Z
Preamble
No Reference or selected
reference missing
Figure 3-7: Sync Generation – No Reference – NTSC outputs
