EMR User's Guide
High Density Modular Audio Router (AES, Analog, MADI, TimeCode, Data)
Page 122 Revision 1.8 COMPONENT OVERVIEW
5.1.6.2. Audio Pair Fault Definitions VistaLINK
®
Traps
The following audio pair fault definitions parameters generate traps through the VistaLINK
®
interface.
Phase Reversal: This control allows the user to raise a trap when audio pair is out of phase given
thresholds described.
Mono: This control allows the user to raise a trap when audio pair is considered the same given the
thresholds described.
5.1.6.3. Audio Bar Graphs in VistaLINK
®
The EMR AES and analog input modules have an optional (+AM option) feature that allows them to send
audio level and peak information over Ethernet to a device such as VistaLINK
®
. The bar graph display
can be accessed by right clicking on the device in the navigation tree and selecting the Audio Bar Graph
option. This will bring up a display that looks like the image shown in Figure
5-7.

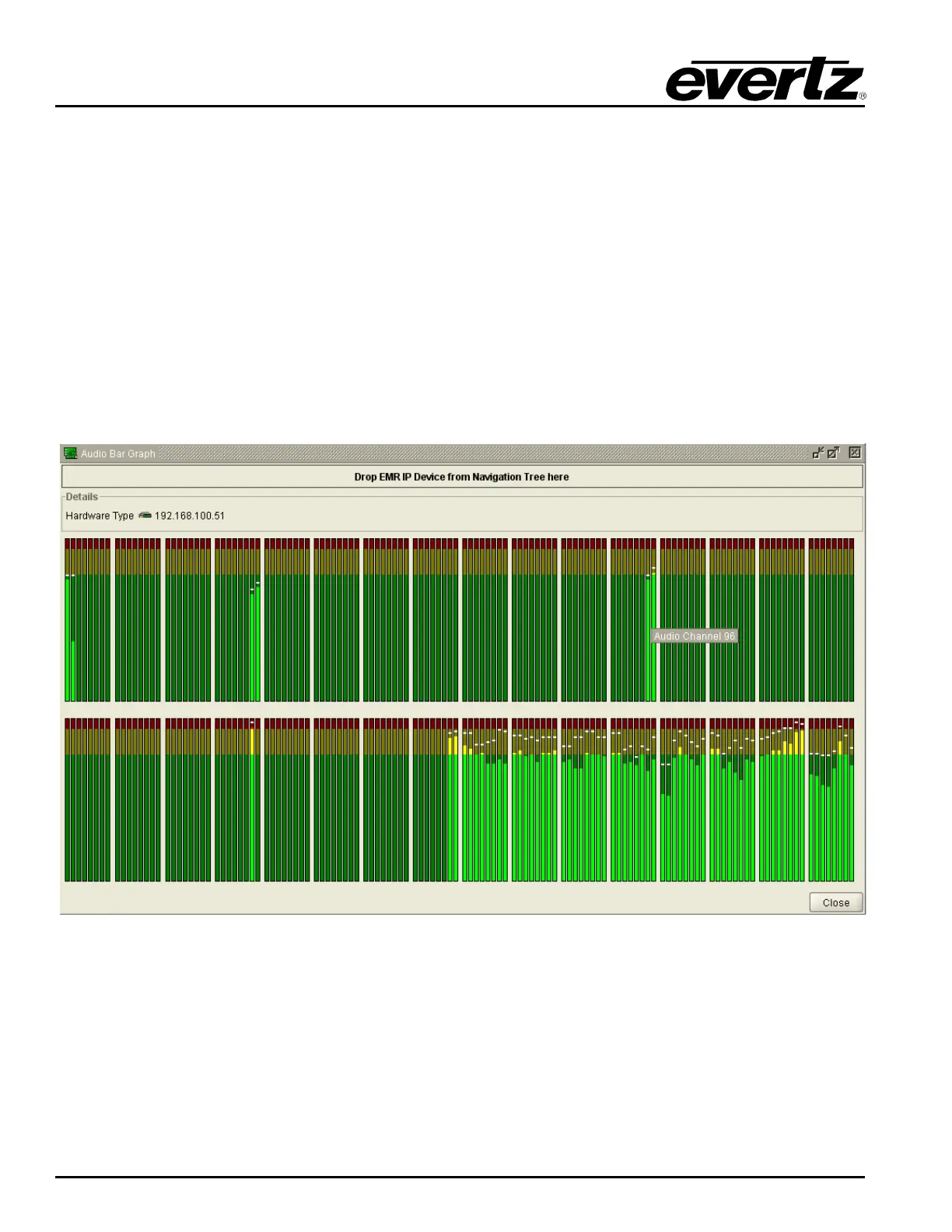

Figure
5-7: VistaLINK
®
Audio Bar Graph
