EMR User's Guide
High Density Modular Audio Router (AES, Analog, MADI, TimeCode, Data)
COMPONENT OVERVIEW Revision 1.8 Page 57
EMR-IP
96(
48)
-LTC EMR
-OP
96(48)-LTC

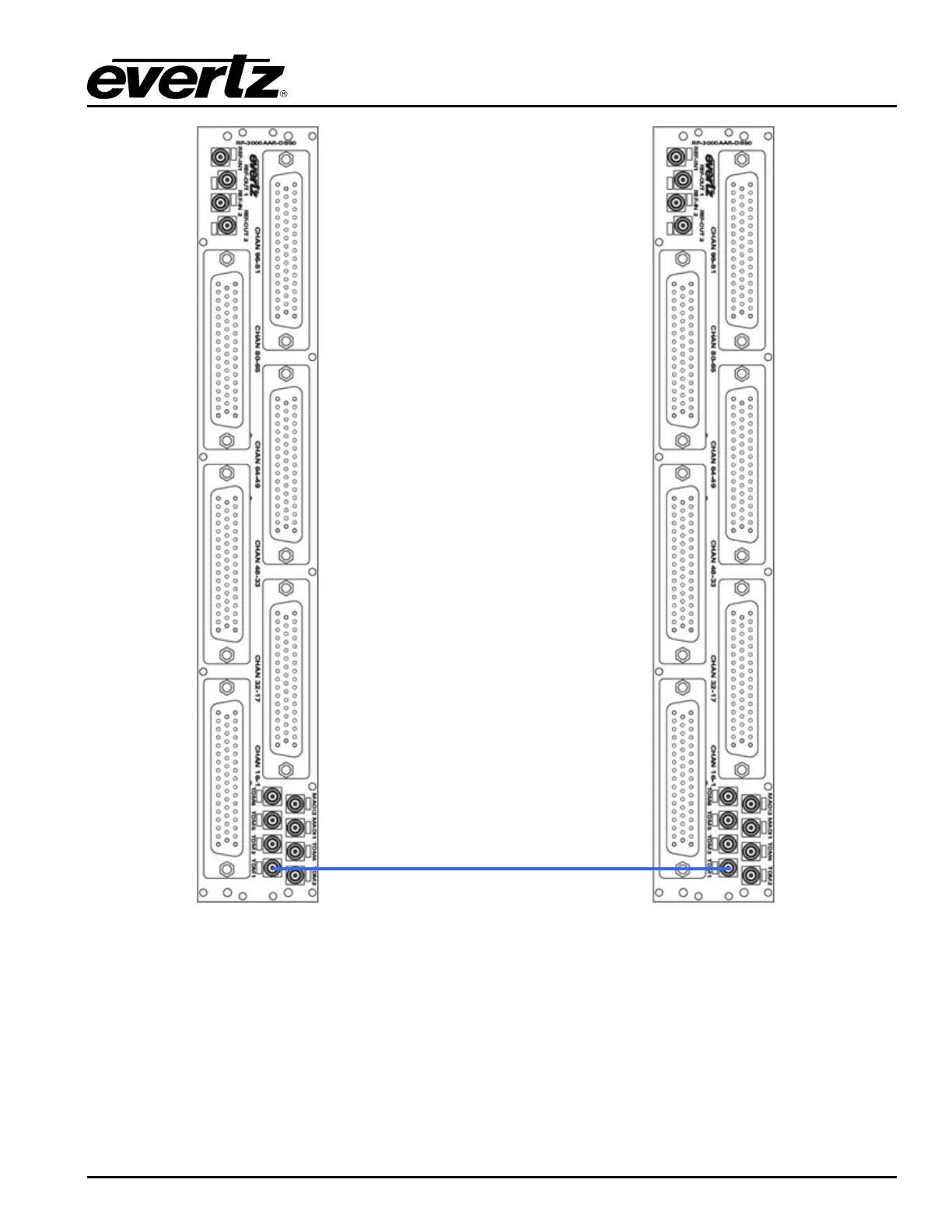

Figure
2-32: Basic LTC Setup without ADMX
2.2.10. EMR-PR48 Data Module
The EMR-PR48 is a data port router card for the EMR. Each of the 48 data ports that are available on the
module can be configured to sup1port either RS-422 or RS-232 serial protocols. Additionally, each port
can be configured to be a master or slave so that devices can be set to controlling or controlled devices.
