EMR User's Guide
High Density Modular Audio Router (AES, Analog, MADI, TimeCode, Data)
COMPONENT OVERVIEW Revision 1.8 Page 9
2.2.1.2. Balanced AES Input Rear Panel
The AESB version of the rear panel occupies 2 slots in a frame and has balanced AES inputs using a rear
plate that has 50-pin D-Sub female connectors as shown in Figure
2-5. The EMR-IP48-AESB uses the
same rear plate as the EMR-IP96-AESB but only the first three 50-pin D-Sub connectors are enabled.

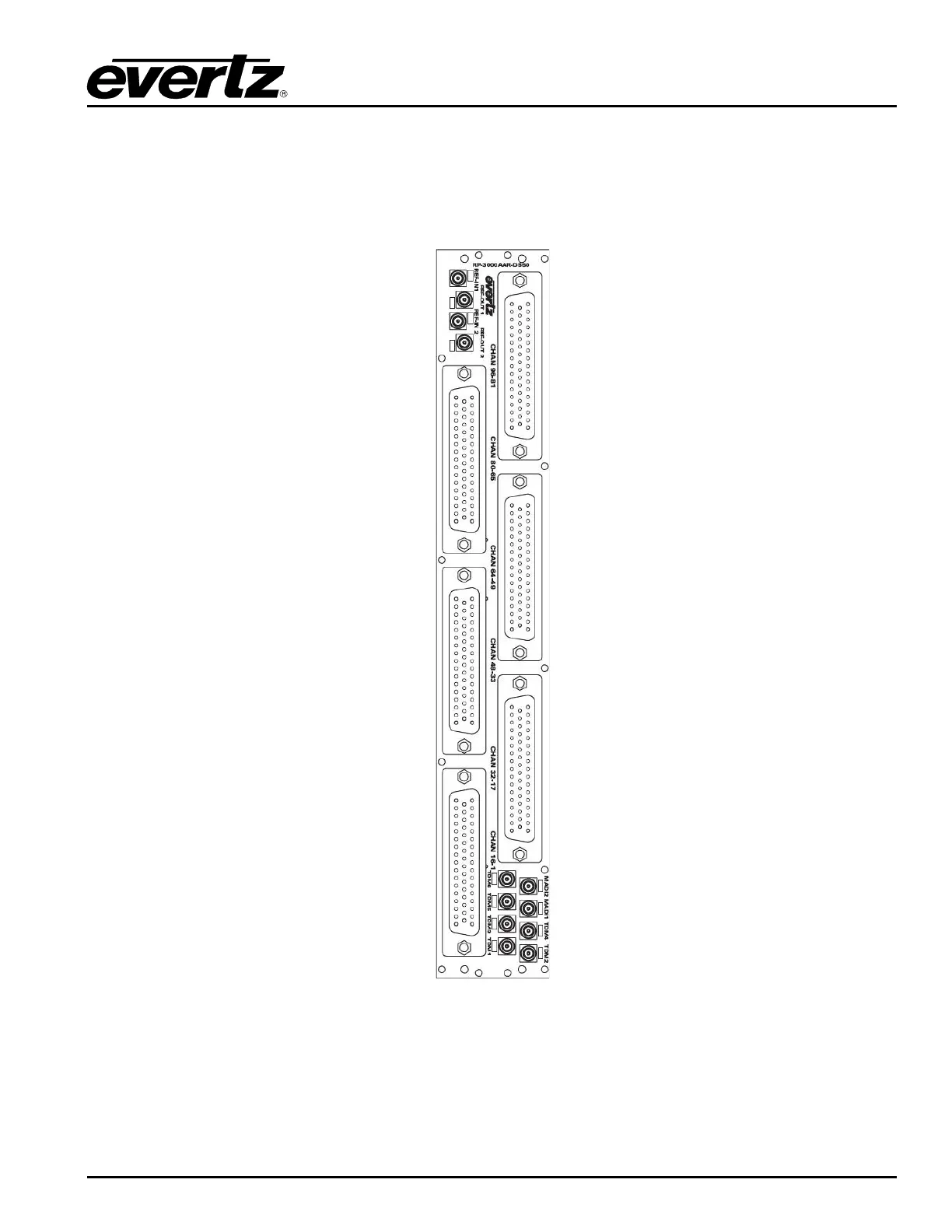

Figure
2-5: EMR-IP96 (48)-AESB Rear Plate
The balanced AES inputs are interfaced by 50-pin D-Sub female connectors. Each connector supports 16
mono channels of balanced AES. The pinout for each connector is shown in Table
2-2. All other I/O
signals use DIN 1.0/2.3 connectors. The control of the monitoring ports is not currently supported.
TDM1 and TDM2 are TDM outputs, while TDM 3 is a video output. The connector MADI2 is a MADI input.
