EMR User's Guide
High Density Modular Audio Router (AES, Analog, MADI, TimeCode, Data)
Page 42 Revision 1.8 COMPONENT OVERVIEW
2.2.6.1. Front Card Edge Controls and LEDs
The EMR-IP16-MADI and 3000MADI16-TDM4 front card edges have some key controls and indicators
that can help in the installation and debugging processes. Figure
2-24 and Table 2-13 show the card
edges and describe the expected behavior of each component. If the status indicators do not behave as
described it can be a sign of installation or configuration issues.
New Card Old Card

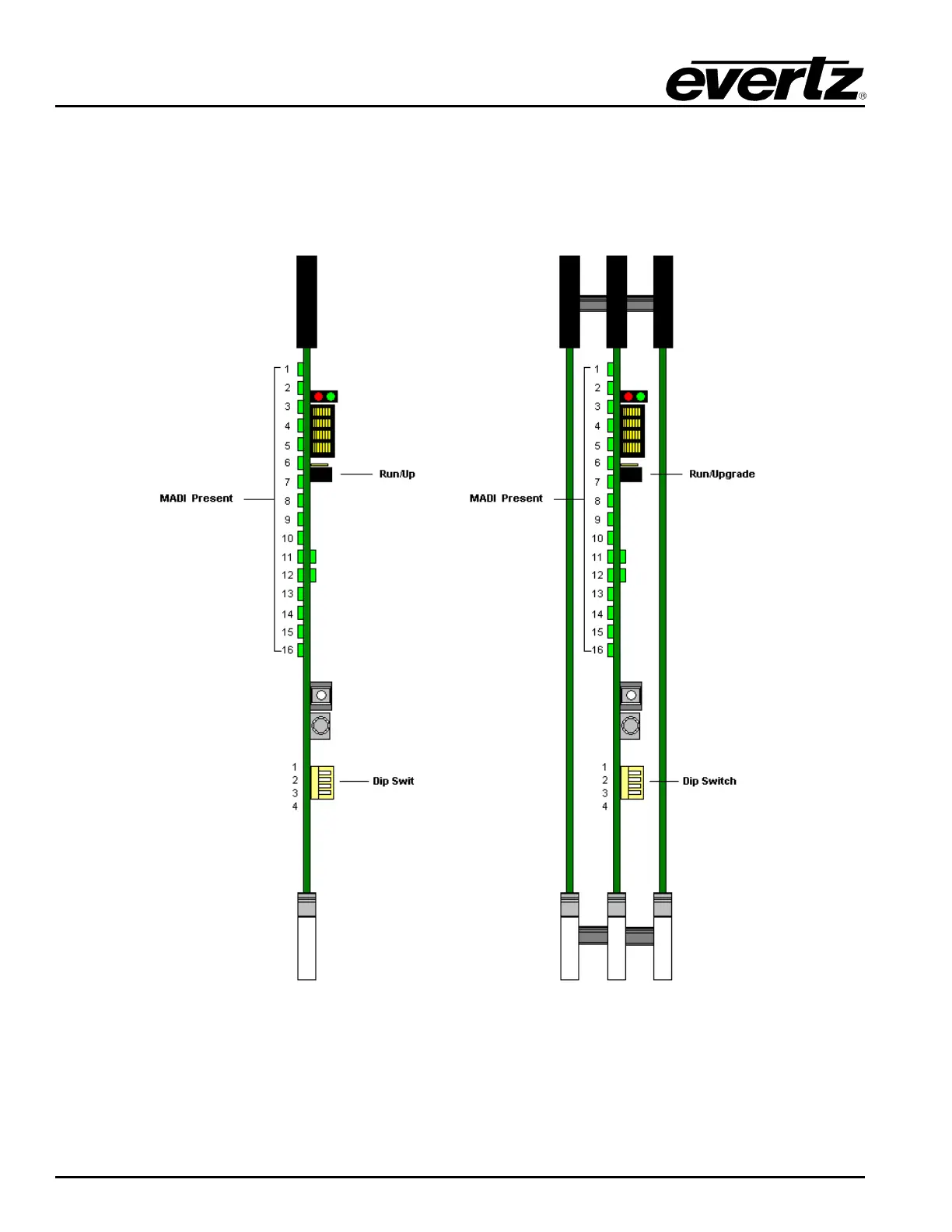

Figure
2-24: EMR-IP16-MADI (left) and 3000MADI16-TDM4 (right) Front Card Edges
