evertz EMX3-FR - Figure 2-14: EMR-IP48-AA Front Card Edge

EMR User's Guide
High Density Modular Audio Router (AES, Analog, MADI, TimeCode, Data)
Page 26 Revision 1.8 COMPONENT OVERVIEW

Please Note: Analog IP card will accept an analog signal and will convert it to digital
(TDM).
Figure

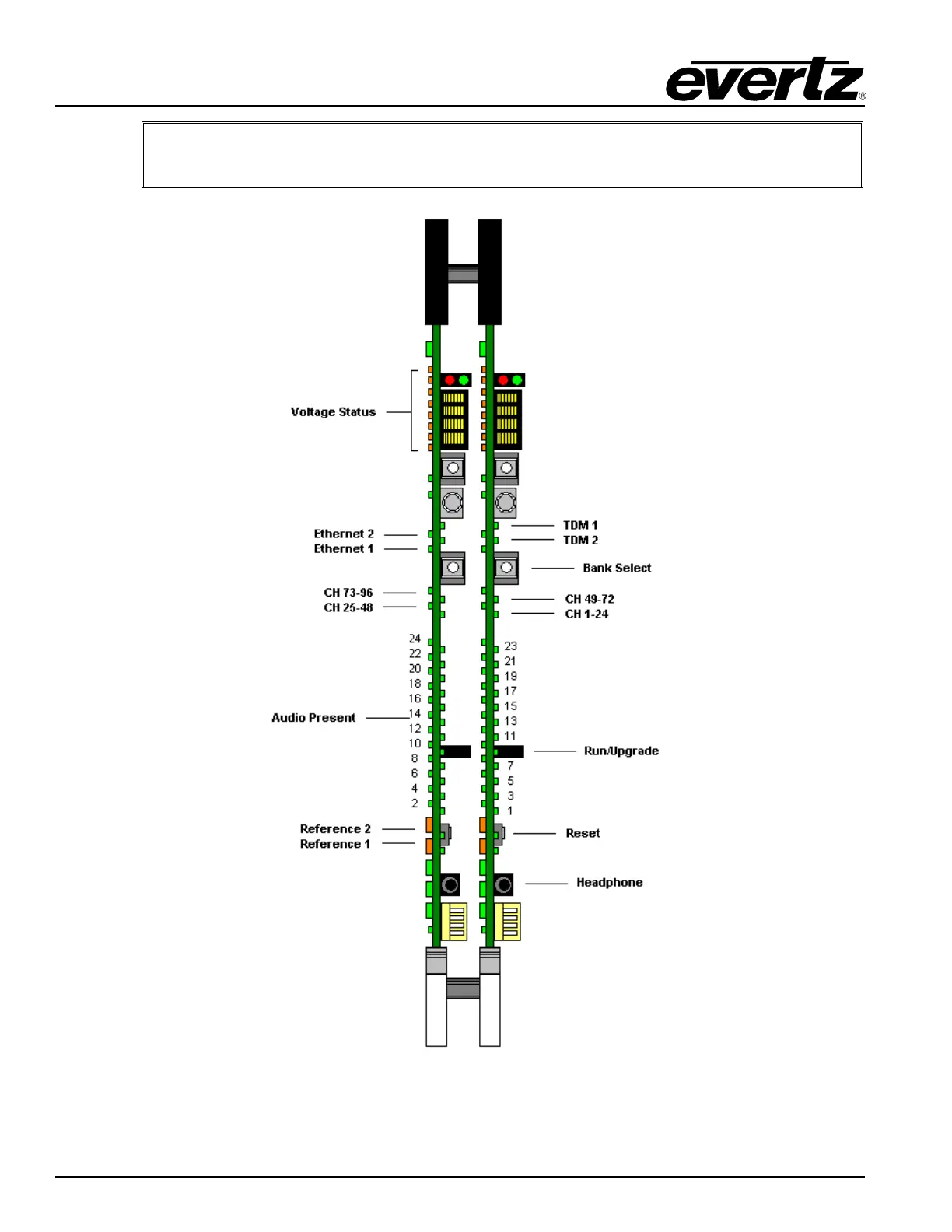

2-14: EMR-IP48-AA Front Card Edge
