EMR User's Guide
High Density Modular Audio Router (AES, Analog, MADI, TimeCode, Data)
CONFIGURATION Revision 1.8 Page 129

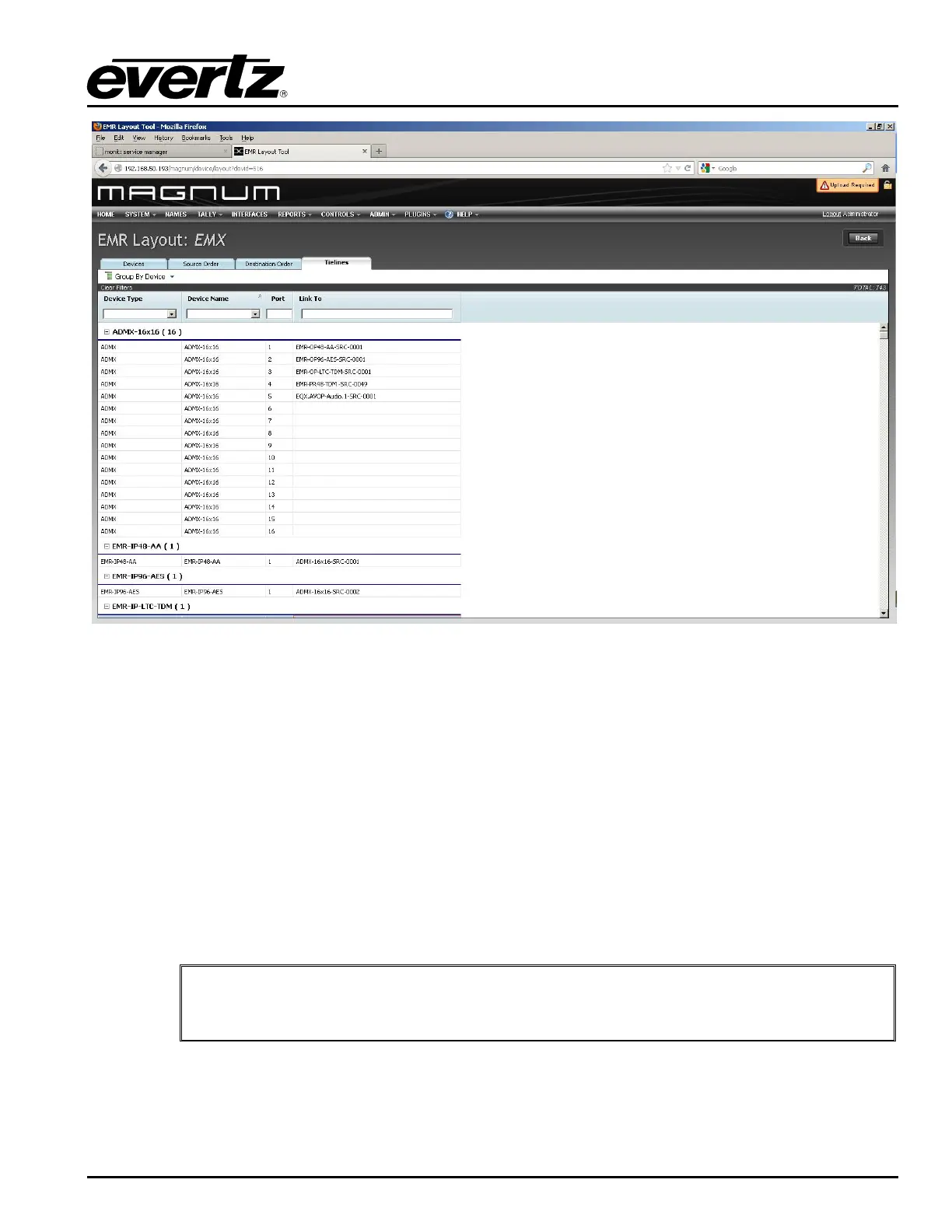

Figure
6-6: Magnum Tielines Page
6.2. TIME CODE ROUTING
The EMR time code router is controlled using Quartz protocol over IP through the frame controller. Within
an EMR time code system the input modules are all passive and do not communicate with the control
system. Only the output modules communicate with the control system to make route changes.
In any EMR time code system that has multiple output modules, any output module is considered the
master and any output module can communicate with the control system. In the case of Magnum, only
one output module is added to the Devices page but the entire size of the system must be defined
appropriately.
For example, the IP address of Card ID 1 can be used as the main and the IP address of Card ID 2 can be
used as the backup.
Note: The default port for communicating with the EMR time code modules is 4000.
