EMR User's Guide
High Density Modular Audio Router (AES, Analog, MADI, TimeCode, Data)
Page 38 Revision 1.8 COMPONENT OVERVIEW
2.2.5. EMR-ADMX-16X16/A, EMR-ADMX-48X48 and 3000ADMX-16X16 Crosspoint Modules
The EMR-ADMX-16X16/A, EMR-ADMX-48X48 and 3000ADMX-16X16 are the crosspoint cards for the
EMR. They utilize a TDM core to allow up to 30720x30720 mono audio channels to be routed. EMR-
ADMX-16X16/A and the 3000ADMX-16X16 have 16 TDM inputs and EMR-ADMX-48X48 has 48 TDM
inputs which allow them to be interfaced with any of the EMR input modules or AVIP and 16 TDM and 48
TDM outputs that allow them to be interfaced with any of the EMR output modules or AVOP.
The EMR-ADMX-16X16/A rear panel occupies 1 slot in a frame and uses DIN 1.0/2.3 connectors, EMR-
ADMX-48X48 rear panel occupies 2 slots in a frame and uses DIN 1.0/2.3 connectors while the
3000ADMX-16X16 rear panel occupies 3 slots in a frame and has BNC connectors. All three plates are
shown in Figure
2-21.

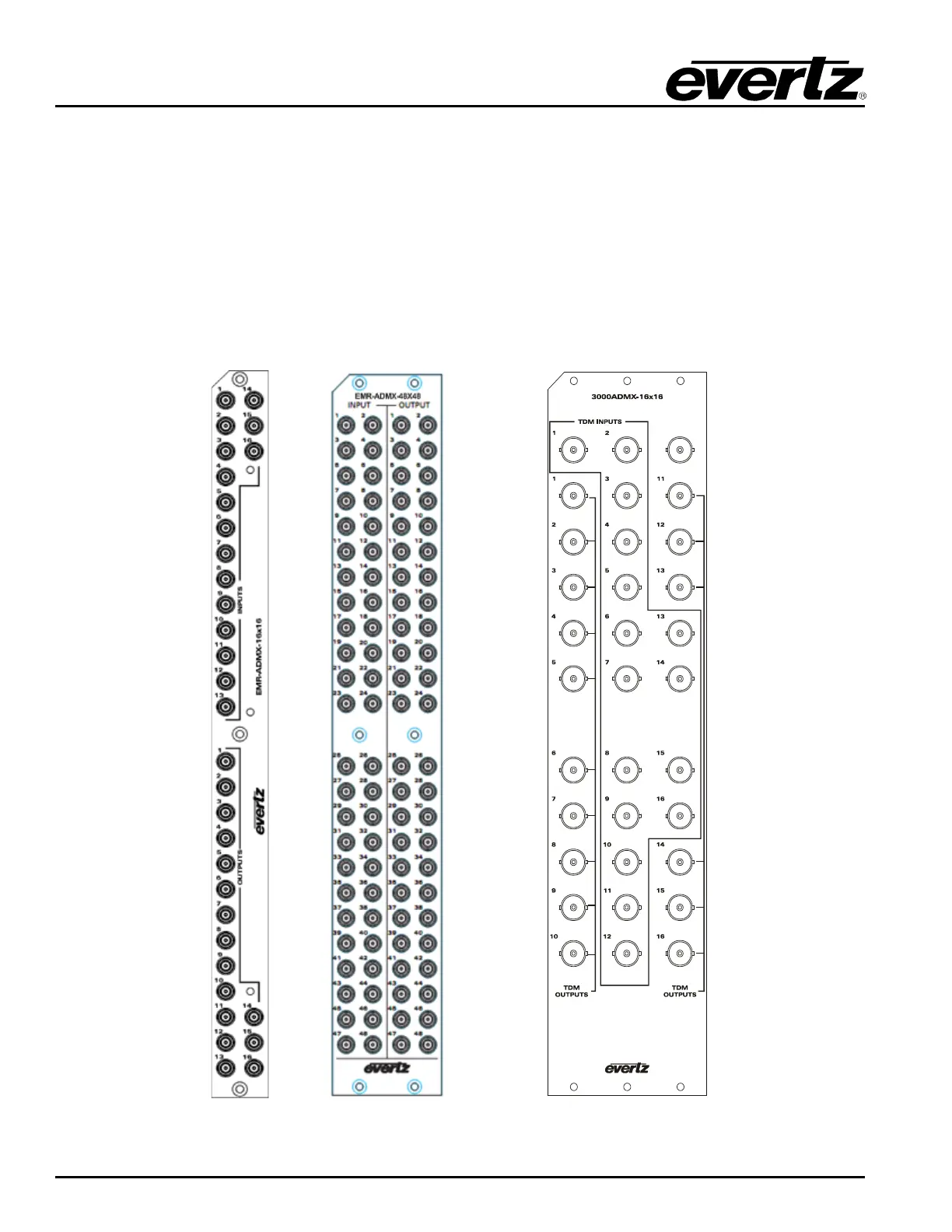

Figure
2-21: EMR-ADMX-16X16/A (left), EMR-ADMX-48X48 (center) and 3000ADMX-16X16 (right)
