2.2.5.1. Front Card Edge Controls and LEDs
The EMR-ADMX-48X48, EMR-ADMX-16X16/A and the 3000ADMX-16X16 front card edges have some
key controls and indicators that can help in the installation and debugging processes. Figure
2-22 and
Table
2-11 show the card edges and describe the expected behavior of each component. If the status
indicators do not behave as described it can be a sign of installation or configuration issues.

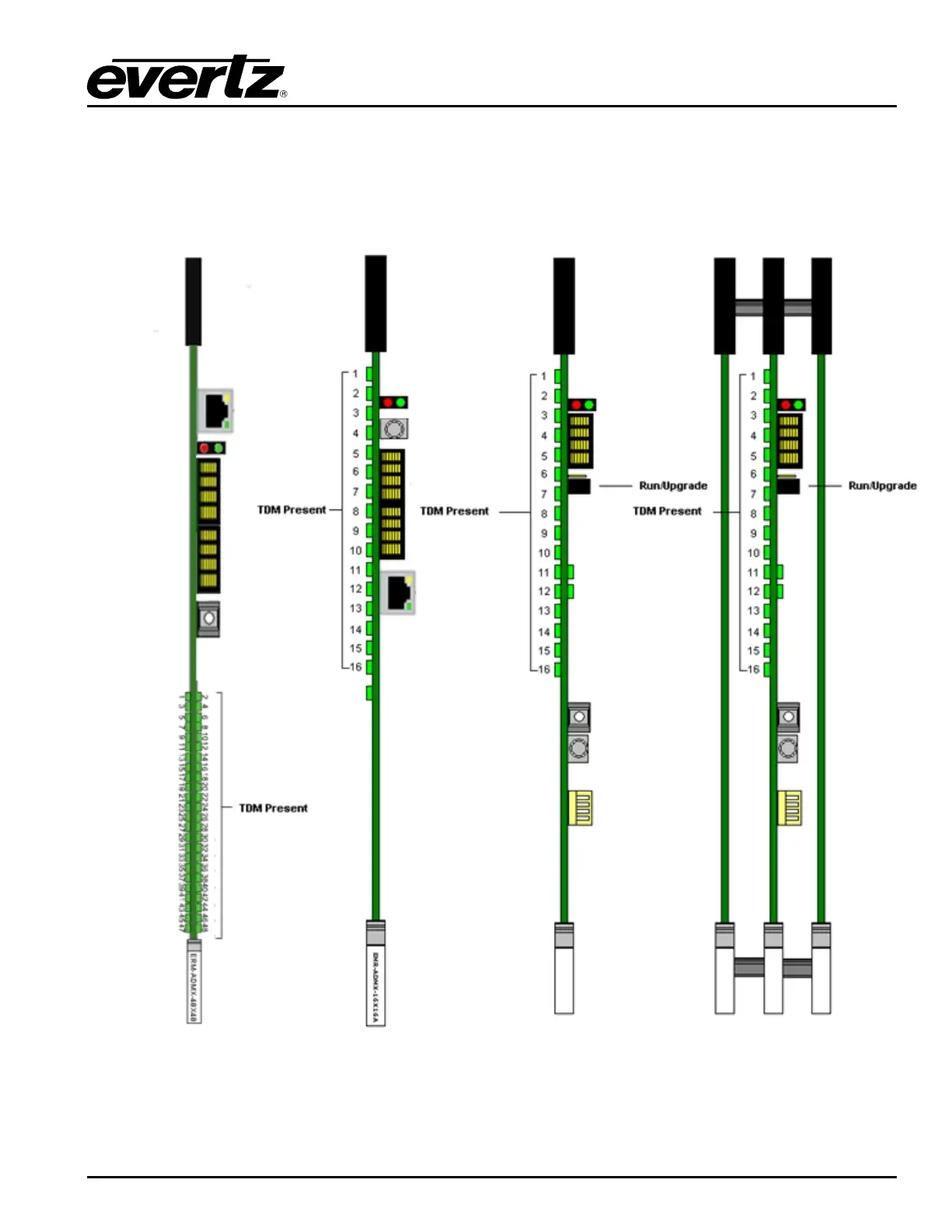

Figure
2-22: From left to right EMR-ADMX-48X48, EMR-ADMX-16X16A, EMR-ADMX-16X16 and
3000ADMX-16X16) Front Card Edges
