evertz EMX3-FR - Data Port D50 Connector - Pin out

EMR User's Guide
High Density Modular Audio Router (AES, Analog, MADI, TimeCode, Data)
COMPONENT OVERVIEW Revision 1.8 Page 59
2.2.10.1. Data Port D50 Connector – Pin Out
EMR-PR48 analog audio frames use female D50 connectors, with each connector carrying 8 data ports.

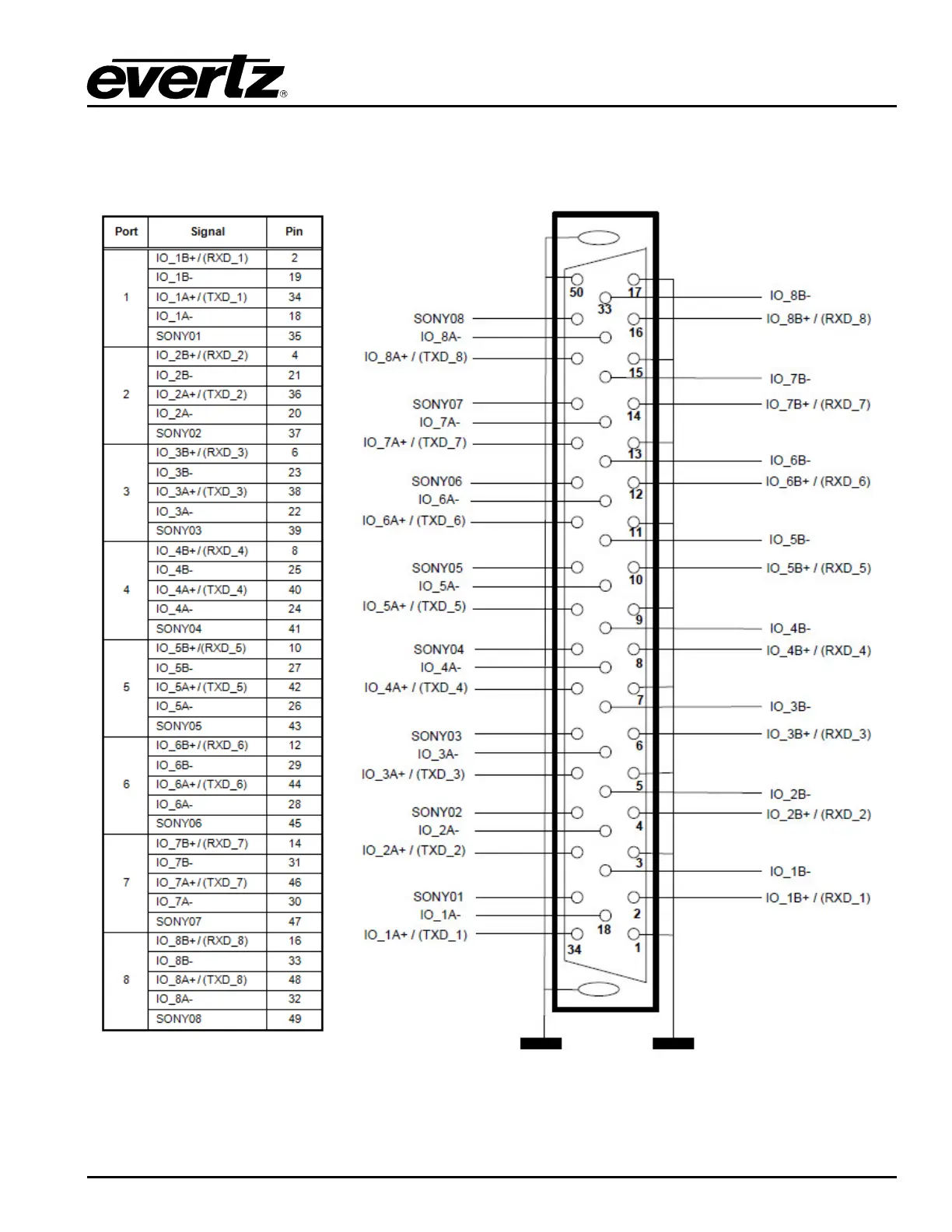

The details of how each of the D50 pins map to each of the 8 ports is shown in Figure
2-34 .
Figure
2-34: Data Port Pin-Out
