EMR User's Guide
High Density Modular Audio Router (AES, Analog, MADI, TimeCode, Data)
COMPONENT OVERVIEW Revision 1.8 Page 49
2.2.8.2. Front Card Edge Controls and LEDs
The EMR-IP96 (48)-LTC front card edge has some key controls and indicators that can help in the
installation and debugging processes. Figure
2-28 and Table 2-16 show the card edge and describe the
expected behavior of each component. If the status indicators do not behave as described it can be a
sign of installation or configuration issues.

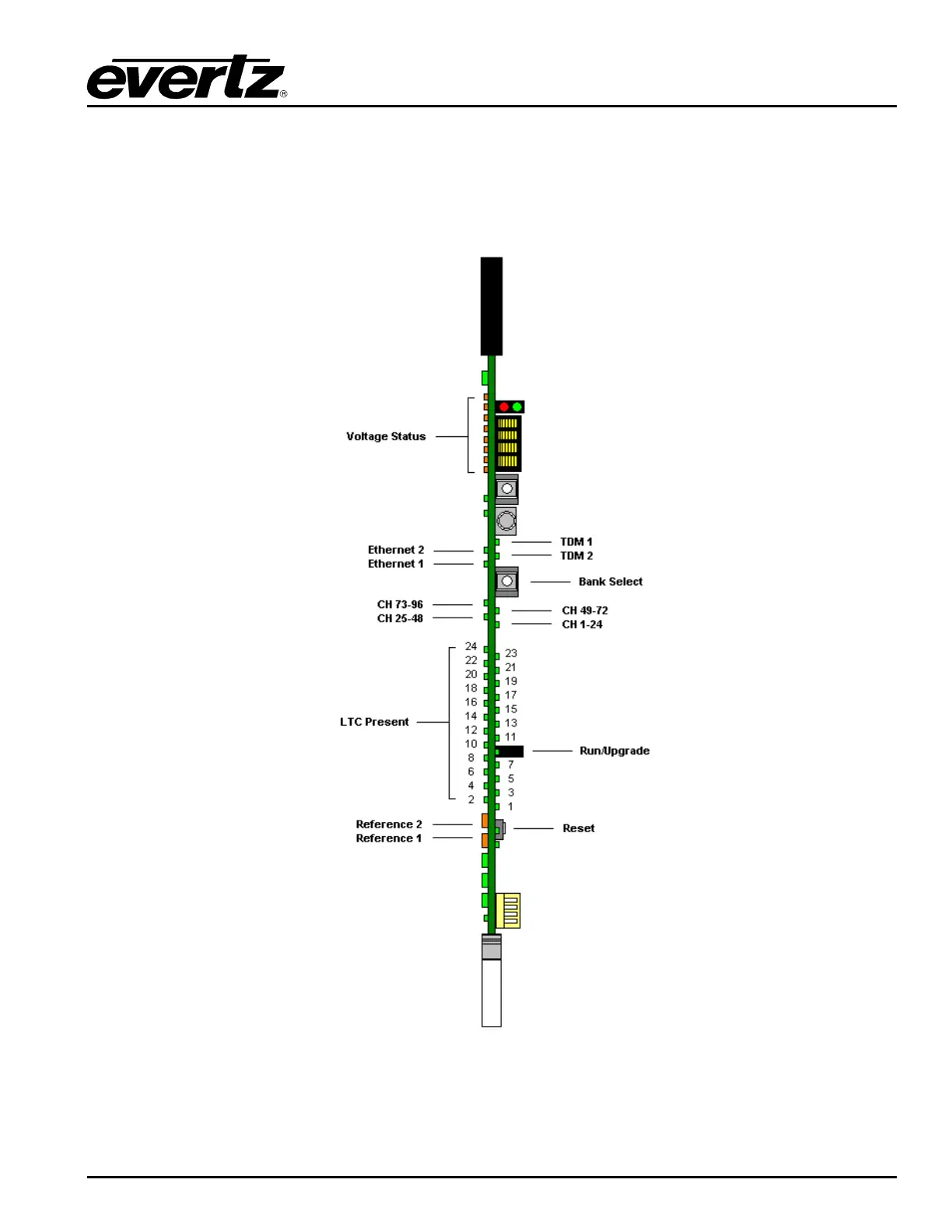

Figure
2-28: EMR-IP96 (48)-LTC Front Card Edge
