2.2.6. EMR-IP16-MADI and 3000MADI16-TDM4 MADI Input Modules
The EMR-IP16-MADI and 3000MADI16-TDM4 are MADI audio input cards for the EMR. They support 16
MADI inputs and 4 TDM outputs. Each MADI input can support both 64 channels and 56 channels MADI.
Of the 4 TDM outputs, only outputs 1 and 2 are required for operation. Outputs 3 and 4 can be used as
redundant TDM connections for systems that have more than 1 crosspoint module. TDM output 1 carries
512 audio signals corresponding to MADI inputs 1-8. TDM output 2 carries 512 audio signals
corresponding to MADI inputs 9-16.
The EMR-IP16-MADI rear panel occupies 1 slot in a frame and has DIN 1.0/2.3 connectors, while the
3000MADI16-TDM4 rear panel occupies 3 slots in a frame and has BNC connectors. Both are shown in
Figure
2-23.

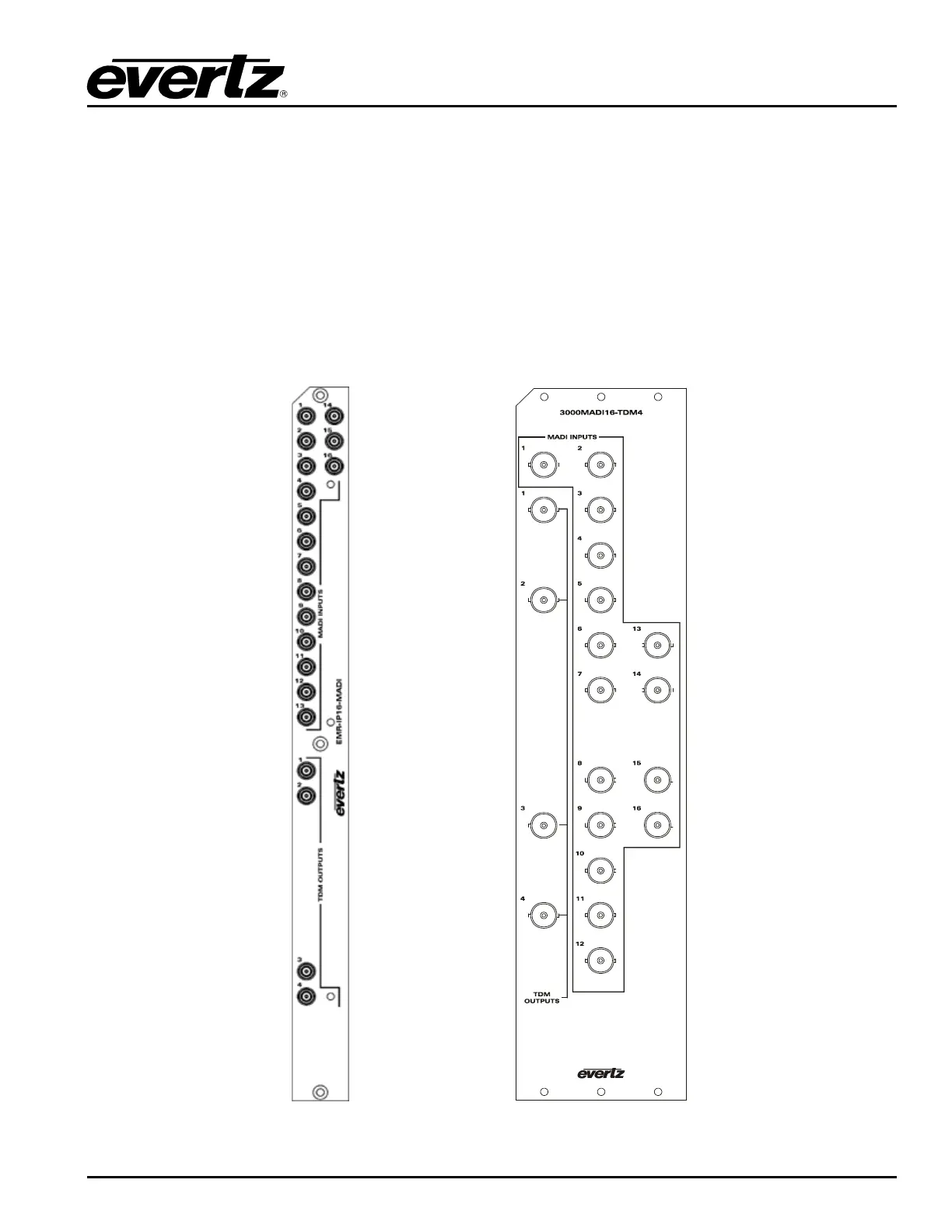

Figure 2-23: EMR-IP16-MADI (left) and 3000MADI16-TDM4 (right) Rear Plates
