evertz EMX3-FR - Figure 2-33: EMR-PR48 Rear Plate; Table 2-20: EMR-PR48 TDM Connections

EMR User's Guide
High Density Modular Audio Router (AES, Analog, MADI, TimeCode, Data)
Page 58 Revision 1.8 COMPONENT OVERVIEW
The EMR-PR48 rear panel occupies 2 slots in a frame and uses 50-pin D-Sub female connectors as
shown in Figure
2-33. Each connector supports 8 serial data ports (RS-232 or RS-422).
The EMR-PR48 rear plate also has 6 TDM outputs and 6 TDM inputs via DIN 1.0/2.3 connectors. These
connectors allow for further port expansion. The EMR-PR48 can expand to a system of 288 ports without
the need for an ADMX crosspoint and 336x336 with an ADMX crosspoint. Details of the expansion are
shown in Section
4.2.1.
RP-3000APR-DB50

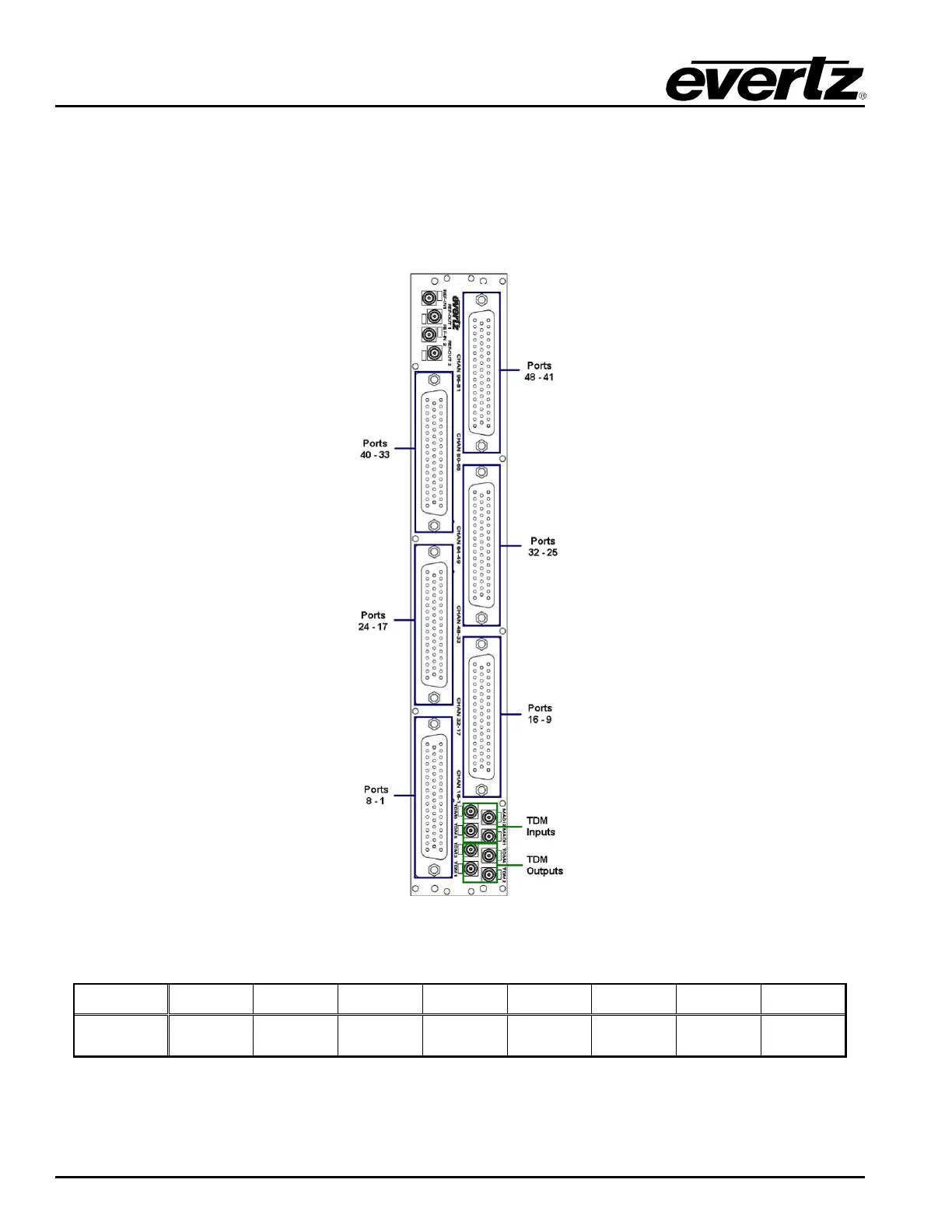

Figure
2-33: EMR-PR48 Rear Plate
Label TDM 1 TDM 3 TDM 2 TDM 4 TDM 5 TDM 6 MADI 1 MADI 2
Actual I/O
TDM
OUT 1
TDM
OUT 2
TDM
OUT 3
TDM
OUT 4
TDM IN
1
TDM IN
2
TDM IN
3
TDM IN
4
Table 2-20: EMR-PR48 TDM Connections
