EMR User's Guide
High Density Modular Audio Router (AES, Analog, MADI, TimeCode, Data)
COMPONENT OVERVIEW Revision 1.8 Page 31
2.2.4.2. Front Card Edge Controls and LEDs
The EMR-OP48-AA front card edge has some key controls and indicators that can help in the installation
and debugging processes. Figure
2-16 and Table 2-10 show the card edge and describe the expected
behavior of each component. If the status indicators do not behave as described it can be a sign of
installation or configuration issues.

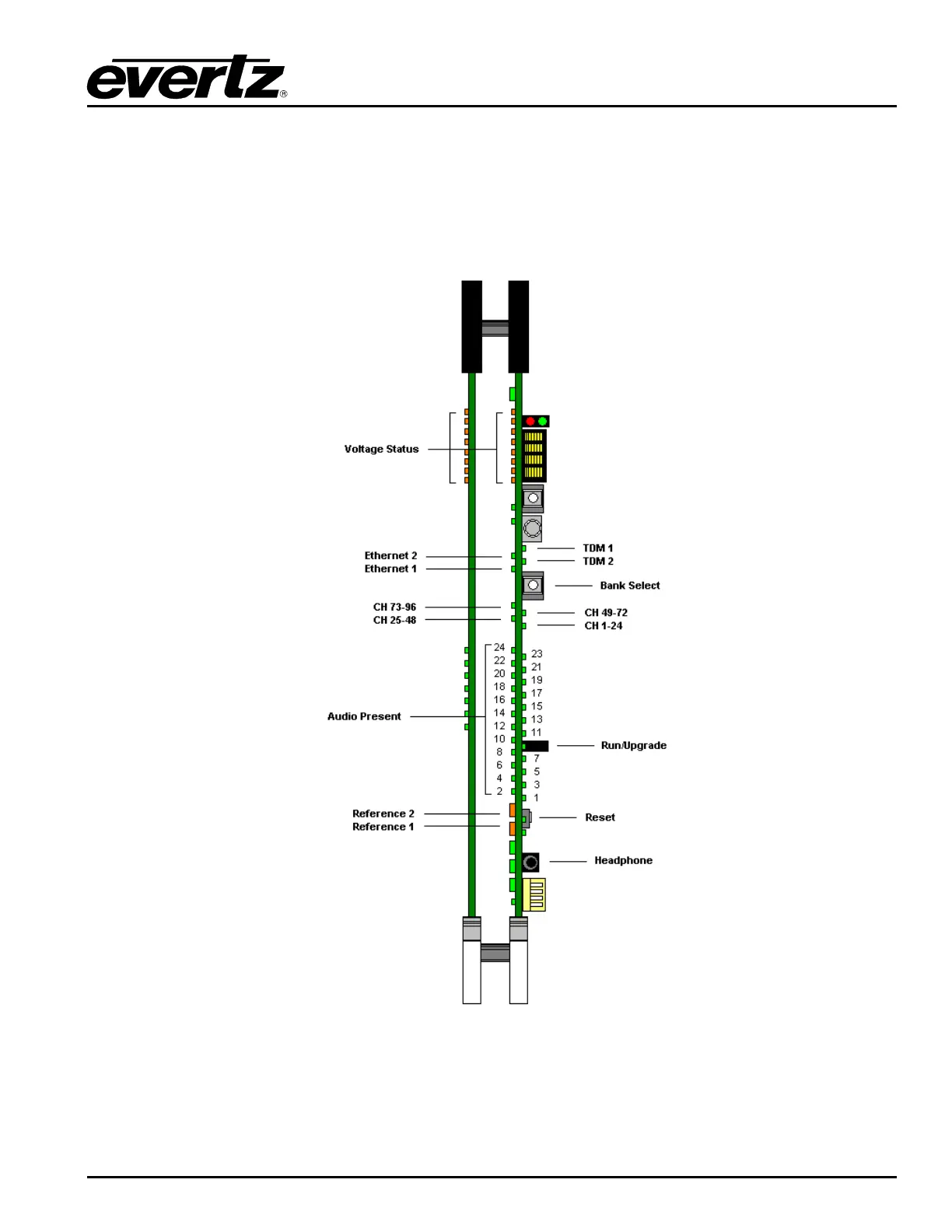

Figure
2-16: EMR-OP48-AA Front Card Edge
