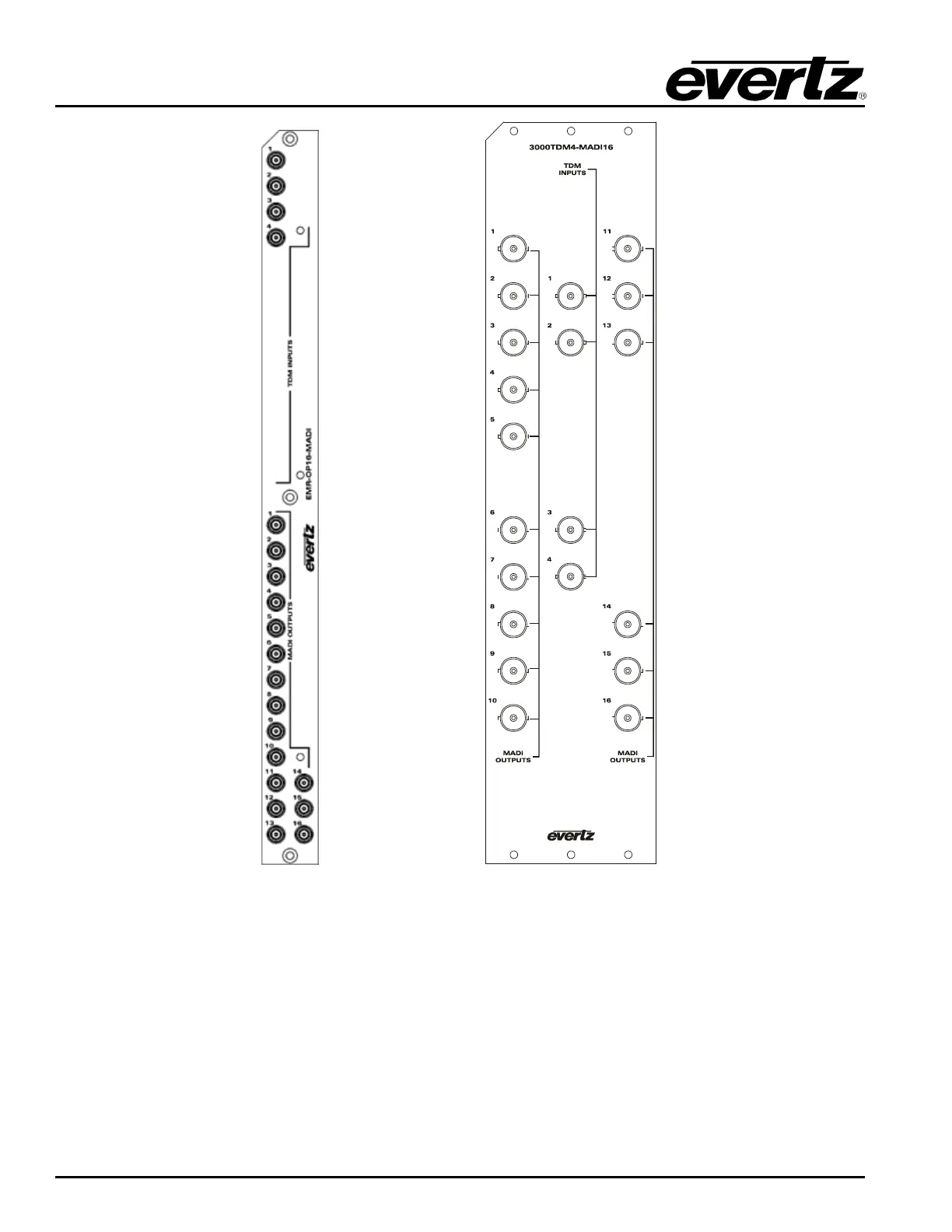

evertz EMX3-FR - Figure 2-25: EMR-OP16-MADI (Left) and 3000 TDM4-MADI16 (Right) Rear Plates

EMR User's Guide
High Density Modular Audio Router (AES, Analog, MADI, TimeCode, Data)
Page 44 Revision 1.8 COMPONENT OVERVIEW
Figure
2-25: EMR-OP16-MADI (left) and 3000TDM4-MADI16 (right) Rear Plates
