EMR User's Guide
High Density Modular Audio Router (AES, Analog, MADI, TimeCode, Data)
COMPONENT OVERVIEW Revision 1.8 Page 53

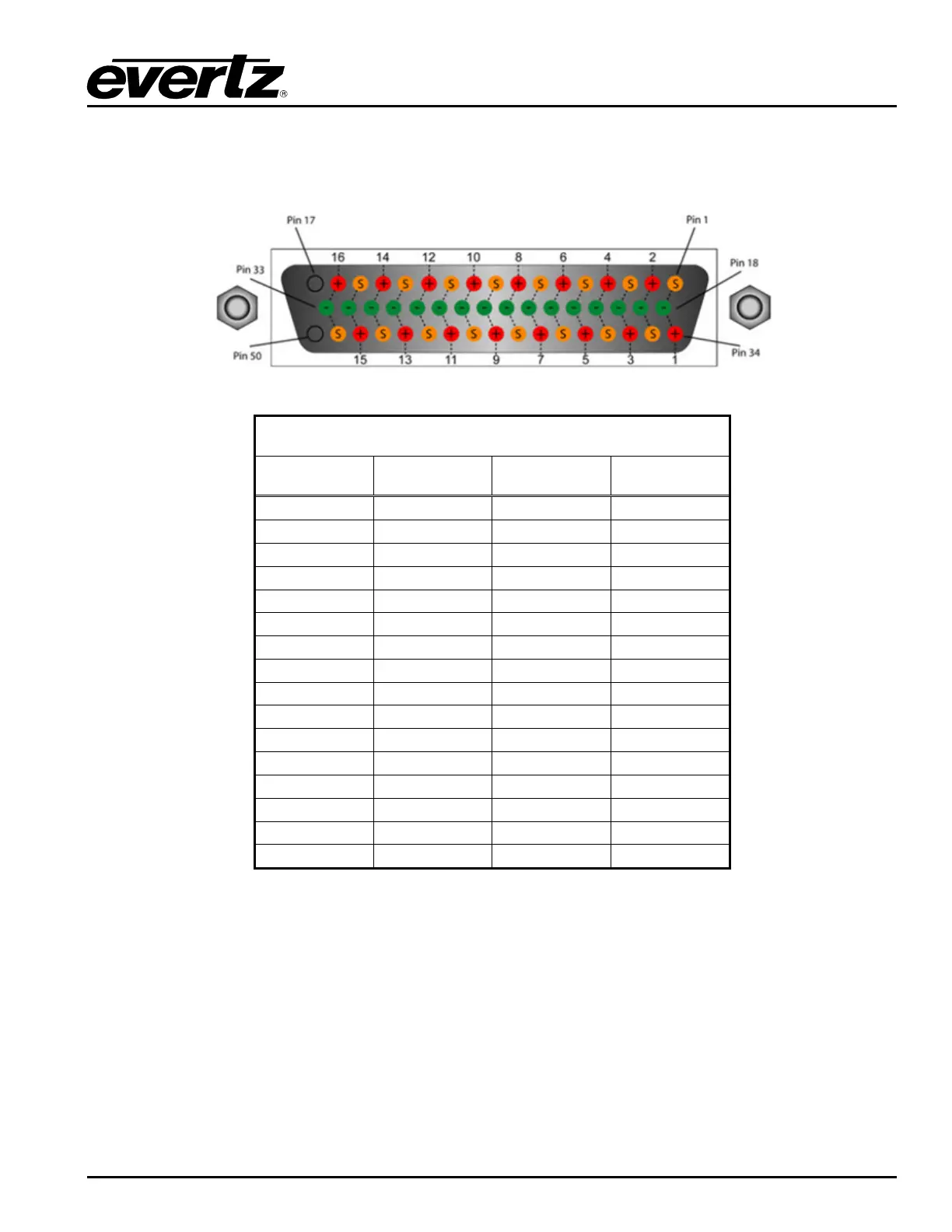

2.2.9.1. LTC Output D50 Connector – Pin Out
The EMR-OP96 (48)-LTC time code cards use female D50 connectors, with each connector carrying 16
signals. Table
2-18 outlines the pinout for the connectors.
D50 LTC Pin-Out Table
Signal +ve Pin -ve Pin Screen
1 34 18 1
2 2 19 35
3 36 20 3
4 4 21 37
5 38 22 5
6 6 23 39
7 40 24 7
8 8 25 41
9 42 26 9
10 10 27 43
11 44 28 11
12 12 29 45
13 46 30 13
14 14 31 47
15 48 32 15
16 16 33 49
Table 2-18: LTC Output Pin-Out
