17 05 2013 4365 00
PAYMENT SYSTEM INSTALLATION
therefore whoever performs the installation of it
bears the responsibility for any damage to the
machine or to objects and people deriving from the
wrong installation of the payment system.
The validator can be installed directly into the machine.
The “cashless” systems can be located inside the ma-
chine
Fit the desired payment system following the instructions
provided and make sure that:
- The programming of the related parameters is correct.
- Adjust the fixing bracket of the selector’s opening lever
in order to allow the sector to open completely;
- Adjust the coins slide according to the type of coin box
fitted.
5
2
3
4
6

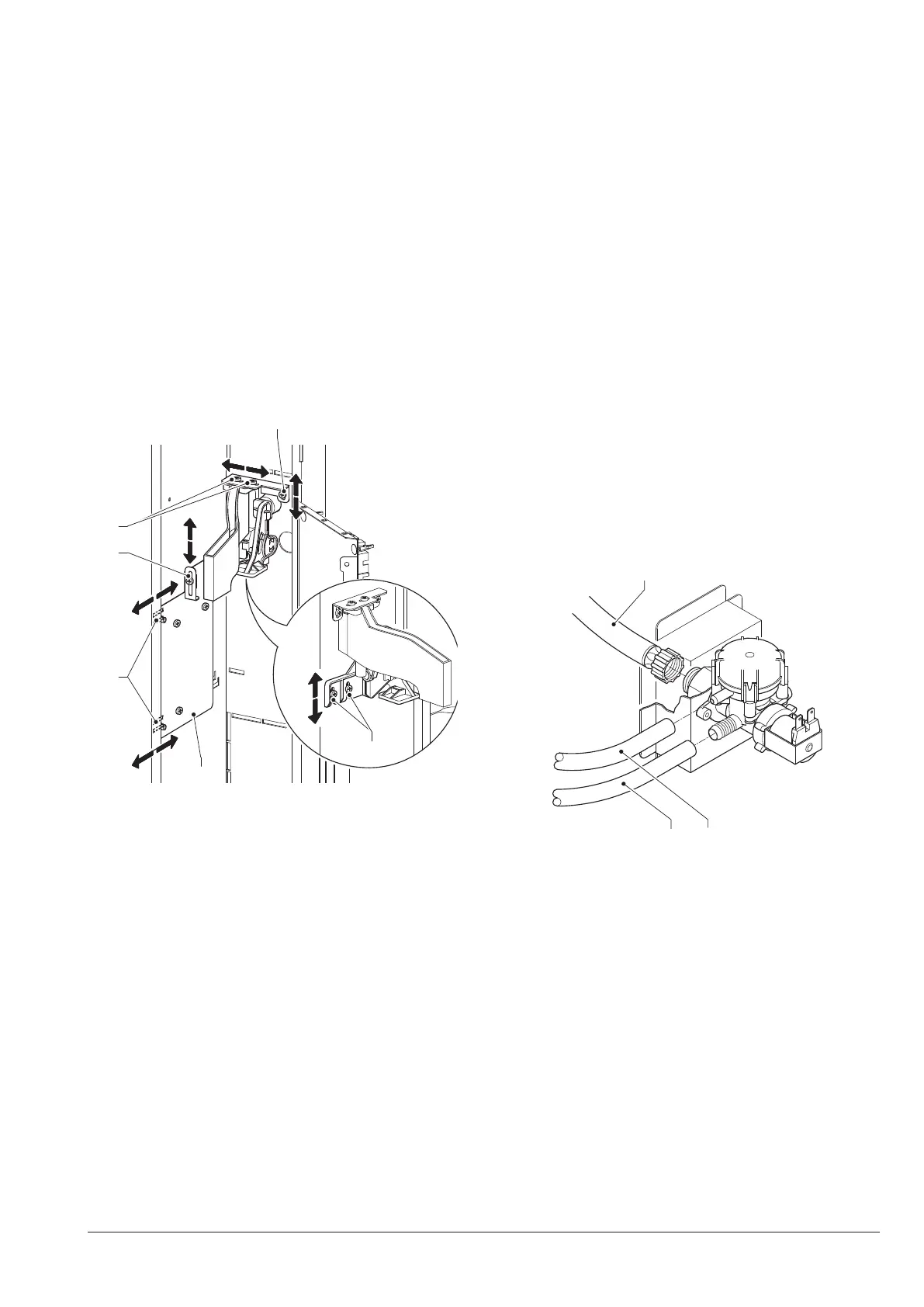

Fig. 21
1- Coin box support
2- Coin box adjustment
3- Coin box fixing bracket
4- Coins slide adjustment
5- Coins slide vertical adjustment
6- Coin recovery button adjustment
WATER SUPPLY
The water used by the vending machine is drinking wa-
ter, taking into account the regulations in force where the
machine is installed.
The machine should be connected to the drinking water
mains with water pressure between 0.05 and 0.85 MPa
(0.5-8.5 bar).
Let the water come out from the mains until it is clear and
free from dirt.
Connect the water mains to the connection of the water
inlet solenoid valve with a pipe having minimum internal
diameter of 6 mm (also available as a kit), suitable for
supporting the mains pressure and of a type suitable for
food products.
Installing a tap on the water system outside the ma-
To connect the machine to the water mains use only
Do not reuse the material that may exist.
Without filter predisposition
Connect the water mains to the ” tting of the water
inlet solenoid valve by a pipe suitable to withstand the
water mains pressure, and of a type suitable for food
(minimum internal diameter of 6 mm.)
Fig. 22
1- Water inlet pipe
2- Delivery pipe
3- Overflow pipe
