Notes on
Programming
The electronic control unit of the machine controls the
use of many functions.
The programme of the machine contains a description of
all the foreseen functions, including those which, for the
specic conguration of the model (layout), are not used.
The machine is supplied together with:
- Selections layout, which contains the selections fore-
seen for the specific model
- Flow chart of the programming menu.
Described below is a summary of the main functions
which are useful for managing the operation of the
machine, not necessarily in the order in which they are
displayed in the menu.
The software version can be updated using the appropri-
ate systems (PC, UpKey, etc.)
The display messages which show the operation in
progress are steady-on, while any action requested of
the user ashes.
The status of the machine can be in three dierent
modes.
Depending on the status in which the machine is, the
buttons of the keyboard assume dierent functions.
normal user
- Machine start-up (door closure) with the execution of
the foreseen checks.
- Operations that can be done with the door closed.
- Dispensing selection and messages to the user.
loader menu
- Detection of statistical data and execution of simple
checks on the operation and on the dispensed items.
engineer menu
- Programming of the settings and of the performances
of the machine.
OPERATION IN NORMAL USER
STATUS
During the normal operation, the display shows the mes-
sage to the user and the invitation to select the drink.
SELECT
A BEVERAGE
Sugar
- ●●●○○ +
The preselection (for example Sugar) can be dierent
depending on the layout and on the choices made
during programming.
Use, for example, the keys “Sugar -” and “Sugar +” for
adjusting the quantity of sugar in the drink
If the machine has a payment module, inserting coins or
a payment system, the available credit is displayed
SELECT
A BEVERAGE
Sugar
- ●●●○○ +
Credit € X.XX
When a selection is requested, if the credit is not enough
the display will show in sequence the price of the selec-
tion, the available credit and the residual amount to be
inserted.

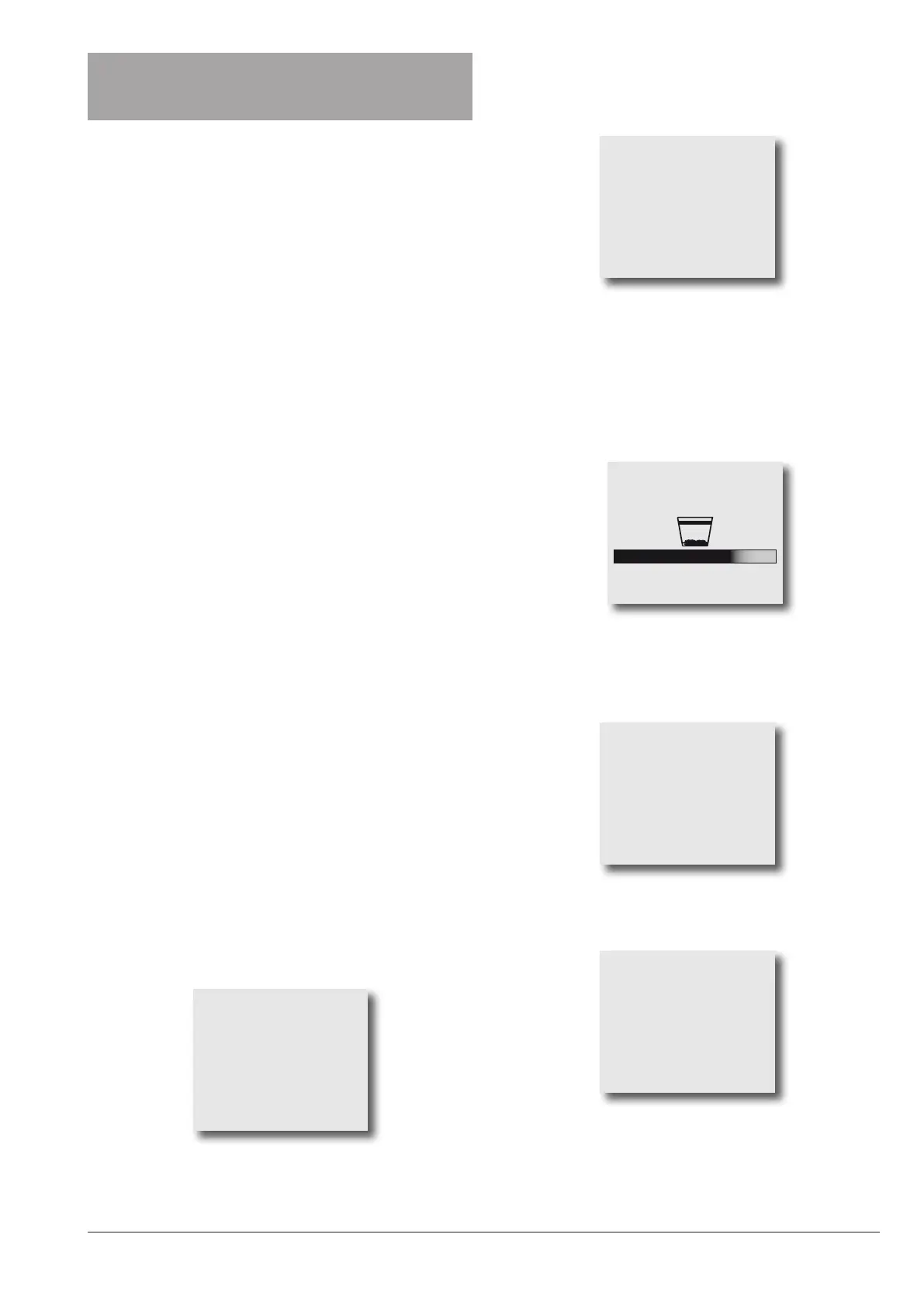

When the drink is being dispensed, an animation is
shown which indicates the stage of preparation of the
drink and only the related LED ashes.
PLEASE WAIT
In the event that an anomaly is detected by the control
system, an error message will be given, indicating the
type of problem:
OUT OF SERVICE
“fault name”
At the end of the dispensing phase, the display shows
the following message for a few seconds:
READY BEVERAGE
COLLECT
