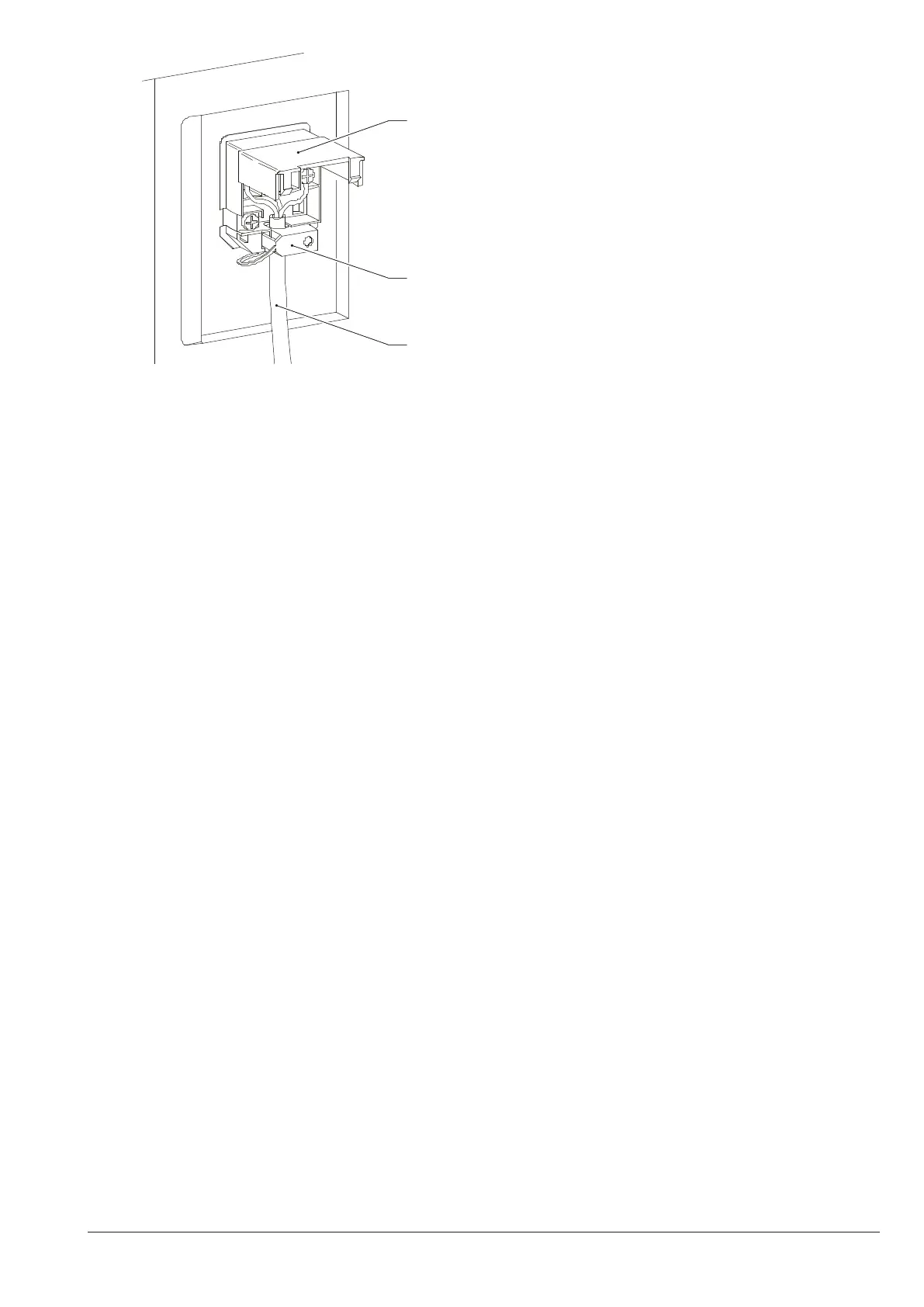

Fig. 24
1- Liftable cover
2- Lead fixing terminal
3- Power supply cable
INSTALLATION IN SERIES
The machine control system is arranged for connection
in series with other vending machines, by using appro-
priate kits.
This connection permits the use of one payment and
remote connection system only for several machines.
In case of installation in series, the machine can be
congured as “Master”, therefore assuming control of
the second machine, or as “Slave”, therefore leaving the
control to the other machine.
At the rst start-up of the machine, it is necessary to ll
the hydraulic circuit (installation).
The installing procedure varies depending on whether
the machine obtains its water supply from a tank or a
mains.
Water supply from tank
- Upon start-up; the water pump is activated for 10 sec-
onds
The display shows the “water empty” message
- Enter the “Engineer” programming mode and use the
special function “Manual installation” of the “Test” menu.
The machine performs an installation cycle
- When the installation cycle terminates, reset the fault
message “empty water”
Water supply from mains
- Upon start-up, the mains solenoid valve is opened
automatically until the air-break is filled.
- During the entire cycle, the display will show “INSTAL-
LATION”
-
ing the special “manual installation” function
At the end of the installation cycle the display shows:
- the software version of the machine
- the machine card
- the number of items dispensed (total number of strokes
if enabled)
After the initial checks, the heating cycle of the boiler will
start; after a few seconds the display shows a message
with an invitation to select the beverage.
