BOILER CONTROL RELAY
This relay controls the intervention of the instant boiler
resistance.
POWER CONTROLLER BOARD
The power controller board provides direct current to the
LEDs.
The board provides constant lighting of the aesthetics
panels
The board is positioned on the openable support of the
CPU board
J1
J2
2
1

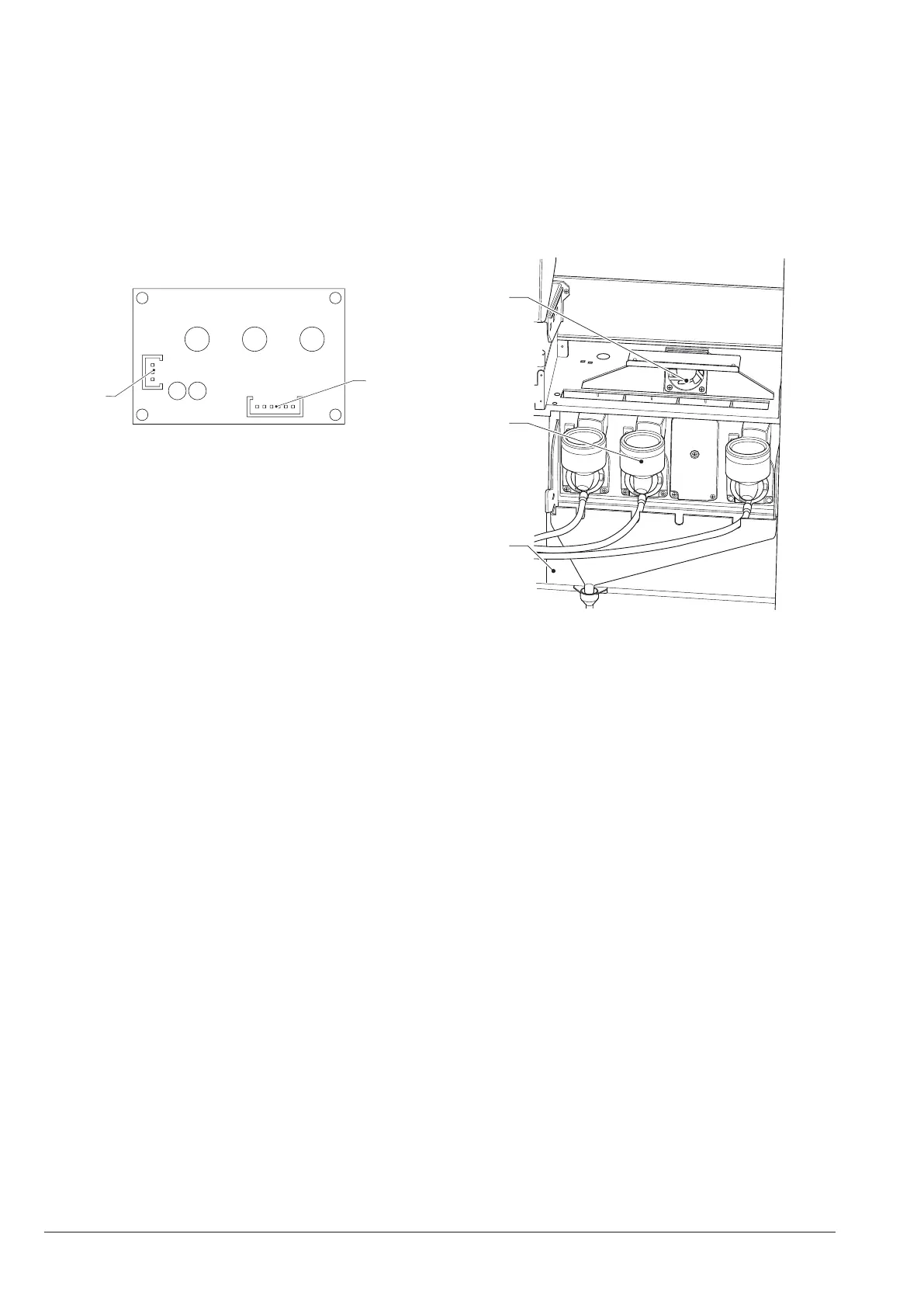

Fig. 41
1- To the CPU board
2- To the LEDs
FAN REPLACEMENT
Access to the vapor suction fan occurs from the inside of
the unit.
If for any reason it becomes necessary to intervene on
the fan, remove the instant drink containers from the
device and remove the appropriate cover
Important!
The covers need to be removed after disconnecting
the machine from the power supply.
1
2
3
Fig. 42
1- Vapor suction fan
2- Instant drinks mixer
3- Instant drink mixer cover
