EVOCA Opera - Sugar Release; Dispensing Unit

10 05 2013 4365 00
SUGAR RELEASE
For the models of vending machine which dispense the
sugar directly into the cup, it is necessary to periodically
clean the sugar release device with hot water operating
as follows:
- raise the flexible lever to release the nozzle
- pull out the dispensing nozzle
- pull out the sugar slide
- wash and carefully dry
- after cleaning, everything following the reverse order.
1
2
3
4
1
2
3
4
6 7 5
8

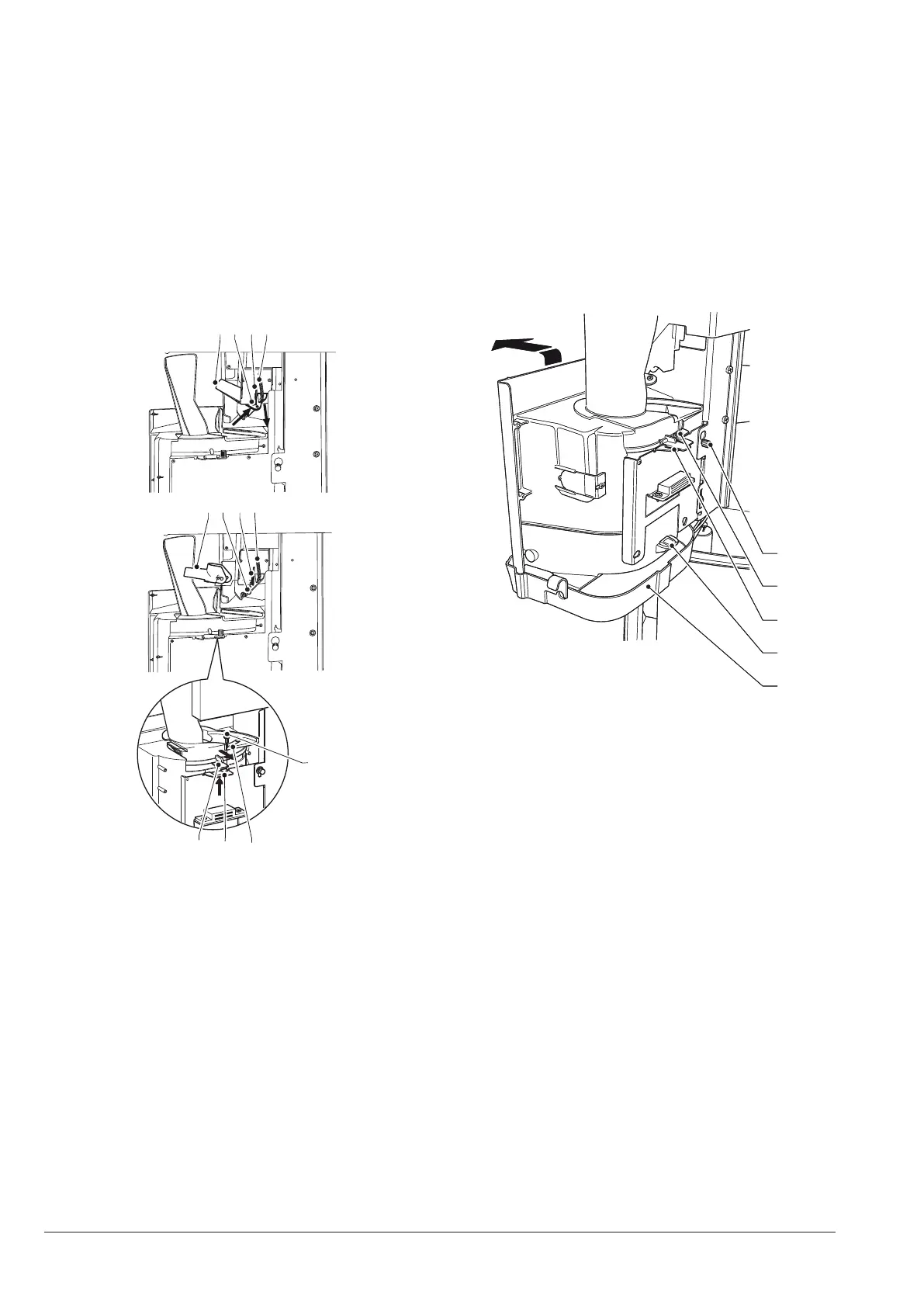

Fig. 10
1- Sugar dispensing nozzle
2- Pin
3- Flexible lever
4- Return spring
5- Glasses slide
6- Glasses slide release lever
7- Slide positioning hook
8- Slide’s saw tooth screw
DISPENSING UNIT
When cleaning the dispensing unit, it is recommended to
remove it from the machine.
- Remove the saw tooth screws which block the unit;
- Unfasten the unit by acting on the fixing fins;
- Wash with a solution of neutral detergent, being par-
ticularly careful with the covers of the cup sensor and of
the unit lighting LEDs.
Wash with a solution of neutral detergent, being particu-
larly careful with the covers of the cup sensor and of the
unit lighting LEDs.
5
4
3
2
1
Fig. 11
1- Dispensing unit tank
2- Dispensing unit grid hook
3- Glasses slide’s locking flap
4- Glasses slide’s saw tooth screw
5- Cutter for fixing dispensing unit group
Please note To clean the single grid, remove the dis-
pensing unit tank and then, acting on the rear hook,
remove the grid.
