Machine description
PHOENIX 333 PROGRESS KG
Item No.: 099-005073-EWM01 17

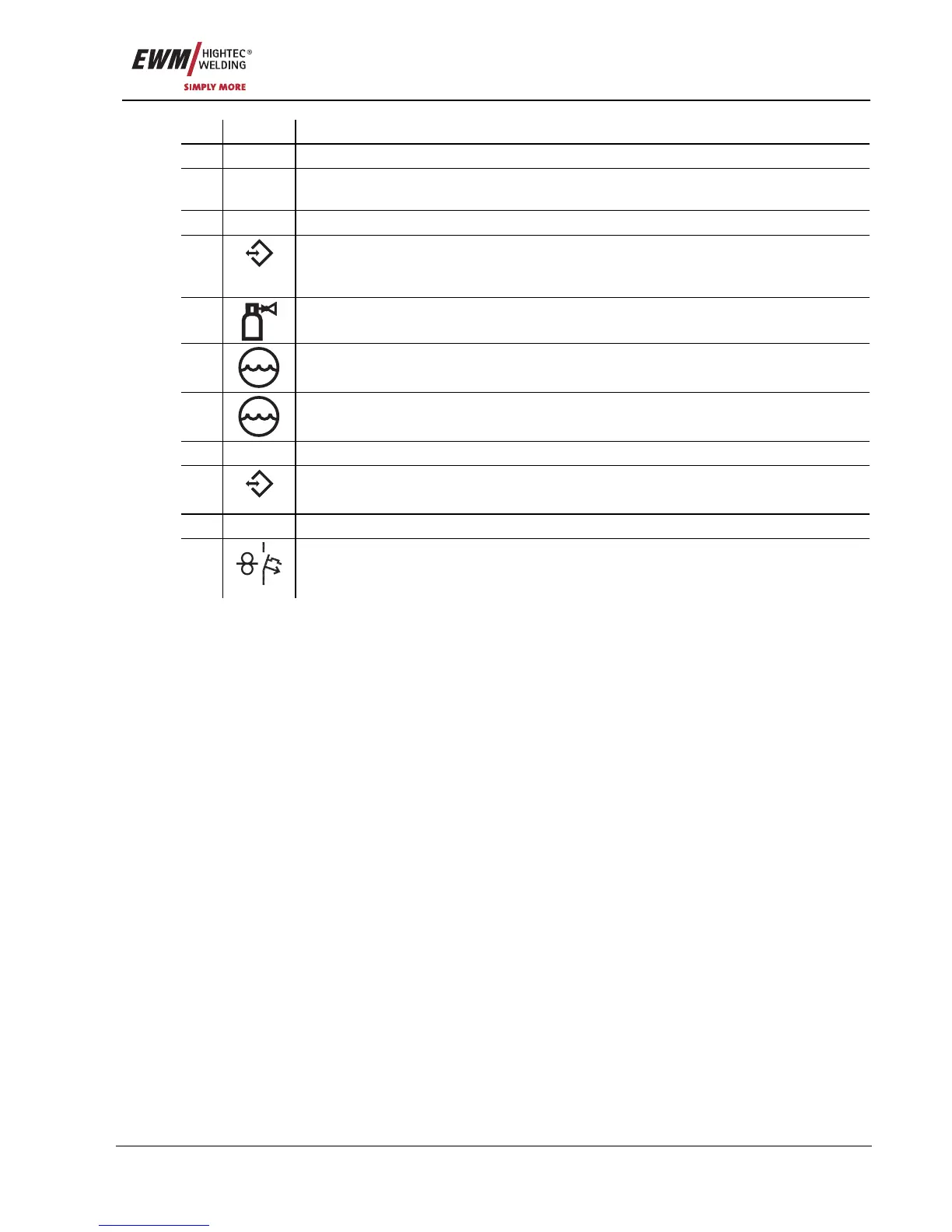

Item Symbol Description 0
1 Slide latch, lock for the protective cap
2 Wire spool inspection window
Check wire supply
3 Cover for wire delivery unit and operating elements
4
digital
7-pole connection socket (digital)
For connecting digital accessory components (documentation interface, robot interface
or remote control, etc.).
5
G¼” connecting nipple
Shielding gas connection on the pressure reducer
6
4-pole connection socket
Cooling unit voltage supply
7
8-pole connection socket
Cooling unit control lead
8 Cooling air outlet
9
analog
19-pole interface for mechanised welding (analogue), optional
(see Function specification chapter)
10 Strain relief with mains connection cable
11
42V/4A
"Automatic cutout" key button
Wire feed motor supply voltage fuse
(press to reset a triggered fuse)
