Commissioning
MIG/MAG welding
72 Item No.: 099-005073-EWM01
6.7.2 Connection for workpiece lead
2
1

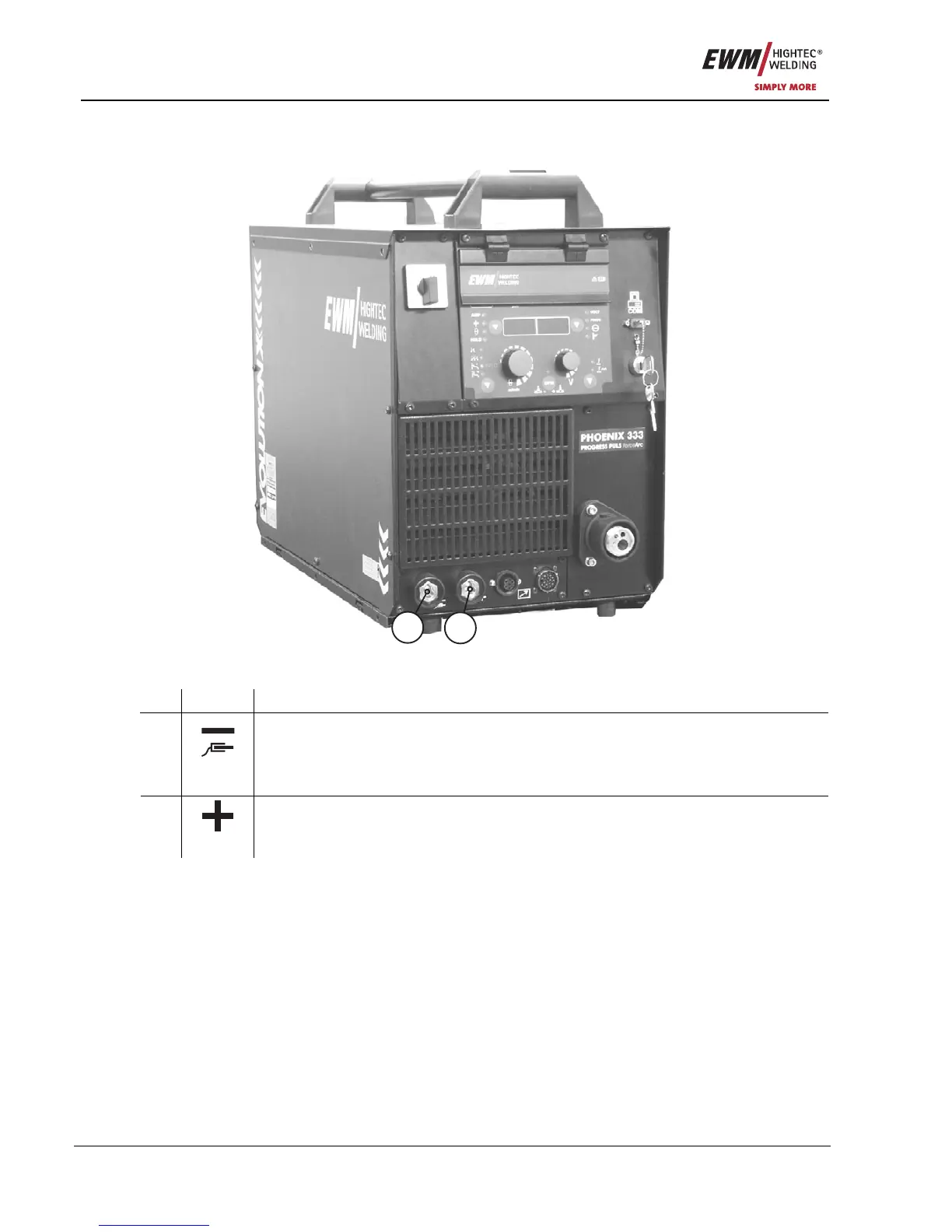

Figure 6-3
Item Symbol Description 0
Connection socket, “-” welding current
• MIG/MAG welding: Workpiece connection
• MMA welding: Workpiece or electrode holder connection
1
• TIG welding: Welding current connection for welding torch
Connection socket, “+” welding current
• MMA welding: Workpiece or electrode holder connection
2
• TIG welding: Workpiece connection
• Insert cable plug on the workpiece lead into the "-" welding current socket and lock by turning to the
right.
