EWM PHOENIX 333 PROGRESS PULS forceArc - Shielding Gas Supply

Commissioning
Shielding gas supply
80 Item No.: 099-005073-EWM01
6.10 Shielding gas supply
6.10.1 Connecting the shielding gas supply
1

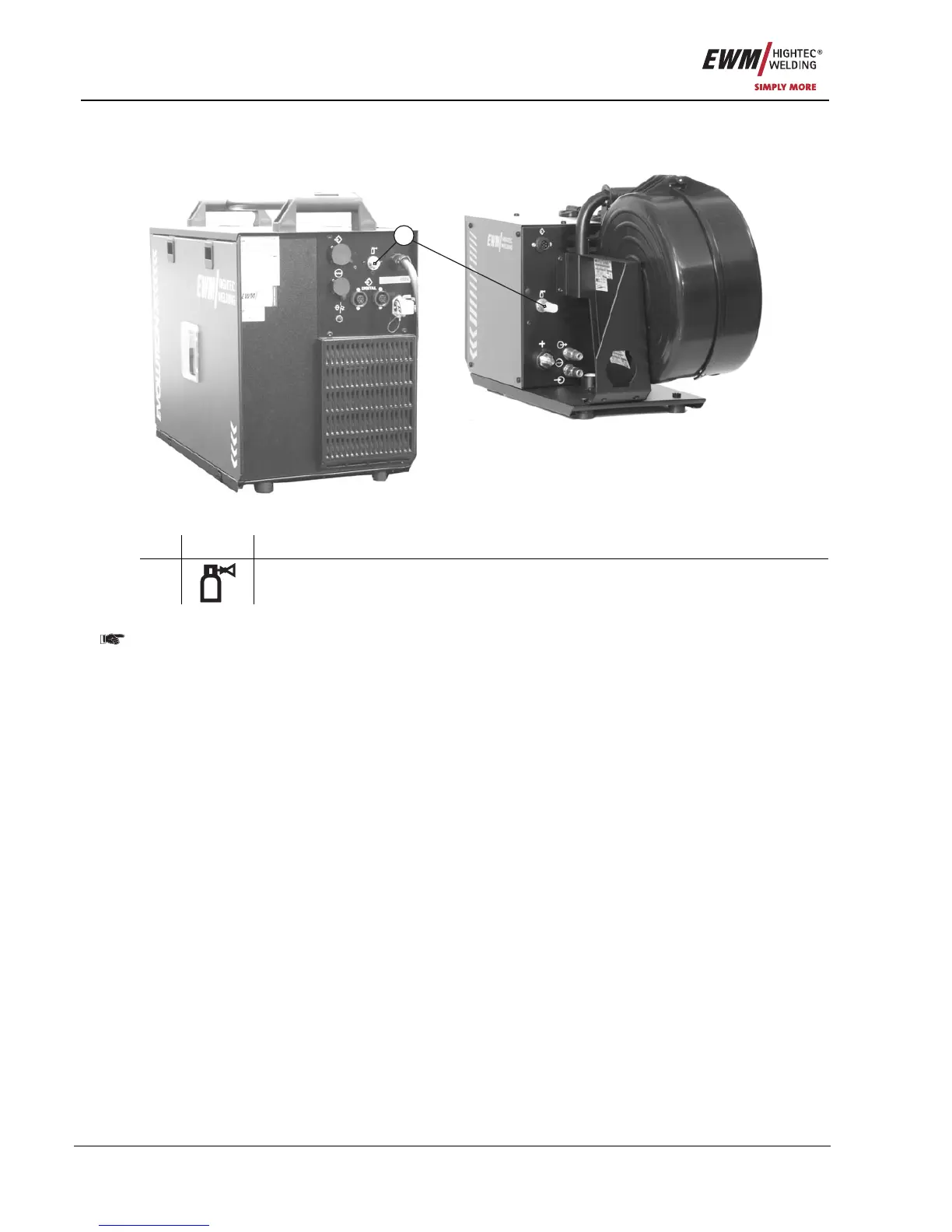

Figure 6-11
Item Symbol Description 0
1
G¼” connecting nipple
Shielding gas connection on the pressure reducer
Before connecting the pressure reducer to the gas cylinder, open the cylinder valve briefly to
blow out any dirt.
• Place the shielding gas cylinder into the relevant cylinder bracket.
• Secure the shielding gas cylinder using a securing chain.
• Tighten the pressure reducer screw connection on the gas bottle valve to be gas-tight.
• Tighten gas hose on pressure reducer to be gas tight.
• Screw the gas hose connection nipple onto the G¼" connection nipple.
