Commissioning
MMA welding
Item No.: 099-005073-EWM01 79

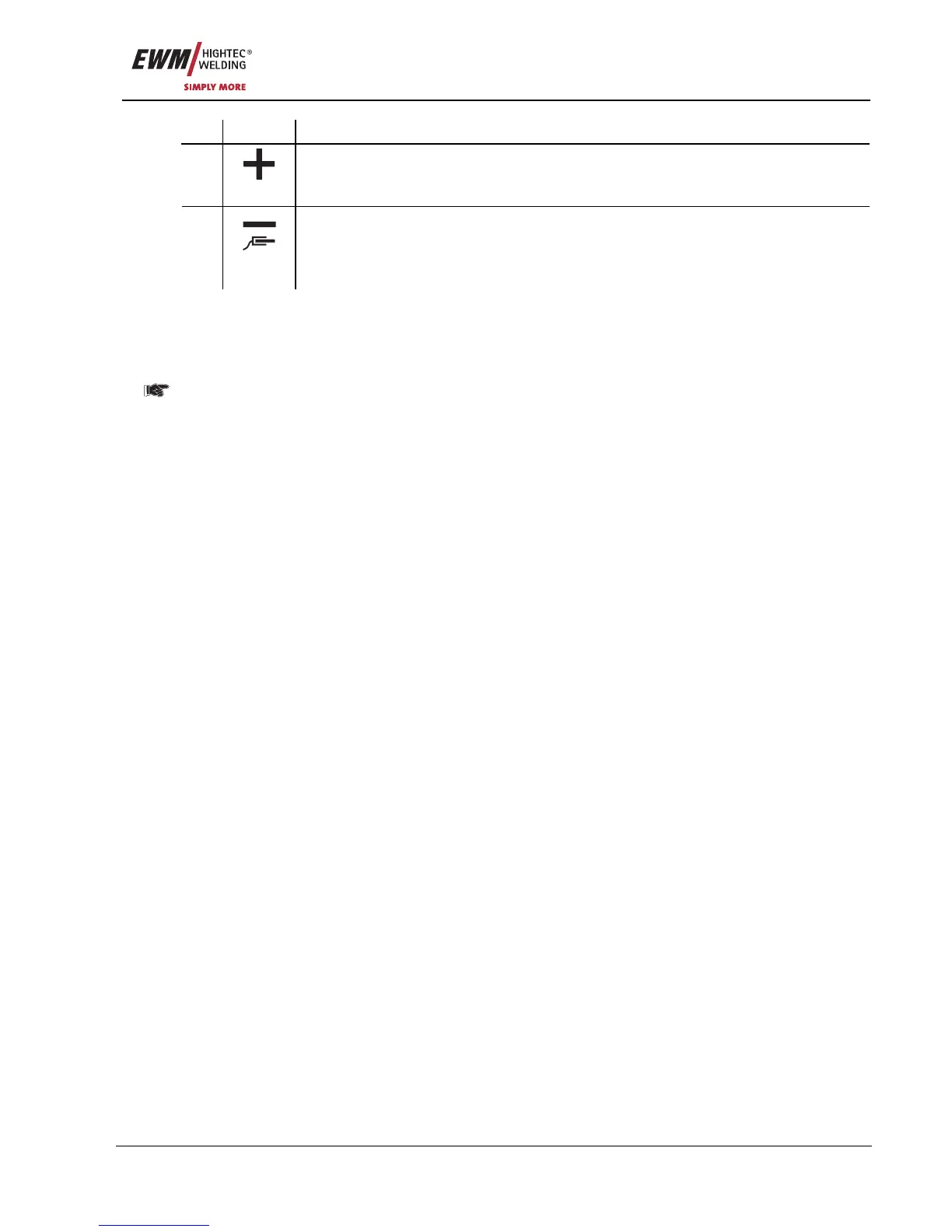

Item Symbol Description 0
Connection socket, “+” welding current
• MMA welding: Workpiece or electrode holder connection
1
• TIG welding: Workpiece connection
Connection socket, “-” welding current
• MIG/MAG welding: Workpiece connection
• MMA welding: Workpiece or electrode holder connection
2
• TIG welding: Welding current connection for welding torch
• Insert cable plug of the electrode holder into either the "+" or "-" welding current connection socket and
lock by turning to the right.
• Insert cable plug of the workpiece lead into either the "+" or "-" welding current connection socket and
lock by turning to the right.
Polarity depends on the instructions from the electrode manufacturer given on the electrode
packaging.
