Inspecting Fiber Ends
Fiber Inspection Probe 65
Inspecting Multiple Fiber Ends (MF-Ready Probes Only)
The focus indicator, which is displayed in the left part of the main window,
shows whether the current view is optimized for a capture. A green
indicator shows a picture that can be captured and analyzed. Analysis will
be more difficult with a yellow indicator, and impossible with a red
indicator. A black bar displays the peak focus level.
For more information on analyses, see Analyzing Captures on page 83.

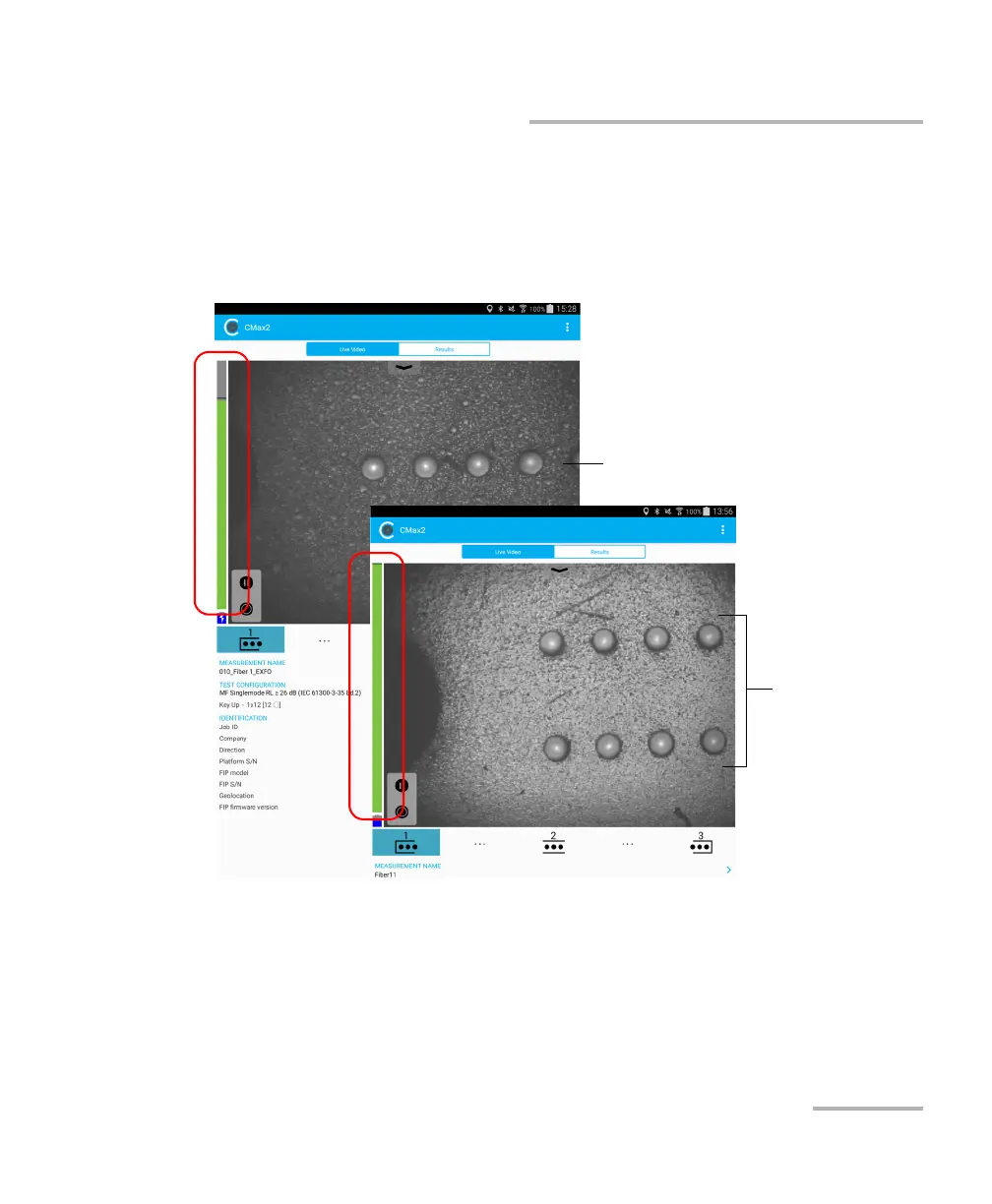

Single-row multifiber connector
Dual-row multifiber
connector
