Inspecting Fiber Ends
66 FIP-400B
Inspecting Multiple Fiber Ends (MF-Ready Probes Only)
To inspect fiber ends (multiple fibers):
1. Install a removable nozzle on the MF-Ready probe (see Changing the
FIP Nozzle (MF-Ready Probes Only) on page 28 for details).
2. Insert the connector into the removable nozzle.
3. Start ConnectorMax2 Mobile if it is not already started.
4. Configure the automatic file naming as needed (see Setting up
Autonaming on page 41 for details).
5. Enable or disable the feature allowing you to stop an inspection as
soon as a fail status is detected. See Stopping the Analysis Process on
First Fail on page 54 for details.

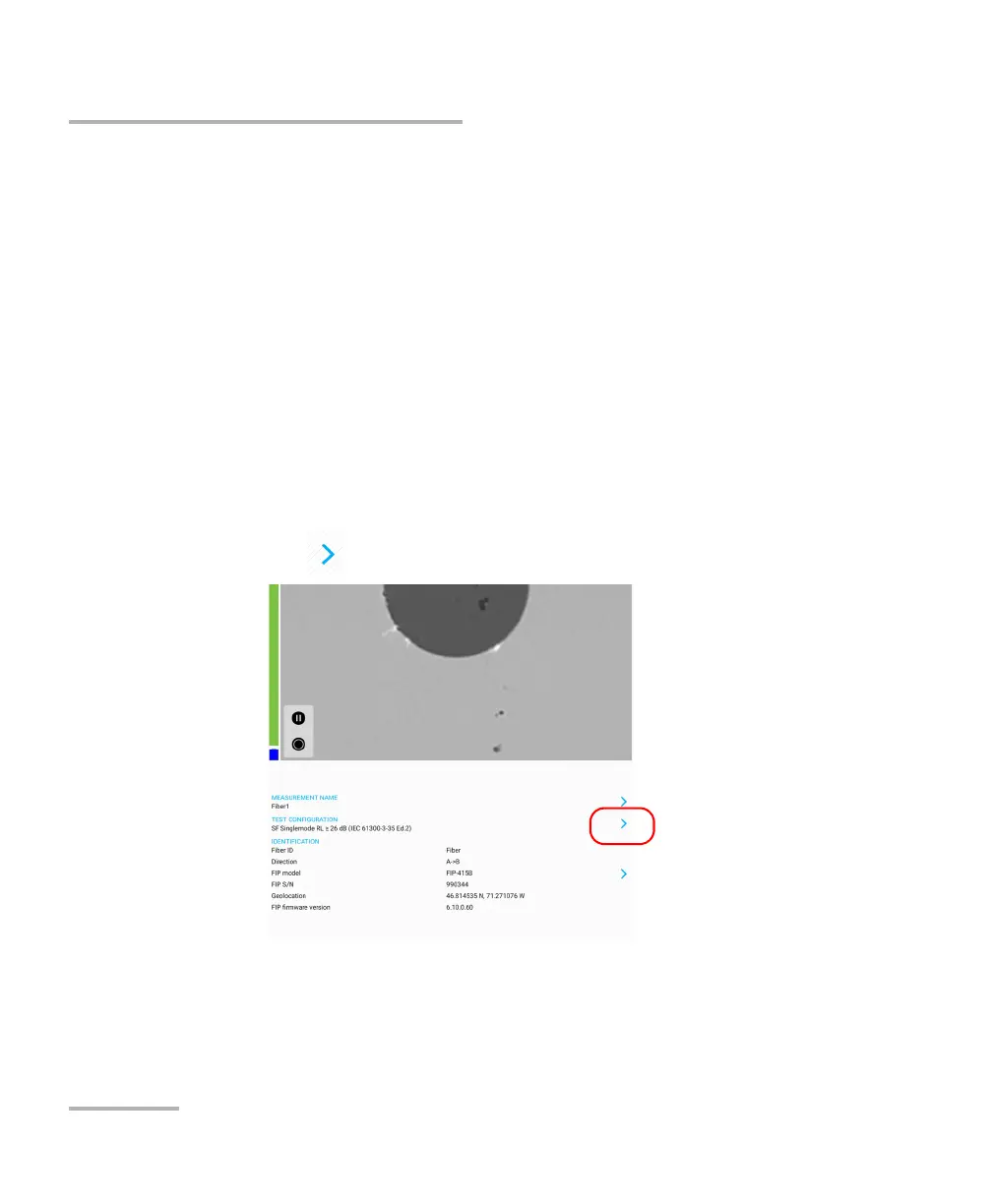

6. In live video mode, choose the multiple fiber connector, as shown
below:
6a. Tap at the end of the Test Configuration row.
